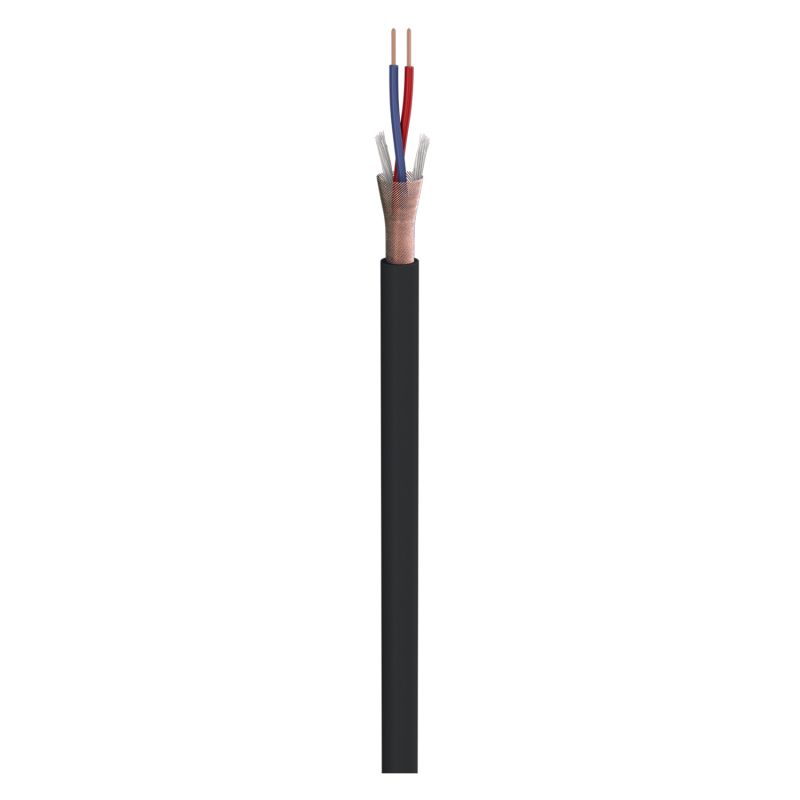

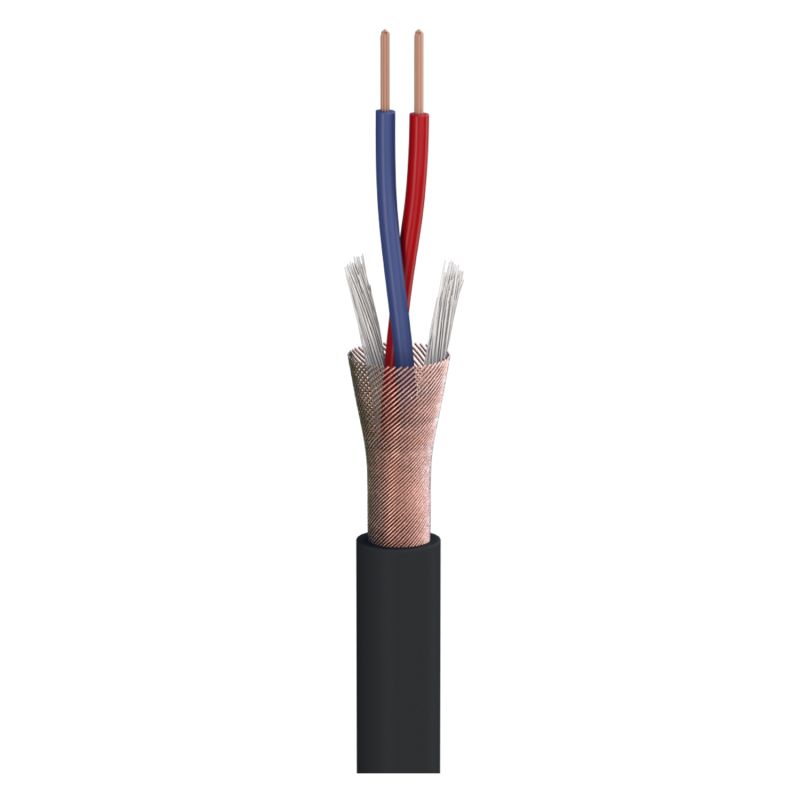

Stage 22 Highflex
One thick coat…
Protects the inner structure against mechanical strain such as pulling, tearing and knotting. This is why we gave STAGE 22 a thick outer jacket of 6,40 mm. But also the electrical values and the technical construction are very presentable: the STAGE 22 has a low capacitance and high bending cycles, provided by the super thin, tightly stranded single wires. The shielding of bare Cu wires has an optical coverage of 99 % (instead of the otherwiseusual 85 %). The STAGE 22 is therefore the ideal cable for stage, homerecordists, renters and ELA technicians. The STAGE 22 is a very inexpensive cable, but you won’t have to accept any trade-offs.
Advantages:
- High transmission quality due to the usw of fine stranding
- Very rugged owing to the thick, soft PVC jacket
- Good shielding due to dence helical copper mesh screen
- High flexibility makes it easy to reel
- Affordable price
Miscellaneous:
- without cable printing
Application:
- Stage application
- Home recording
| Article number: | 200-0001NE |
|---|---|
| Name: | Stage 22 Highflex |
| EAN: | 4049371001847 |
| Properties: | Analog, OFC oxygen free copper |
| Application area: | Installation, Mobile outdoor / indoor, Stage / live |
| Application: | Microphone Cable |
| Colour: | black |
| Signal transmission: | symmetrical |
| Construction: | (2LI2Y0,22mm²)DY |
| Jacket material: | PVC |
| Jacket Ø [mm]: | 6,40 |
| Jacket Ø [“]: | 0.252 |
| Number of Channels (audio): | 1 |
| Inner conductor (audio): | 2 |
| Inner conductor (audio) [mm²]: | 0,22 |
| Inner conductor (audio) [sqin]: | 0.0003 |
| Inner conductor Ø (audio) [mm]: | 0,53 |
| Inner conductor Ø (audio) [“]: | 0.0209 |
| AWG (audio): | 24 |
| Shielding: | Copper spiral shielding with 0.10 mm indiv. strands |
| Shielding factor [%]: | 99 |
| Copper strands (audio): | 28 |
| Copper strand Ø (audio) [mm]: | 0,10 |
| Copper strand Ø (audio) [“]: | 0.0039 |
| Weight per 1 m [g]: | 44 |
| Weight at 1000 ft. [lbs]: | 29.6083 |
| UV-resistant: | yes |
| Fire load per m [kWh]: | 0,22 |
| Style variant: | round |
| Packing: | 100 m spool, 500 m spool |
| Temperature min. [°C]: | -20 |
| Temperature max. [°C]: | 70 |
| Width [mm]: | 6,4 |
| Width [“]: | 0.252 |
| Height [mm]: | 6,4 |
| Height [“]: | 0.252 |
| Capac. cond./cond. per 1 m (audio) [pF]: | 68 |
| Capacity wire/wire at 1 ft. (audio) [pF]: | 20.7264 |
| Capac. cond./shield. per 1 m (audio) [pF]: | 130 |
| Capacity wire/electic screen at 1 ft. (audio) [pF]: | 39.624 |
| Impedance [Ω]: | 100 |
| Insulation resist. per 1 km [GΩ]: | 1 |
| Insulation resist. per 1000 feet [GΩ]: | 0.3048 |
| Insulation resist. per 1 km (audio) [GΩ]: | 1 |
| Insulation resist. per 1000 feet (audio) [GΩ]: | 0.3048 |
| Conductor resistance per 1 km [Ω]: | 87 |
| Conductor resistance per 1000 ft. [Ω]: | 26.5176 |
| Shield. resistance per 1 km [Ω]: | 30 |
| Shield. resistance per 1000 ft. [Ω]: | 9.144 |
| BPVo-Euroclass: | Fca |
