Article number: | 100-0451-24 |
---|---|
Name: | SC-Quantum QMC24 |
EAN: | 4049371001045 |

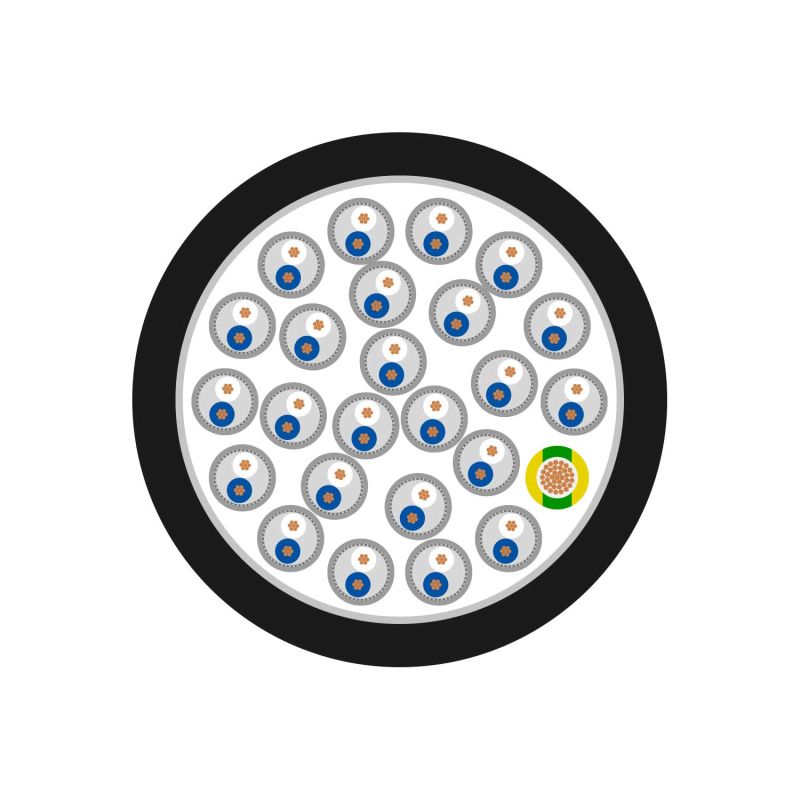

Construction: | [24(2LI2Y0,14mm²)DY+(0,5mm²)Y]Y |
Jacket Ø [mm]: | 21,50 |
Jacket Ø [“]: | 0.8465 |
Number of Channels (audio): | 24 |
Weight per 1 m [g]: | 550 |
Weight at 1000 ft. [lbs]: | 370.1038 |
Fire load per m [kWh]: | 1,5 |

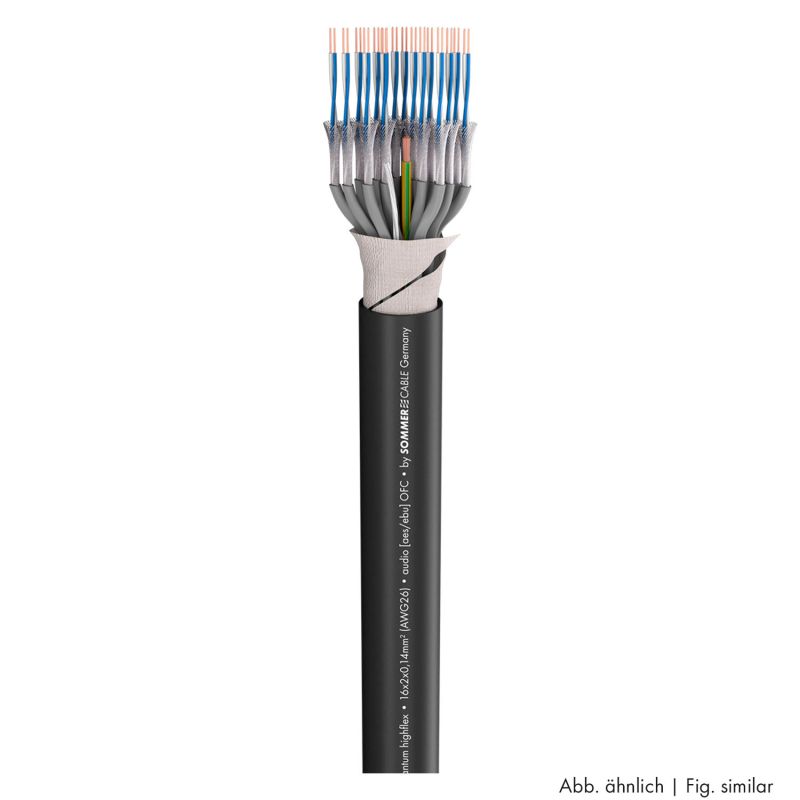

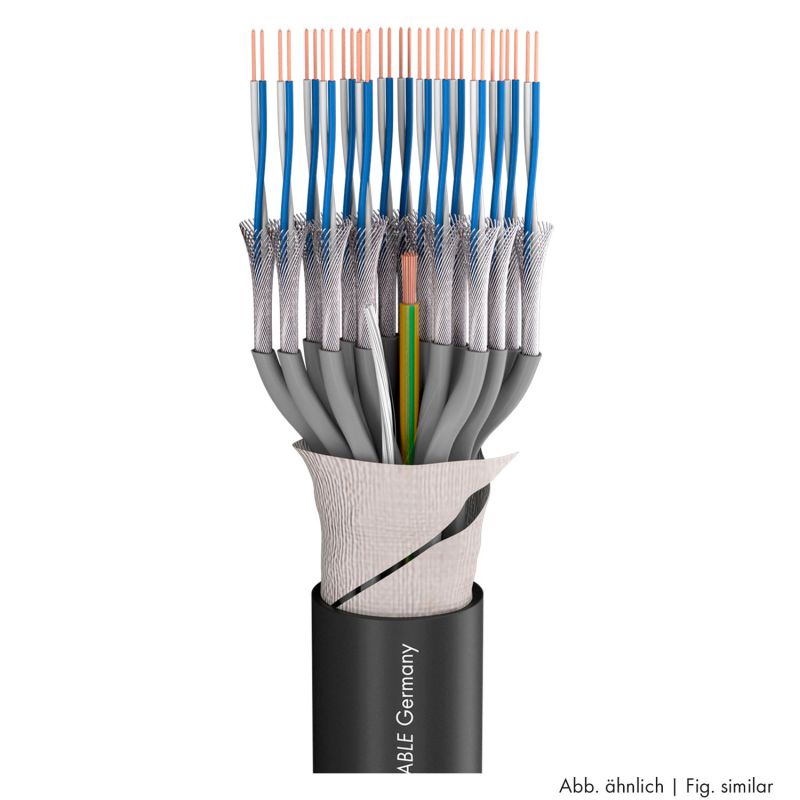

SC-Quantum QMC 24
A true allrounder…
because it could not be any longer, faster or more flexible. The SC-Quantum QMC is just the cable that all “bending radius fetishists“ like event technicians, musicians and ambitious live sound people have always been dreaming of! The SC-Quantum QMC is absolutely torsionfree, i.e. it can be wound in a figure of “8“ easily and will not twist when winding or unwinding it.
Not only the S-PVC-jacket, which is cold-resistant down to –30 °C and notch-resistant, feels soft – due to the
superfine 0,07 mm (!) individual copper litz and the PE-insulated wire insulation, even the interior is wonderfully supple and unbreakable. From the 8-pair version upward we have included an extra yellow/green protective earth wire to provide for added stability and safety (PE = protective earth).
The electrical and mechanical data are likewise remarkable: each wire pair is additionally tube-insulated, numbered and shielded by a helical Cu mesh screen with a 99 % coverage.
Go figure this: the SC-Quantum QMC stands out with its low 45 pF wire/wire capacitance and will remain 110 Ω (AES/EBU) conform for several hundred metres!
The wire pair diameter is perfectly suitable for direct
mounting (e.g. of an XLR connector). The interior is
protected against adverse influences by a highly flexible
PVC jacket with a wall thickness of almost 2 mm.
There has never been a cable with such electrical and
mechanical values for such a low price!
Advantages:
- Each wire pair is individually insulated and shielded by a helical Cu mesh ( coverage)
- Very low wire/wire capacitance
- Highly flexible and reelable without twisting
- In compliance with AES/EBU ()
- Affordable price
Application:
- Professional stage and live multicore for separate or central earthing
- Creation of highly flexible studio looms, analogue and digital
- Permanent Installation
