| Article number: | 320-0061 |
|---|---|
| Name: | SC-Onyx 2008 |
| EAN: | 4049371004695 |
| Properties: | Analog, OFC oxygen free copper |
| Application area: | Installation, Studio / Broadcast |
| Application: | Patch & Instrument Cable |
| Colour: | black |
| Signal transmission: | asymmetrical |
| Construction: | LI2YDY2x0,08mm² |
| Jacket material: | PVC |
| Number of Channels (audio): | 2 |
| Inner conductor (audio): | 1 |
| Inner conductor (audio) [mm²]: | 0,08 |
| Inner conductor (audio) [sqin]: | 0.0001 |
| Inner conductor Ø (audio) [mm]: | 0,32 |
| Inner conductor Ø (audio) [“]: | 0.0126 |
| AWG (audio): | 28 |
| Shielding: | Copper spiral shielding |
| Shielding factor [%]: | 90 |
| Copper strands (audio): | 10 |
| Copper strand Ø (audio) [mm]: | 0,10 |
| Copper strand Ø (audio) [“]: | 0.0039 |
| Conductor insulation material: | PE-HD |
| Weight per 1 m [g]: | 27 |
| Weight at 1000 ft. [lbs]: | 17.4958 |
| UV-resistant: | yes |
| Fire load per m [kWh]: | 0,2 |
| Style variant: | twin |
| Packing: | 100 m spool |
| Temperature min. [°C]: | -20 |
| Temperature max. [°C]: | 70 |
| Width [mm]: | 5,9 |
| Width [“]: | 0.2323 |
| Height [mm]: | 2,6 |
| Height [“]: | 0.1024 |
| Capac. cond./shield. per 1 m (audio) [pF]: | 120 |
| Capacity wire/electic screen at 1 ft. (audio) [pF]: | 36.576 |
| Insulation resist. per 1 km [GΩ]: | 1 |
| Insulation resist. per 1000 feet [GΩ]: | 0.3048 |
| Insulation resist. per 1 km (audio) [GΩ]: | 1 |
| Insulation resist. per 1000 feet (audio) [GΩ]: | 0.3048 |
| Conductor resistance per 1 km [Ω]: | 220 |
| Conductor resistance per 1000 ft. [Ω]: | 67.056 |
| BPVo-Euroclass: | Fca |

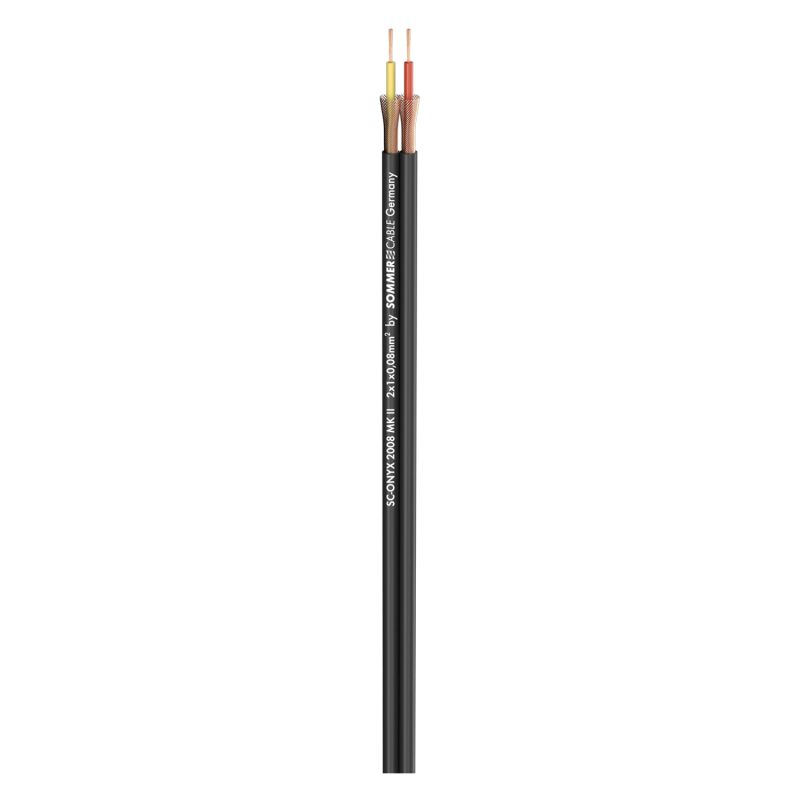

SC-Onyx 2008
The twin cable…
is similar in design and quality to the TRICONE MKII, but a little thinner due to the twin construction. It is well-suited for manufacturing hifi cables, adapters and for permanent installation. And it fits nearly all jack and RCA connectors. The SC-Onyx 2008 can be spliced at the centre of the cable. Each wire has its own helical copper mesh screen plus a thick jacket. The insulation is marked in white and yellow. The SC-Onyx 2008 is very small in diameter which makes it ideal for fitting mini jack connectors.
Advantages:
- Very flexible because of its fine single litz design

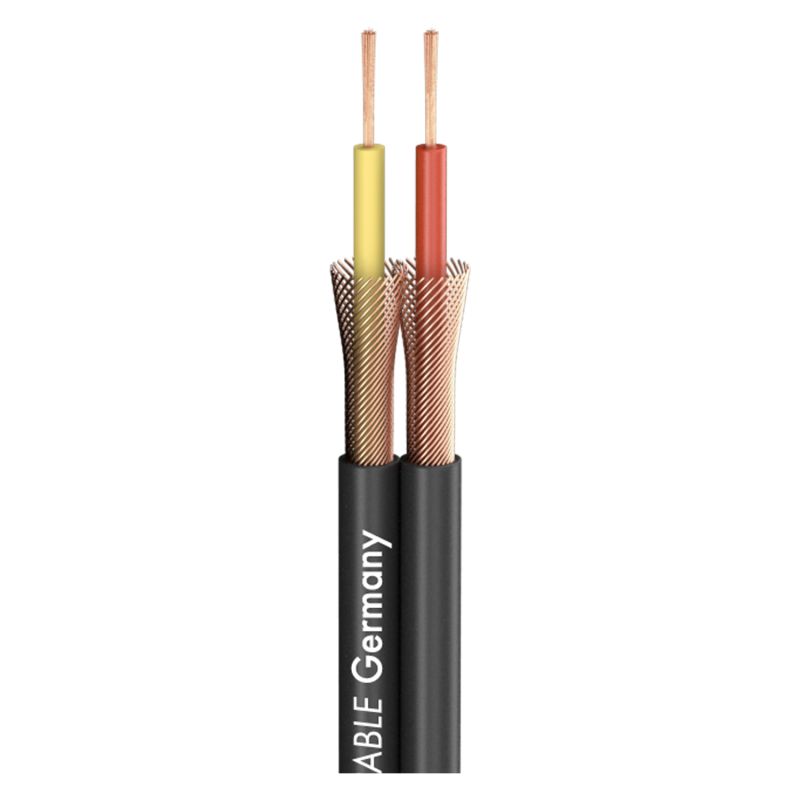

- Each conductor is insulated and individually shielded with a helical copper
mesh screen - Cables may be separated easily by hand
- Small jacket diameter, ensuring easy handling with RCA and jack connectors
Application:
- Cabling of unbalanced devices (keyboards)
- Connection lead for hifi components
- Assembly of Y-adapter cable
- Assembly of insert cable
