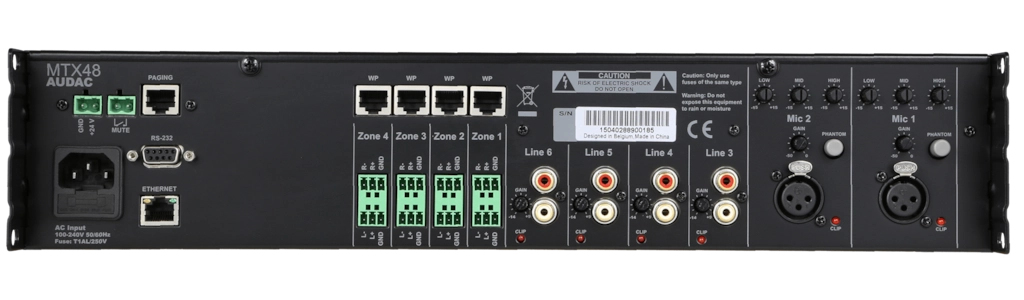

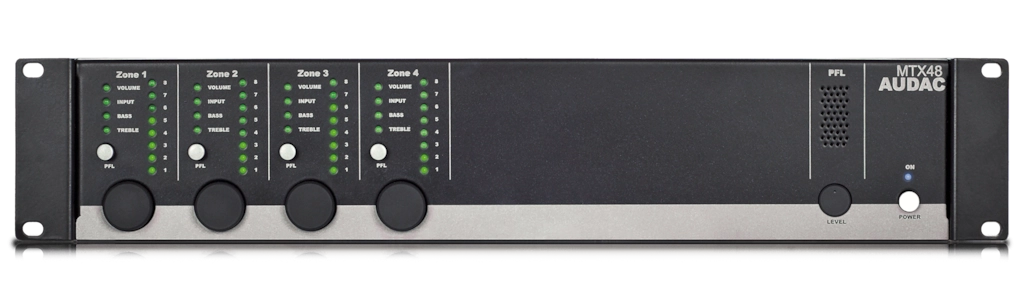

MTX48
4-zone audio matrix
- Compatible with AUDAC Touch™
- RS232 & TCP/IP control port
- 4 unbalanced stereo line inputs
- Wall panel inputs
- 2 x Microphone input
- 24 Volts emergency power operation
- Front PFL speaker with vol. control
- Priority audio inputs with phantom power
- 1 x priority mute contact
Description
System specifications
| Inputs | Balanced Microphone | Type | 2 x Balanced Microphone | |
| Connector | XLR | |||
| Sensitivity | 0 dBV ~ 50 dBV | |||
| Phantom Power | 15 V DC | |||
| Signal / Noise | > 80 dB | |||
| THD+N (@ 1 kHz) | < 0.05 dB | |||
| EQ | High | ± 15 dB (12.5 kHz) | ||
| Mid | ± 15 dB (2.5 kHz) | |||
| Low | ± 15 dB (80 Hz) | |||
| Unbalanced Stereo | Type | 4 x Stereo Unbalanced Line | ||
| Connector | RCA | |||
| Sensitivity | -14 dB ~ +9 dB | |||
| Signal / Noise | > 100 dB | |||
| THD+N (@ 1 kHz) | < 0.01 dB | |||
| Wall Panel | Type | 4 x Wall panel input | ||
| Connector | RJ45 | |||
| Other | Type | Priority mute contact | ||
| Outputs | Balanced Stereo | Type | 3-pin Euro Terminal Block (Pitch – 3.81 mm) | |
| Impedance | 51 Ω | |||
| Level | -70 dB ~ 0 dB | |||
| EQ | Treble | ± 14 dB (2.5~20 kHz) | ||
| Bass | ± 14 dB (100 Hz) | |||
| Frequency | Response (± 3 dB) | 20 Hz – 20 kHz | ||
| Crosstalk (@ 1 kHz) | -85 dB | |||
| Control | Front panel | |||
| RS-232 | ||||
| TCP/IP (RJ45) | ||||
| Wall panel (RS-485) | ||||
| Audac Touch™ | ||||
| Power | Consumption | 12 W | ||
| Supply | 100 ~ 240 V AC / 50 ~ 60 Hz | |||
| 24 V DC (emergency Power) | ||||
| Socket Connections (AUDAC Touch™) | 5 sockets | |||
Product Features
| Dimensions | 482 x 88 x 335 mm (W x H x D) | |
| Weight | 4.750 kg | |
| Unit height | 2 HE | |
| Accessories | Optional | WP2xx Universal wall panel |
Recommended applications
|
Bars & Restaurants
|
|
Education
|
|
Hotels
|
|
Corporate
|
|
Residential
|
|
Houses of worship
|
|
Clubs
|
