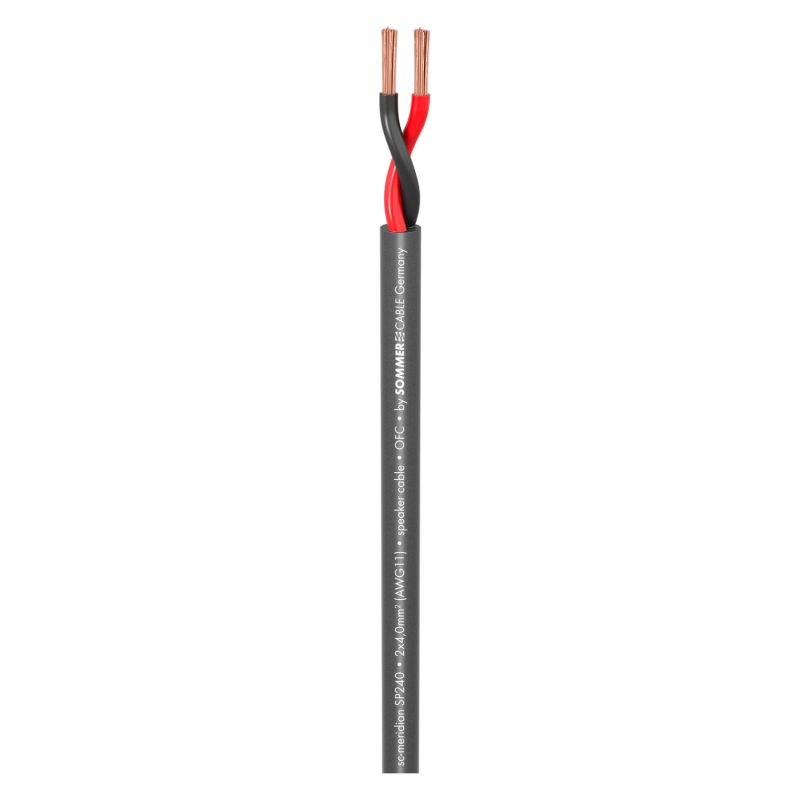

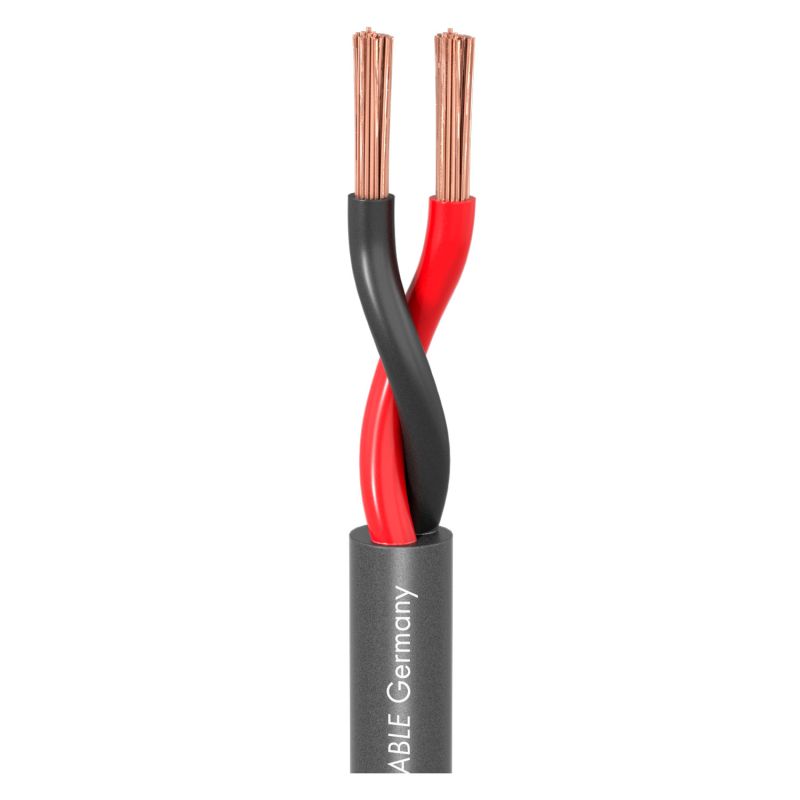

Meridian Mobile SP240
Where brute force reigns in a useful manner…
the sound people are at work and they will treat the cables not exactly squeamishly.
No problem for our robust Meridian Mobile SP240. This cable has been designed particularly for loudspeakers and here it meets all specific technical requirements. Low-oxygen Cu wires ensure better sound quality and a longer life. All PVC versions are easy to reel.
Advantages:
- flexible and easy to rollable for cable reel
- Small in diameter
- Very durable due to the use of special coating mixtures
- Affordable price
Application:
- PA sound systems of all kinds
- For ELA technology
- Cabling of HiFi systems
| Article number: | 440-0056 |
|---|---|
| Name: | Meridian Mobile SP240 |
| EAN: | 4049371002219 |
| Properties: | Analog, OFC oxygen free copper |
| Application area: | ELA 100 V, Mobile outdoor / indoor, Stage / live, Studio / Broadcast |
| Application: | Speaker Cable |
| Colour: | grey |
| Construction: | (2LIY4,0mm²)Y |
| Jacket material: | PVC |
| Jacket Ø [mm]: | 9,50 |
| Jacket Ø [“]: | 0.374 |
| Number of Channels (audio): | 1 |
| Inner conductor (audio): | 2 |
| Inner conductor (audio) [mm²]: | 4,00 |
| Inner conductor (audio) [sqin]: | 0.0062 |
| Inner conductor Ø (audio) [mm]: | 2,76 |
| Inner conductor Ø (audio) [“]: | 0.1087 |
| AWG (audio): | 11 |
| Copper strands (audio): | 56 |
| Copper strand Ø (audio) [mm]: | 0,30 |
| Copper strand Ø (audio) [“]: | 0.0118 |
| Conductor insulation Ø [mm]: | 4,20 |
| Conductor insulation Ø [“]: | 0.1654 |
| Weight per 1 m [g]: | 150 |
| Weight at 1000 ft. [lbs]: | 100.9374 |
| Fire load per m [kWh]: | 0,46 |
| Style variant: | round |
| Packing: | 100 m spool, 500 m spool |
| Temperature min. [°C]: | -30 |
| Temperature max. [°C]: | 70 |
| Width [mm]: | 9,5 |
| Width [“]: | 0.374 |
| Height [mm]: | 9,5 |
| Height [“]: | 0.374 |
| Capac. cond./cond. per 1 m (audio) [pF]: | 125 |
| Capacity wire/wire at 1 ft. (audio) [pF]: | 38.1 |
| Insulation resist. per 1 km [GΩ]: | 0,005 |
| Insulation resist. per 1000 feet [GΩ]: | 0.0015 |
| Insulation resist. per 1 km (audio) [GΩ]: | 0,005 |
| Insulation resist. per 1000 feet (audio) [GΩ]: | 0.0015 |
| Conductor resistance per 1 km [Ω]: | 4,5 |
| Conductor resistance per 1000 ft. [Ω]: | 1.3716 |
| BPVo-Euroclass: | Fca |
Related products
elephant 425
The wires are running hot...
and the crowd is cheering when the speaker walls are turned up all the way. Then not only the spirits are heating up, but also the cables. This puts very high demands on the cable which means that the outer jacket of the cable must be as thick as elephant skin. But it should also be flexible, robust, tread-resistant, easy to reel and of course reusable time and again.
Compare it with other speaker cables – the ELEPHANT is bound to convince you all out!
Advantages:
- Loss-free transmission due to the special litz stranding technology
- Highly flexible and stage-proof, easy to reel
- Compatible with the common NEUTRIK® speakON® connectors
- Easy to use due to well-insulated, numbered wires
Application:
- Professional PA systems
- Surround and woofer systems
- For permanent installation
Meridian Mobile SP215
Where brute force reigns in a useful manner...
the sound people are at work and they will treat the cables not exactly squeamishly.
No problem for our robust Meridian Mobile SP215. This cable has been designed particularly for loudspeakers and here it meets all specific technical requirements. Low-oxygen Cu wires ensure better sound quality and a longer life. All PVC versions are easy to reel.
Advantages:
- flexible and easy to rollable for cable reel
- Small in diameter
- Very durable due to the use of special coating mixtures
- Affordable price
Application:
- PA sound systems of all kinds
- For ELA technology
- Cabling of HiFi systems
SC-Isopod SO-F22 (grey)
The memory cable...
Will get things in order. In switching cabinets and racks it often looks like on grandma's knitting pattern. Tidiness is indispensable. The SC-ISOPOD SO-F22D is a 2-wire, foil-shielded cable with a compact outer diameter of 3,30 mm. The cable is primarily used for the internal wiring in audio and hi-fi components. It has a “memory effect“ and can be laid “around the corner“ easily. The Cu wires of the individual wire pairs are already pre-stranded and very easy to strip. For a simpler assembly, the cable has an additional pre-stranded, tin-plated drain wire. It is shielded by an AL/PT foil that will automatically stick on the jacket when stripping it. The SC-ISOPOD SO-F22D has a surge impedance of 110 Ω.
Advantages:
- Quick and easy to handle
- Robust plastic jacket for long life
- Easy to lay thanks to “memory effect”
Application:
- Internal wiring of racks, audio and hifi components
SC-Isopod SO-F22 9 ( black )
The memory cable...
Will get things in order. In switching cabinets and racks it often looks like on grandma's knitting pattern. Tidiness is indispensable. The SC-Isopod SO-F22 is a 2-wire, foil-shielded cable with a compact outer diameter of 3,30 mm. The cable is primarily used for the internal wiring in audio and hi-fi components. It has a “memory effect“ and can be laid “around the corner“ easily. The Cu wires of the individual wire pairs are already pre-stranded and very easy to strip. For a simpler assembly, the cable has an additional pre-stranded, tin-plated drain wire. It is shielded by an AL/PT foil that will automatically stick on the jacket when stripping it.
Advantages:
- Quick and easy to handle
- Robust plastic jacket for long life
- Easy to lay thanks to “memory effect”
Application:
- Internal wiring of racks, audio and hifi components

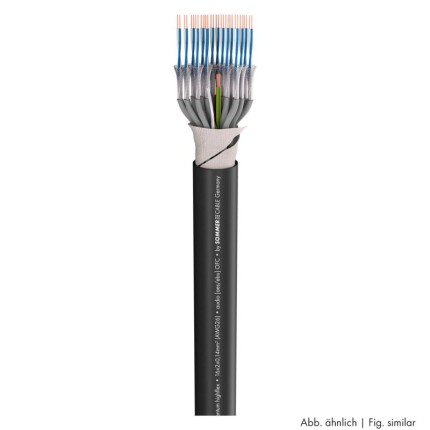

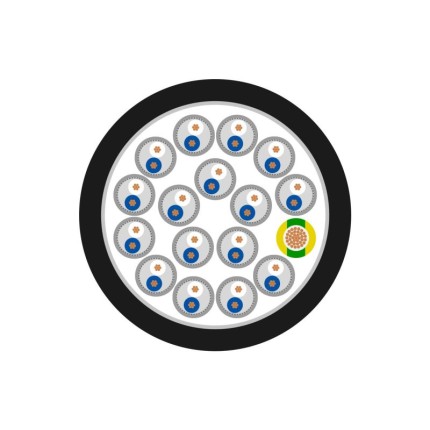

SC-Quantum QMC 16
A true allrounder...
because it could not be any longer, faster or more flexible. The SC-Quantum QMC is just the cable that all “bending radius fetishists“ like event technicians, musicians and ambitious live sound people have always been dreaming of! The SC-Quantum QMC is absolutely torsionfree, i.e. it can be wound in a figure of “8“ easily and will not twist when winding or unwinding it.
Not only the S-PVC-jacket, which is cold-resistant down to –30 °C and notch-resistant, feels soft – due to the
superfine 0,07 mm (!) individual copper litz and the PE-insulated wire insulation, even the interior is wonderfully supple and unbreakable. From the 8-pair version upward we have included an extra yellow/green protective earth wire to provide for added stability and safety (PE = protective earth).
The electrical and mechanical data are likewise remarkable: each wire pair is additionally tube-insulated, numbered and shielded by a helical Cu mesh screen with a 99 % coverage.
Go figure this: the SC-Quantum QMC stands out with its low 45 pF wire/wire capacitance and will remain 110 Ω (AES/EBU) conform for several hundred metres!
The wire pair diameter is perfectly suitable for direct
mounting (e.g. of an XLR connector). The interior is
protected against adverse influences by a highly flexible
PVC jacket with a wall thickness of almost 2 mm.
There has never been a cable with such electrical and
mechanical values for such a low price!
Advantages:
- Each wire pair is individually insulated and shielded by a helical Cu mesh ( coverage)
- Very low wire/wire capacitance
- Highly flexible and reelable without twisting
- In compliance with AES/EBU ()
- Affordable price
Application:
- Professional stage and live multicore for separate or central earthing
- Creation of highly flexible studio looms, analogue and digital
- Permanent Installation

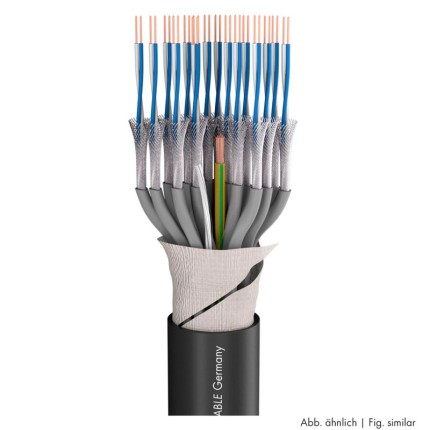

SC-Quantum QMC 32
A true allrounder...
because it could not be any longer, faster or more flexible. The SC-Quantum QMC is just the cable that all “bending radius fetishists“ like event technicians, musicians and ambitious live sound people have always been dreaming of! The SC-Quantum QMC is absolutely torsionfree, i.e. it can be wound in a figure of “8“ easily and will not twist when winding or unwinding it.
Not only the S-PVC-jacket, which is cold-resistant down to –30 °C and notch-resistant, feels soft – due to the
superfine 0,07 mm (!) individual copper litz and the PE-insulated wire insulation, even the interior is wonderfully supple and unbreakable. From the 8-pair version upward we have included an extra yellow/green protective earth wire to provide for added stability and safety (PE = protective earth).
The electrical and mechanical data are likewise remarkable: each wire pair is additionally tube-insulated, numbered and shielded by a helical Cu mesh screen with a 99 % coverage.
Go figure this: the SC-Quantum QMC stands out with its low 45 pF wire/wire capacitance and will remain 110 Ω (AES/EBU) conform for several hundred metres!
The wire pair diameter is perfectly suitable for direct
mounting (e.g. of an XLR connector). The interior is
protected against adverse influences by a highly flexible
PVC jacket with a wall thickness of almost 2 mm.
There has never been a cable with such electrical and
mechanical values for such a low price!
Advantages:
- Each wire pair is individually insulated and shielded by a helical Cu mesh ( coverage)
- Very low wire/wire capacitance
- Highly flexible and reelable without twisting
- In compliance with AES/EBU ()
- Affordable price
Application:
- Professional stage and live multicore for separate or central earthing
- Creation of highly flexible studio looms, analogue and digital
- Permanent Installation

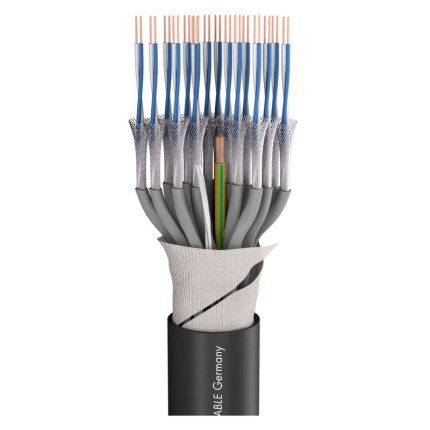

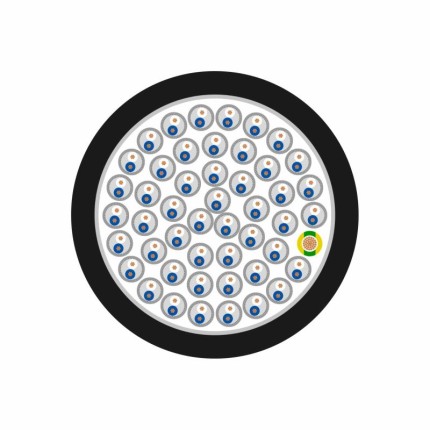

SC-Quantum QMC 48
