| Audio System Delay | 0.25ms（INPUT to OUTPUT） |
| AD/DA Converter | 24Bit |
| Sampling Rate | 96kHz |
| Input Channels | Two-way balanced |
| Input Interface | Female XLR |
| Output Channels | Three-way balanced |
| Output Interface | Male XLR |
| Input Impedance | ＞10kΩ |
| Output Impedance | ＜100Ω |
| Maximum Input Level | ≥+15dBu |
| Requency Response | ±0.3dB,20Hz-20kHz |
| Dynamic | ≥106dB |
| THD+N | ≤0.05% @1kHz,0dBu |
| Connection type | USB, drive free |
| AC Power Operating Range | 100-240V/(±10%，50-60Hz) |
| Power consumption | ＜10W |
| Rack space | 1U design and half 19” rack space enclosure |
| Dimensions(WxHxD) | 218x44x153mm |
| Net weight | 1.0kg |

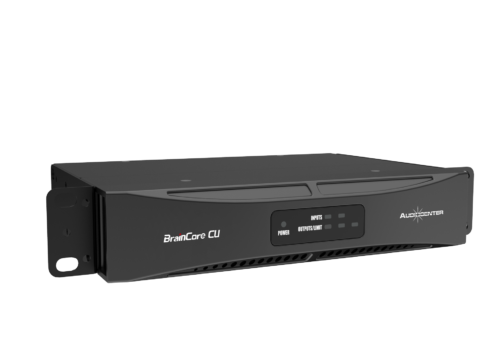

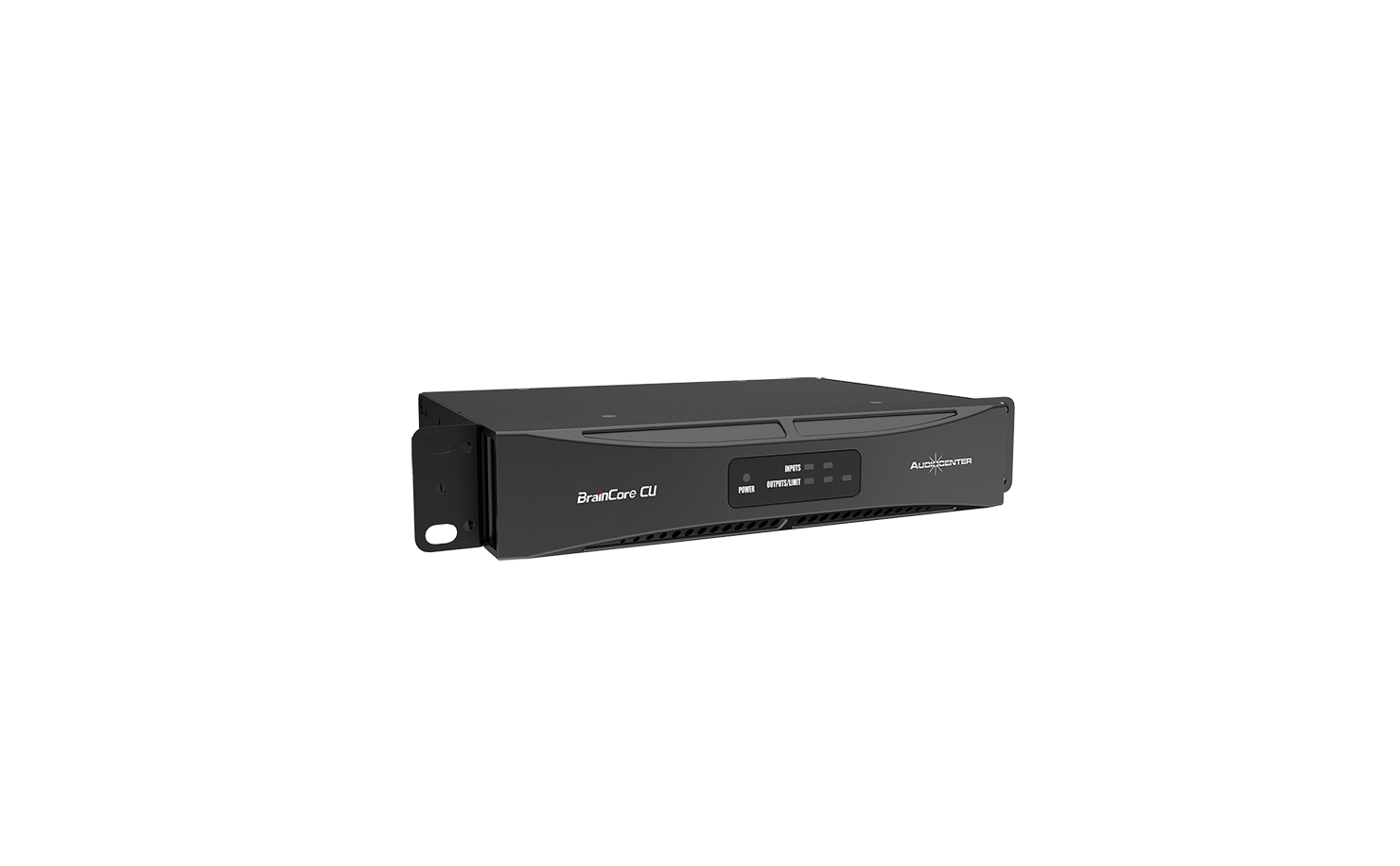

BrainCore CU
Audio black box
BrainCore CU is an audio black box with flexible applications and easy configuration. Through the BrainCore™ technology, an innovative core technology independently developed by Audiocenter, based on the characteristics of different speakers and different application scenarios, scene presets that can meet a variety of application needs have been created.
