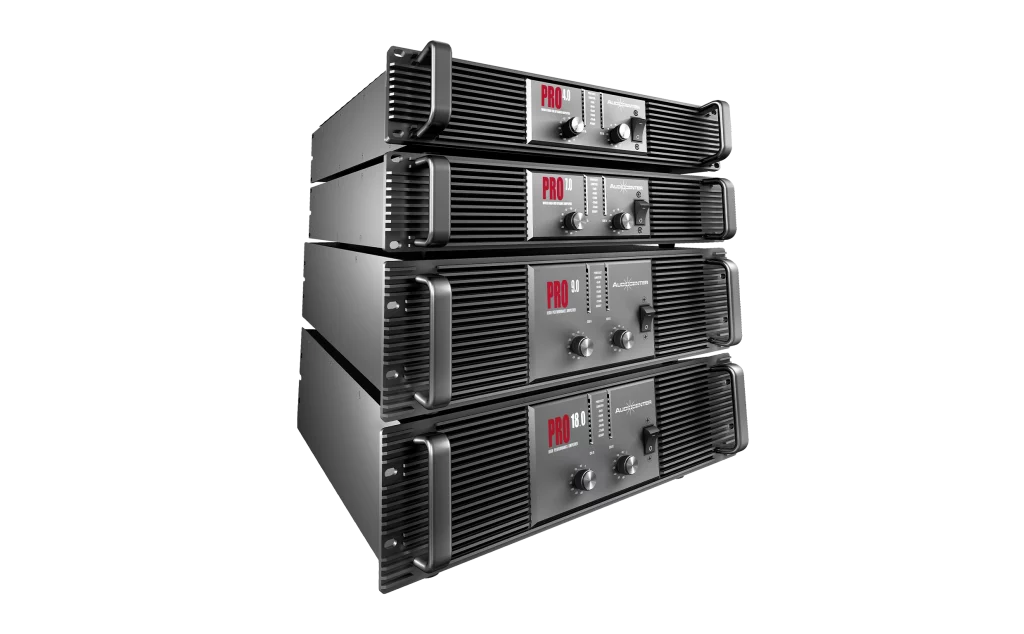

PRO9.0

PRO9.0 offers 1000 watts at 8Ω stereo. Each channel works at 2Ω to satisfy all requirements.

Output power(1kHz, THD+N =1%)	2×1000W@8Ω stereo 2×1500W@4Ω stereo 2×1950W@2Ω stereo 3000W@8Ω bridge 3900W@4Ω bridge
A-Guard Protection System	DC protection，Short circuit protection，Smart overheat management，Overheat protection，Input overload protection，Output overload protection，Soft startup protection，Limiter protection
Working mode	Stereo/Parallel/Bridge
Crossover	160Hz，-3dB（High Pass） 160Hz，-3dB（Low Pass） 30Hz（Low Cut）
LOW FREQ ENHANCED	100Hz
Input Connectors	Female XLR+TRS
Output Connectors	Speakon 4Pin + binding posts
Input Impedance	Balanced 20kΩ / Unbalanced 10kΩ
Maximum input voltage	≥20dBu
Sensitivity	0.775V / 36dB / 32dB
Frequency Response(1W 8Ω stereo)	20Hz-20kHz(±0.5dB)
Crosstalk(1kHz, Rated power 8Ω，A weighted)	≥65dB
S/N Ratio(1kHz & 8Ω))	≥108dB
Damping Factor (1kHz & 8Ω)	≥650
Intermodulation Distortion(60Hz:7kHz=4:1,half power)	≤0.05%
THD+N(1kHz，8Ω half power A weighted)	≤0.05%
Output Circuitry	Class H+
Power Supply	110V~/230V~(±10%,50/60Hz)
Power Consumption ((1/8 output power 4Ω)	1050W
Rack Space	3U
Cooling	Back to front venting, mandatory cooling
Dimension (W×H×D)	483×132×510mm
Net Weight	34.0kg

PRO9.0
