| Artist T88D | Artist T88 | |
| Signal Processing | 32-bit fixed/floating-point DSP 300MHz | 32-bit fixed/floating-point DSP 300MHz |
| Audio System Delay | <1ms (analog input- analog output) | <1ms (analog input- analog output) |
| AD/DA Converter | 24bit | 24bit |
| Sampling Rate | 96kHz | 96kHz |
| Input Channels | 8-channel electronically balanced line input, 4-channel Dante input | 8-channel electronically balanced line input |
| Input Interface | 3.81mm Euroblock (analog input), RJ-45 (Dante intput) | 3.81mm Euroblock (analog input) |
| Output Channels | 8-channel electronically balanced line output,4-channel Dante output | 8-channel electronically balanced line output |
| Output Interface | 3.81mm Euroblock (analog output), RJ-45 (Dante output) | 3.81mm Euroblock (analog output) |
| Input Impedance | >10kΩ | >10kΩ |
| Output Impedance | <150Ω | <150Ω |
| Maximum Input Level | > +14dBu/ line, -7dBu/microphone | > +14dBu/ line, -7dBu/microphone |
| Phantom power | +48VDC, 6.5mA (optional per channel) | +48VDC, 6.5mA (optional per channel) |
| Frequency Response | 20Hz-20kHz(±0.5dB)/line 20Hz-20kHz(±1.5dB)/mic | 20Hz-20kHz(±0.5dB)/line 20Hz-20kHz(±1.5dB)/mic |
| Dynamic | 105dB(@12dBu,1kHz,A weighted/line 95dB(@-7dBu,1kHz,A weighted)/mic | 105dB(@12dBu,1kHz,A weighted/line 95dB(@-7dBu,1kHz,A weighted)/mic |
| THD+N | -90dB(@12dBu,1kHz,A weighted)/line 86dB(@-7dBu,1kHz,A weighted)/mic | -90dB(@12dBu,1kHz,A weighted)/line 86dB(@-7dBu,1kHz,A weighted)/mic |
| Connection type | USB/RS232/RS485/TCP/IP | USB/RS232/RS485/TCP/IP |
| AC Power Operating Range | 100-240V(±10%，50-60Hz) | 100-240V(±10%，50-60Hz) |
| Power consumption | ＜20W | ＜20W |
| Rack space | 1U | 1U |
| Dimension(WxHxD) | 484x44x245mm | 484x44x245mm |
| Net weight | 3.5kg | 3.5kg |

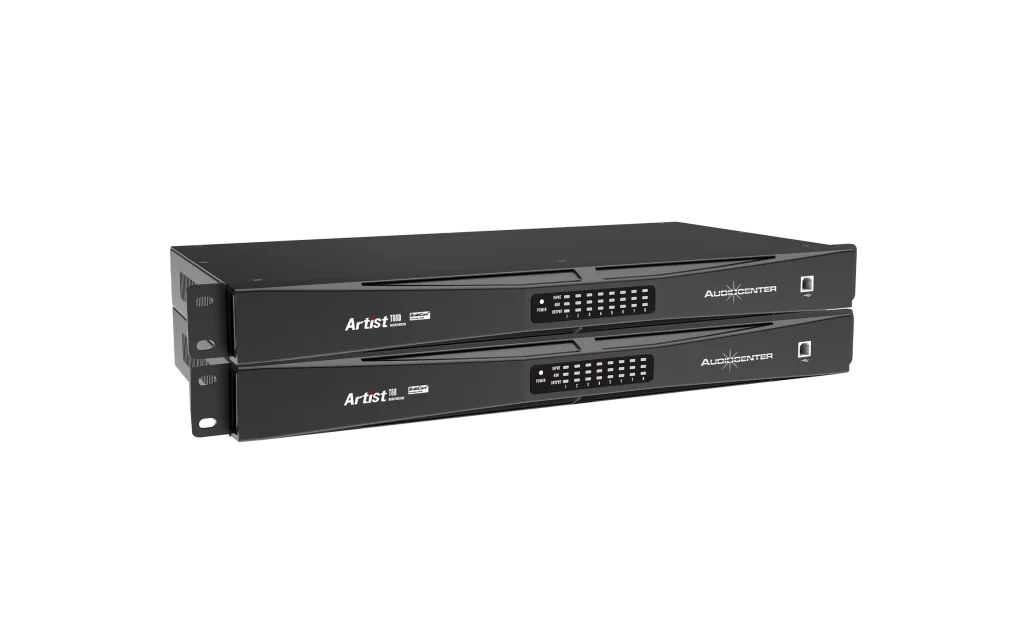

Artist T88D / T88
Audio Matrix
Artist T88D / T88 is a powerful 8-in 8-out audio matrix that supports 8 analog audio inputs and 8 analog audio outputs. Artist T88D also supports 4×4 Dante network audio input and output. Multiple options of input and output provide you with the flexibility required to integrate into the system. It can meet the control and audio processing for various places.
