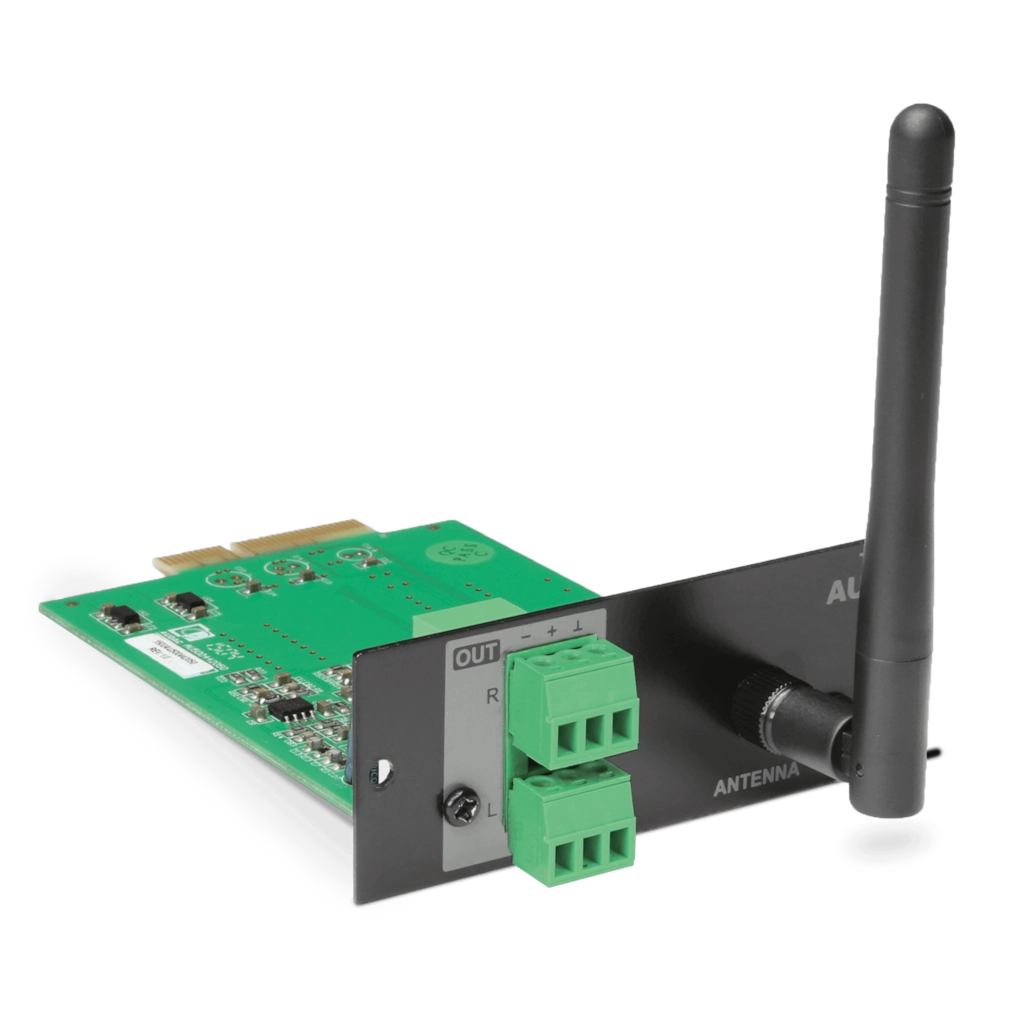

BMP42
SourceCon™ professional Bluetooth module
- Works with any SourceCon™ enabled device
- Up to 30 meter Bluetooth transmission
- 8 devices pairing memory
- Extendable antenne
- Version 4.2 /output class 2
Description
System specifications
| Connection | SourceCon™ interface card slot | |
| Inputs | Bluetooth receiver | |
| Outputs | Type | Balanced stereo line outputs (3-pin Euro Terminal Block (Pitch – 3.81 mm)) |
| Level | 8 dB ~ 82 dB | |
| Bluetooth specification | V4.2 | |
| Class 2 output power | ||
| THD+N (@ 1 kHz) | < 0.07% | |
| Crosstalk (@ 1 kHz) | 80 dB | |
| Power | Consumption | 0.5 W |
Product Features
| Dimensions | 87 x 34.5 x 114 mm (W x H x D) | |
| Weight | 0.075 kg | |
| Mounting | SourceCon™ interface card slot | |
| Accessories | Included | 2.4 GHz bluetooth antenna (SMA) |
| Optional | BAE100 Antenna extender kit | |
Recommended applications
|
Bars & Restaurants
|
|
Education
|
|
Hotels
|
|
Corporate
|
|
Residential
|
