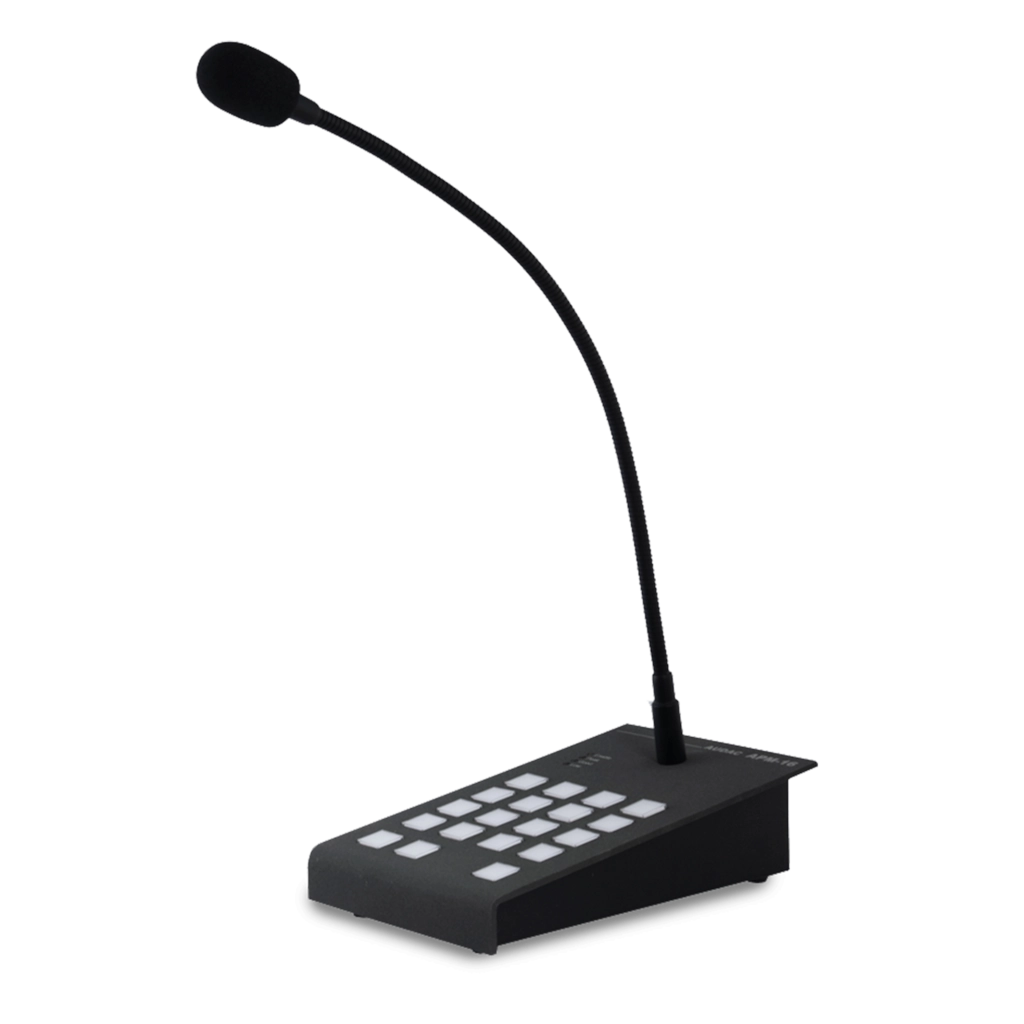

APM116
Digital paging microphone 16 zones
- High quality back electret condenser capsule with cardioid pickup pattern
- 35 cm flexing gooseneck microphone
- Integrated memory for voice-file storage & playback
- Level & status indication LED’s
- 16 Colours illuminated push button
Description
Available models
| APM116MK2 | MK2 version |
System specifications
| Microphone | Type | Back electret condenser |
| Polar Pattern | Cardioid (unidirectional) | |
| Frequency | Response (± 3 dB) | 100 Hz – 20 kHz |
| Sensitivity (1W/1m) | -42 dB ± 3 dB / Pa | |
| Buttons | 16 x programmable zone/function | |
| 1 x PTT (push-to-talk) | ||
| 1 x select & clear all | ||
| Indicators | 3 Colours illuminated push button | |
| Level & status indication LED’s | ||
| Internal storage | 10 minutes audio or messages spread over max 30 files | |
| Power | Supply | 24 V DC (min. 16V DC) |
| Consumption | 4.8 W | |
| Microphone | Gooseneck length | 350 mm |
| Connectors | RJ45 (data + Power) | |
| Connection standard | TIA/EIA T568B | |
| Max. cable length | With external PSU | 300 m |
| Without external PSU | 133 m | |
Product Features
| Dimensions | 120 x 55 x 190 mm (W x H x D) | |
| Weight | 1.350 kg | |
| Data protocol | RS-485 | |
| Audio protocol | Analogue | |
| Digital (configurable) | ||
| Colours | Grey metallic front panel | |
| Construction | Steel | |
| Required cabling | Analog | UTP CAT5E |
| Digital | UTP CAT6 | |
| Accessories | Included | Windscreen (MWS05/B) |
| Optional | ARJ03P junction box | |
| CP45ARJ RJ45 junction plate | ||
| PSD24x external Power supply | ||
Recommended applications
|
Corporate
|
|
Sporting facilities
|
