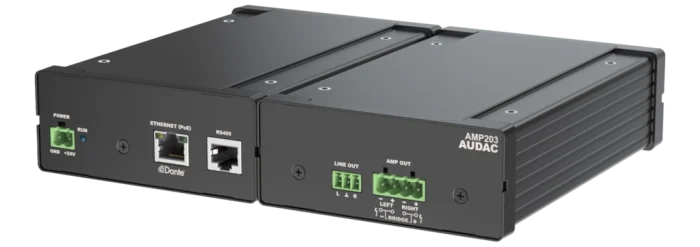

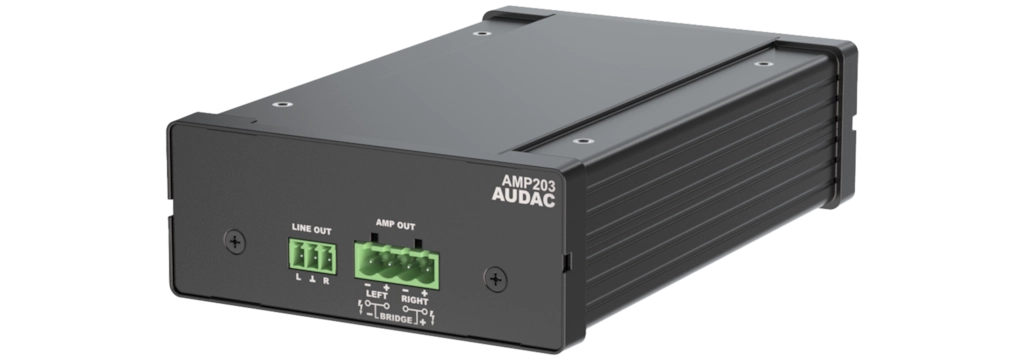

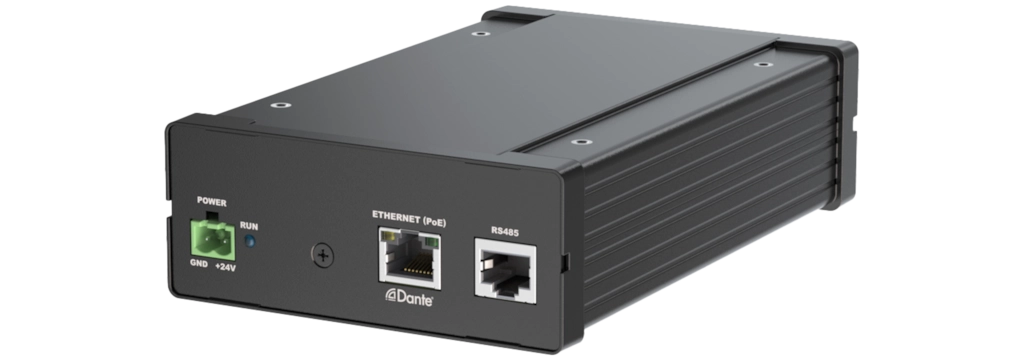

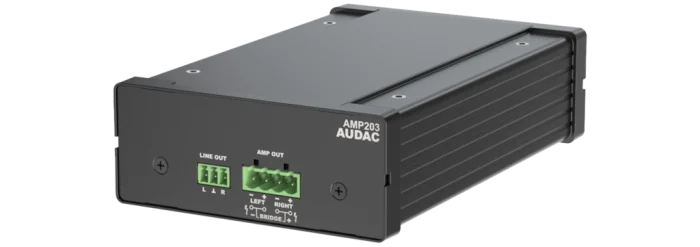

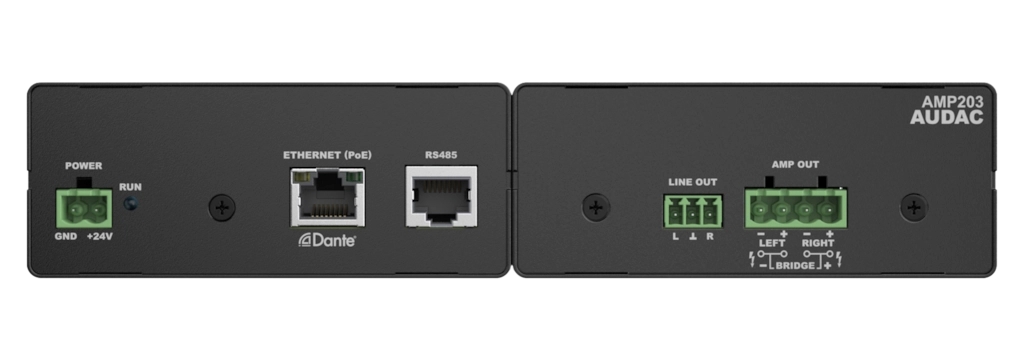

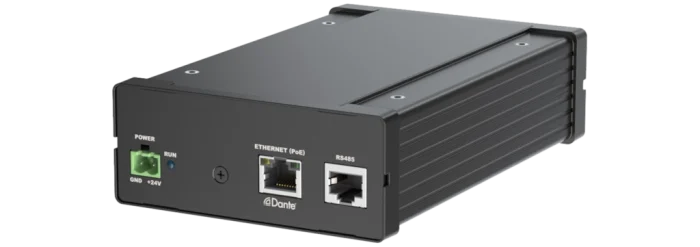

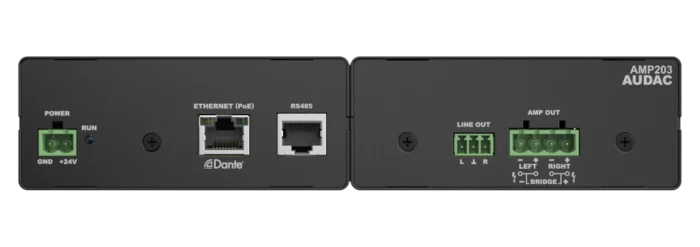

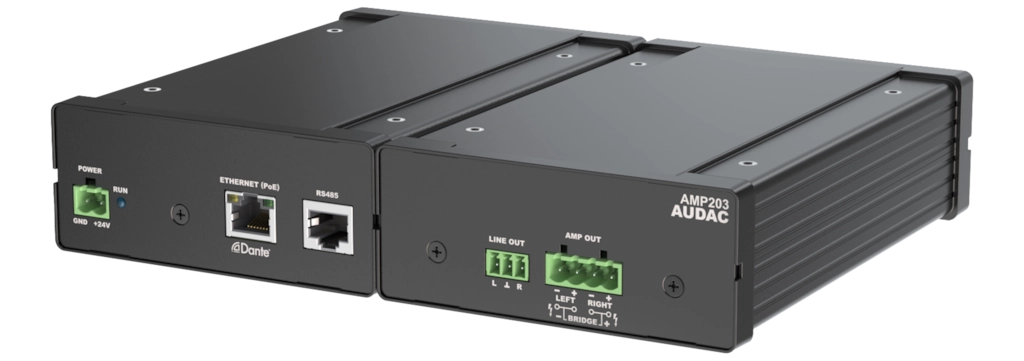

AMP203
Dante™/AES67 mini stereo amplifier
- Compatible with AUDAC Touch™
- Compatible with TouchLink™
- Advanced DSP and loudspeaker management
- Unbalanced stereo line output (3-pin terminal block)
- Dante™/AES67 digital audio input
- PoE 802.3bt (and lower) compatible
- Ethernet & RS-485 control possibilities
Description
System specifications
| RMS/AES power handling | @ 2 Ω Bridge | 1 x 60 W | |
| @ 4 Ω Stereo | 2 x 30 W | ||
| @ 4 Ω Bridge | 1 x 60 W | ||
| @ 8 Ω Stereo | 2 x 30 W | ||
| @ 8 Ω Bridge | 1 x 30 W | ||
| THD+N (@ 1 kHz) | < 0.015% | ||
| Crosstalk (@ 1 kHz) | < -98 dB | ||
| Efficiency | > 70% | ||
| Cooling | Convection cooled | ||
| Control | RS-485 | ||
| TCP/IP | |||
| Power | PoE 802.3bt | ||
| Supply | 24 V DC | ||
| Inputs | Other | Type | 1 x Ethernet |
| RS-485 | |||
| Dante™/AES67 (4 channels) | |||
| Connector | RJ45 | ||
| Protection | Over heating | ||
| Over load | |||
| DC Short circuit | |||
| Signal limiting | |||
| Outputs | Type | 1 x Stereo Loudspeaker | |
| 1 x Line output | |||
| Connector | 4-pin Euro Terminal Block (Pitch – 5.08 mm) | ||
| 3-pin Euro Terminal Block (Pitch – 3.81 mm) | |||
| Power | Consumption | 80 W (max.) | |
| Nominal (1/8 MUP) | 10.6 W | ||
| Standby | 3 W | ||
| Idle | 6.6 W | ||
Product Features
| Dimensions | 108 x 44 x 165 mm (W x H x D) |
| Weight | 0.7 kg |
Recommended applications
|
Bars & Restaurants
|
|
Education
|
|
Corporate
|
|
Retail
|
|
Residential
|
