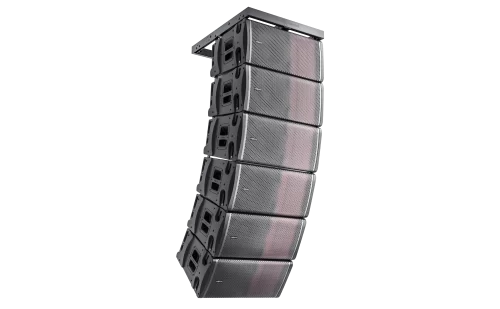

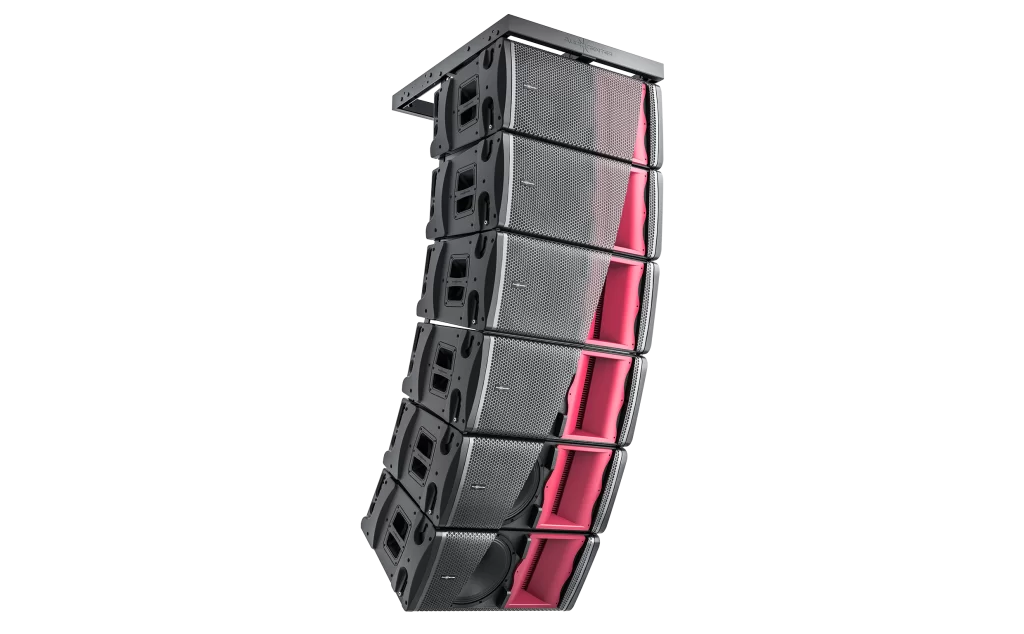

K-LA12A
Active DSP controlled line array loudspeaker
K-LA12A active DSP-controlled line array is a very compact system which is very flexible to use and with high efficiency and reliability. The system is perfectly integrated with BraincoreTM technology, and fashionable design idea.
Description
| Type | Active DSP-controlled line array loudspeaker |
| Frequency Response(-10dB) | 47Hz-20kHz |
| Horizontal Coverage | 100° |
| Vertical Coverage | Splay angle dependent |
| Maximum Calculated SPL/1M (Continuous/Peak) | 131dB/137dB |
| HF | Customized driver,1.75” voice coil,1.0” exit |
| LF | Customized 12”driver, 3” voice coil |
| DSP | DSP |
| Processor | 96kHz signal sampling frequency |
| Presets | ARRAY2,ARRAY4,ARRAY6 |
| AMPLIFIER | AMPLIFIER |
| Amplifier Circuitry | Class D |
| Power(RMS standards) | 1000W |
| Peak Power | 2000W |
| Frequency Response(1W 8Ω 2ch) | 20Hz-20kHz(±0.5dB) |
| Intermodulation Distortion (20Hz-20kHz, half power) | ＜0.05% |
| Total Harmonic Distortion (20Hz-20kHz,Rated power 8Ω) | ＜0.05% |
| Cooling System | Cooling with fans, air convection |
| Protection | DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection |
| Signal Input Connectors | Female XLR |
| Signal Output Connectors | Male XLR |
| Power Input Connectors | Power connector |
| Power Output Connectors | Power connector |
| Working Voltage | 100V-130V~ or 220V-240V~(±10%,50/60Hz) |
| Power consumption (1/8 output power) | 107W |
| CABINET | |
| Cabinet | CNC made of excellent wood |
| Angle Adjustment | 0°,1°,2°,4°,6°,8°,10° |
| Cabinet Color | Black is the default color. Contact Audiocenter for customization |
| Grille | Iron mesh |
| Handles | 2 side |
| Optional Accessories | Flightcase with 100mm wheels / Durable rain bag/ Frame for flying and ground stacking/Dolly |
| Speaker Dimension(W×H×D) | 698×324×468mm |
| Carton Dimension(W×H×D) | 421×793×558mm |
| Net Weight | 31.0kg |
| Shipping Weight | 34.0kg |
| Technical Support and After-sales Service | Global application support team，EASE GLL files available |
