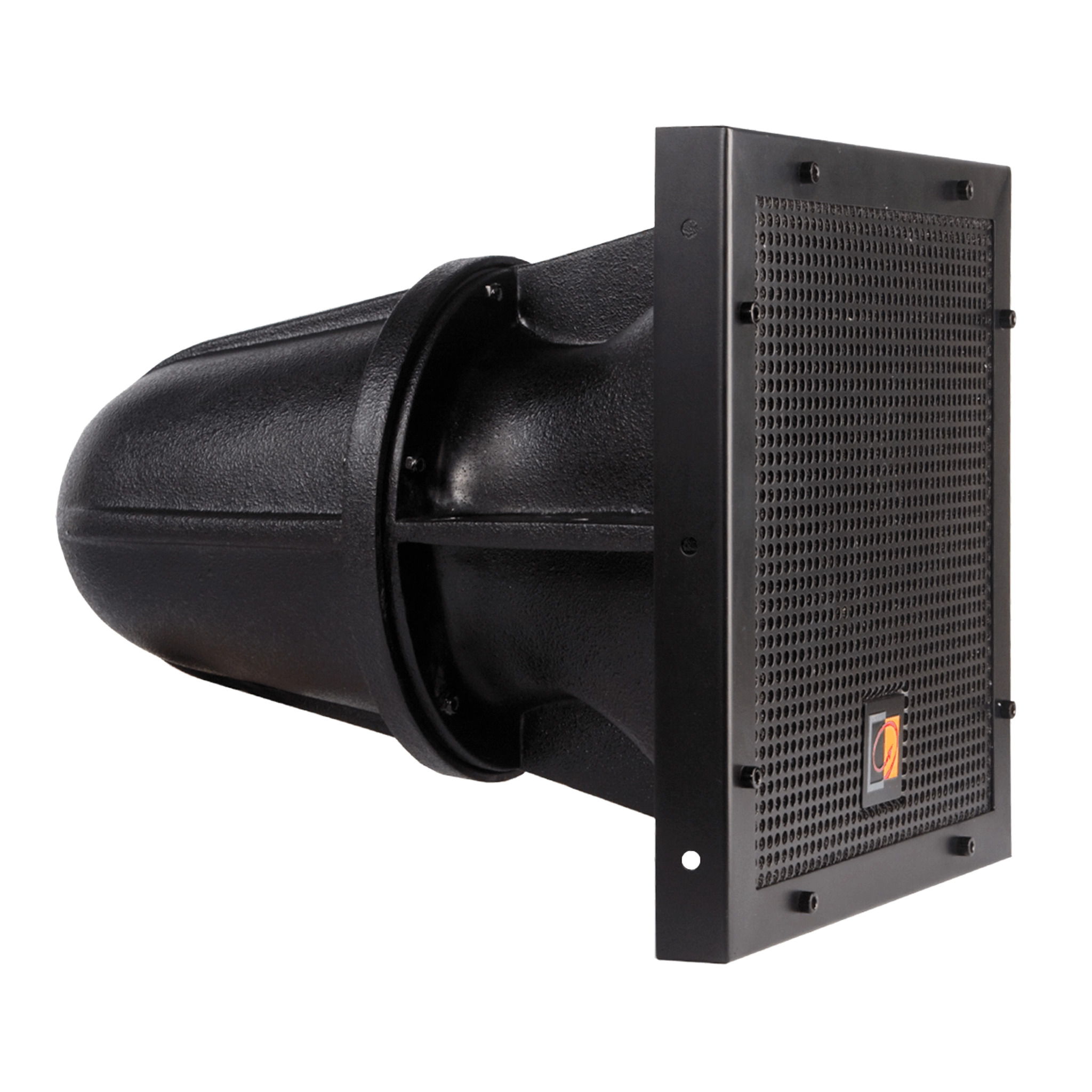

HS208T
Full range horn speaker 8″ 100V
- IP65 Ingress protection
- Multi-tapping 100V line transformer
- 8″ high output woofer with a 1.3″ voice coil
- Multi-Layer glass composite material with textured EPDM black coating
- Barrier terminal block in waterproof connection box
Description
Available models
| HS208TMK2 | Full range horn speaker 8″ 100V |
System specifications
| Speaker type | 2-way horn speaker | |
| Peak power handling | 600 W | |
| Program power handling | 300 W | |
| RMS/AES power handling | 150 W | |
| Inputs | Connector | -pin Euro Terminal block (Balanced) |
| Impedance | 8 Ω | |
| Line Transformer Tappings | 1 | 120 W / 83 Ω |
| 2 | 60 W / 167 Ω | |
| 3 | 30 W / 333 Ω | |
| Sensitivity (1W/1m) | 97 dB | |
| Sound Pressure (Max. W/1m) | 123 dB | |
| Frequency | Response (± 3 dB) | 100 Hz – 18 kHz |
| Range (-10 dB) | 70 Hz – 20 kHz | |
| Crossover | Frequency | 1.5 kHz |
| Type | Passive built-in | |
| Dispersion | Horizontal | 40° |
| Vertical | 40° | |
| Ingress Protection rating | IP65 | |
| Temperature | Operating | -20 – +50 °C |
| Connectors | Barrier terminal block in waterproof connection box | |
| Drivers | HF | 1.3” Compression driver |
| MF | 8” | |
Product Features
| Dimensions | 360 x 360 x 482 mm (W x H x D) | |
| Weight | 15.600 kg | |
| Construction | Multi-Layer glass composite material with textured EPDM black coating | |
| Front finish | Powder coated aluminium with lining | |
| Mounting & handling | Mounting bracket fixing holes | |
| Accessories | Optional | MBK208MK2 Wall mounting bracket |
Recommended applications
|
Museums & Themeparks
|
|
Corporate
|
|
Sporting facilities
|
|
Events
|
