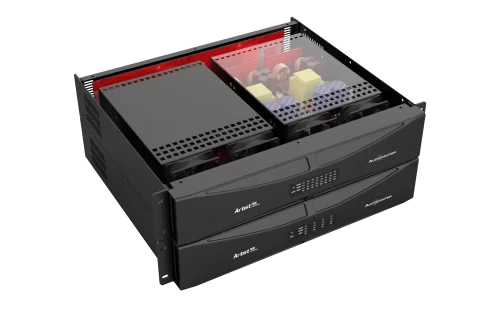

Artist T4800V
Class D amplifier
Artist T4800 professional power amplifier adopt switching power supply and class D circuit design which has good performance with high efficiency, light weight and good stability.
Description
| Output Power（1kHz 20ms Burst THD+N=1%） | 8Ω Stereo | 4x400W |
| 4Ω Stereo | 4x800W | |
| 8Ω Bridge | 2x1600W | |
| Protection System | DC protection / Short circuit protection / Smart overheat management / Overheat protection / Input overload protection /Output overload protection / Soft startup protection / Limiter protection | |
| Working mode | Stereo,Parallel,Bridge | |
| Input Connectors | 1×12-pin Euroblock（3.81mm） | |
| Output Connectors | 2×4-pin Euroblock（5.08mm） | |
| Input Impedance | Balanced ≥20kΩ/ Unbalanced ≥10 kΩ | |
| Maximum input voltage | ≥20dBu | |
| Gain | Stereo/Parallel：32dB；Bridge：38dB | |
| Frequency response(1W 8Ω stereo) | 20Hz-20kHz（±0.5dB） | |
| Crosstalk(1kHz, Rated power 8Ω, A weighted) | ≥60dB | |
| S/N Ratio(Rated power 8Ω, A weighted) | ≥108dB | |
| Damping Factor (1kHz&8Ω) | ≥500 | |
| Intermodulation Distortion(60Hz:7kHz=4:1, half power) | ≤0.05% | |
| Total Harmonic Distortion(1kHz, half power 8Ω, A weighted) | ≤0.05% | |
| Amplifier Type (Output Circuitry) | Class D | |
| AC Power | 100-130V/220-240V(±10%,50-60Hz) | |
| Power consumption（1/8 output power） | 350W | |
| Rack space | 2U | |
| Cooling | Fan cooling, blowing from front to back | |
| Dimension(W×H×D) | 483×88×410mm | |
| Net Weight | 8.5kg | |
