| Model | MT-92A |
|---|---|
| Name | UHF Analog Interlinking Transmitter |
| Frequency Range | UHF 506 – 934 MHz (country dependent) |
| Modulation Type | FM modulation |
| Receiver | ACT series analog receivers |
| RF Power Output | Low < 100 mW, High < 500 mW (country dependent) |
| Phantom Power | 48 V |
| Audio Input | XLR / 6.3 mm TRS combo socket |
| Power Supply | DC 12 – 15 V, AC 100 – 240 V |
| Dimensions | 210 × 44 × 206 mm (W × H × D) |
| Weight | Approx. 1.1 kg |

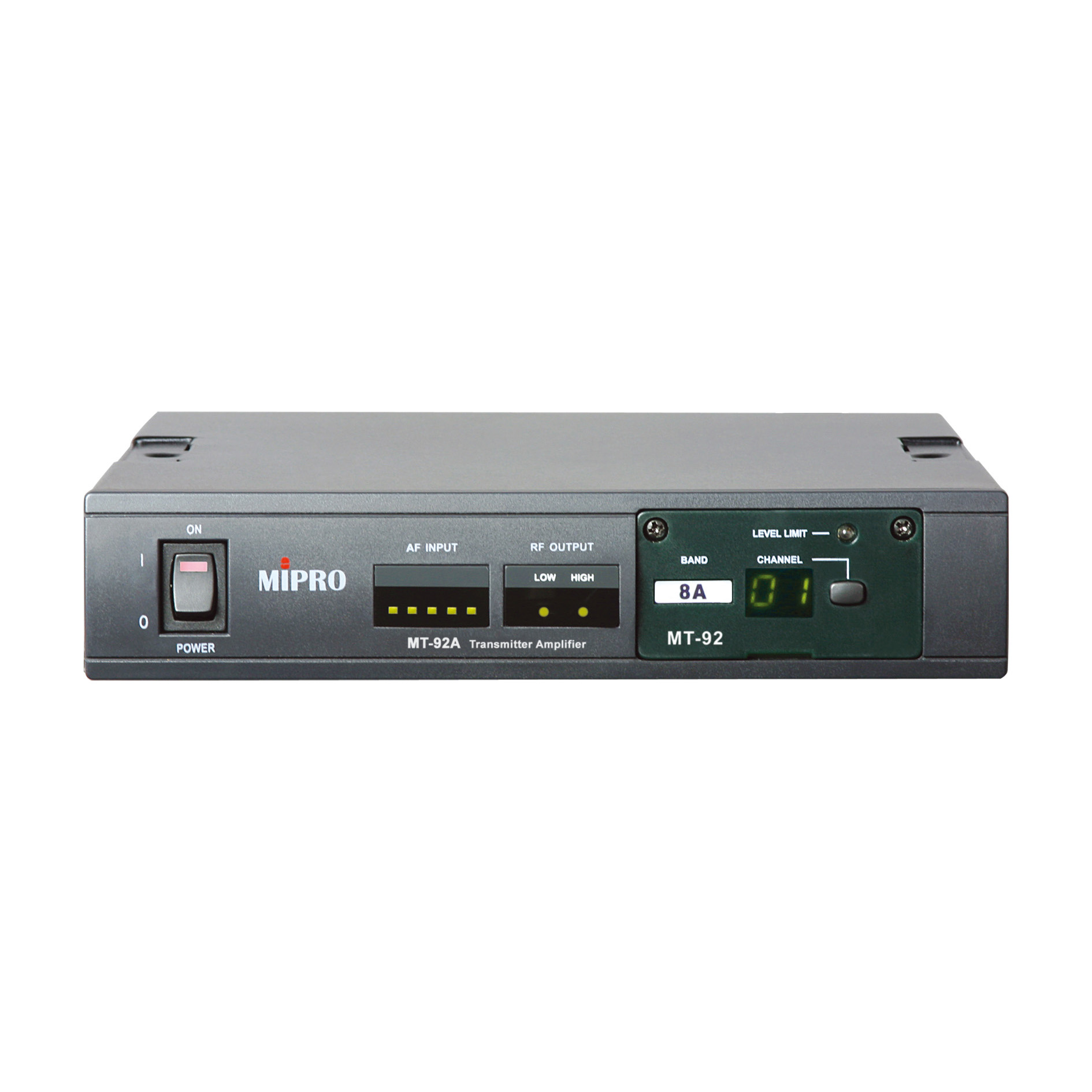

MT-92A
UHF Analog Interlinking Transmitter
- Transmits the output signals of microphones, instruments and other audio equipment.
- Presets 16 channels.
- The maximum power output is up to 500 mW.
- Supplies 48 V phantom power for condenser microphones.
- Pairs with the ACT series analog receivers for long-distance wireless transmission.
Description
Reviews (0)
Shipping & Delivery
Related products
ACT-323
UHF Analog Dual-Channel Receiver
- EIA standard metal chassis equipped with a green backlit LCD screen and electronic buttons on the front panel. The LCD screen will automatically turn bright to identify “Working” or “Standby” mode.
- The most reliable 24 MHz narrowband high dynamic range receiving circuit greatly decreases intermodulation distortion and increases interference-free compatible channels.
- Industry’s first “PiloTone & NoiseLock” circuits and the RF interference warning indicator for proper adjustments of the SQ level to avoid interference.
- MIPRO Auto Scan and ACT™ function provides the transmitter’s frequency with precise and rapid sync to the receiver.
- There are 7 preset groups with a total of 80 pre-saved frequencies. The user-defined group allows users to choose 8 working channels from 961 available frequencies.
- Each channel has separate audio output and 3 switchable output gains, or mix signals from all channels with just one output jack. All is to ensure the microphone operates within proper sensitivity and dynamic range, free from distortion.
- Antenna connector provides bias for MIPRO antenna systems to boost reception distance and signal.
- External AC 100 – 240 V switching power supply to ensure stable operation of the system even under drastic voltage change.
- All are designed and made in Taiwan to ensure high quality and value.
ACT-515
UHF Analog Single-Channel Receiver
- EIA standard metal chassis, with a newly designed LCD, a rotary control knob and buttons equipped on the front panel. The LCD screen automatically shifts colors to identify “Working” or “Standby” mode. An optional Dante network interface is available.
- Inherited the most reliable 24 MHz narrowband true diversity receiving circuit from MIPRO typical professional ACT-7 Series, which ensures long-distance and stable reception without signal dropout, greatly decreases intermodulation distortion and increases interference-free compatible channels.
- Industry’s first “PiloTone & NoiseLock” circuits and the RF interference warning indicator for proper adjustments of the SQ level to avoid interference.
- MIPRO Auto Scan and ACT™ function provides the transmitter’s frequency with precise and rapid sync to the receiver.
- There are 7 preset groups with a total of 80 pre-saved frequencies. The user-defined group allows users to choose and save up to 16 channels from 961 available frequencies.
- Each channel has separate audio output and 3 switchable output gains, or mix signals from all channels with just one output jack. All is to ensure the microphone operates within proper sensitivity and dynamic range, free from distortion.
- Optional MIPRO RCS2.Net software allows real-time network remote-controlling and monitoring up to 64 channels. Additional FSA compatible channels calculator software allows users to manually set compatible channels of any frequency band.
- Antenna connector provides bias for MIPRO antenna systems to boost reception distance and signal.
- External AC 100 – 240 V switching power supply to ensure stable operation of the system even under drastic voltage change.
- Pairs with ACT-500H handheld and ACT-500T bodypack transmitter.
- All are designed and made in Taiwan to ensure high quality and value.
ACT-545
UHF Analog Quad-Channel Receiver
- EIA standard metal chassis, with a newly designed LCD, a rotary control knob and buttons equipped on the front panel. The LCD screen automatically shifts colors to identify “Working” or “Standby” mode. An optional Dante network interface is available.
- Inherited the most reliable 24 MHz narrowband true diversity receiving circuit from MIPRO typical professional ACT-7 Series, which ensures long-distance and stable reception without signal dropout, greatly decreases intermodulation distortion and increases interference-free compatible channels.
- Industry’s first “PiloTone & NoiseLock” circuits and the RF interference warning indicator for proper adjustments of the SQ level to avoid interference.
- MIPRO Auto Scan and ACT™ function provides the transmitter’s frequency with precise and rapid sync to the receiver.
- There are 7 preset groups with a total of 80 pre-saved frequencies. The user-defined group allows users to choose and save up to 16 channels from 961 available frequencies.
- Each channel has separate audio output and 3 switchable output gains, or mix signals from all channels with just one output jack. All is to ensure the microphone operates within proper sensitivity and dynamic range, free from distortion.
- Optional MIPRO RCS2.Net software allows real-time network remote-controlling and monitoring up to 64 channels. Additional FSA compatible channels calculator software allows users to manually set compatible channels of any frequency band.
- Antenna connector provides bias for MIPRO antenna systems to boost reception distance and signal.
- External AC 100 – 240 V switching power supply to ensure stable operation of the system even under drastic voltage change.
- Pairs with ACT-500H handheld and ACT-500T bodypack transmitter.
- All are designed and made in Taiwan to ensure high quality and value.
ACT-800T
UHF Digital Wideband Bodypack Transmitter
- Newly designed compact and lightweight housing for easy wearing.
- The panel integrates a backlit LCD and setup buttons for easy operation and view of all operating information. A lockable power switch prevents the power switch from accidental operation.
- In addition to the power switch and the mute button, functions such as input sensitivity, low frequency reduction, volume limit, power output, input polarization, and mute mode are also programmable.
- The world’s first ACT™ function provides precise and rapid frequency sync to the receiver.
- 6 switchable gain levels and the input polarization can be selected for matching various capsules.
- Mute button and remote-control jack allow quick setting of MUTE function.
- The patented battery compartment can be inserted with two AA-type batteries or one rechargeable Li-ion battery, charging via USB Type-C with the foolproof and safe charging circuit. The second-generation ACT-800T features charging contacts and can also be placed on an optional single-slot or dual-slot charging station for charging.
- A belt clip for easy wearing.
BC-100
Boundary Microphone Base
- BC-100 II has a built-in high-sensitivity condenser microphone capsule module that can be independently used as a boundary microphone.
- BC-100 II can connect with MM-series 4-Pin gooseneck microphone as a wired conference microphone.
- Accepts MIPRO ACT-TC series bodypack transmitter as a wireless conference microphone. It can be charged using the included adaptor, no need to remove the transmitter.
- A balanced XLR connector for any mixer supplying phantom power and a switch to select the audio source from either the inner boundary microphone or the optional gooseneck microphone.
- Press the button to TALK position, the green indicator on the base and LED ring indicator on the MM-206L / 205L / 204L will light up. Press it again to MUTE position, all indicators will turn off.
- The metal cover is equipped with anti-slip pads, ensuring the stability.
