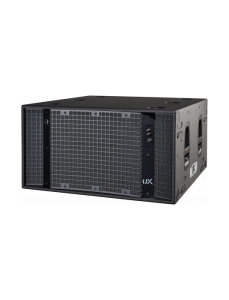

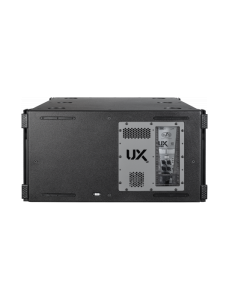

UX-218A
Features
Powered high performance subwoofer system
2 x 3400 Wpeak Class “D” amplifier
DASnet™ capable
Two new 18UXN4 longexcursion loudspeakers
Front loaded crossfire configuration
Applications
House of worship
Theatres, auditoria and performing arts centers
Live music clubs
Corporate A/V
Live sound touring/Rental services
| Performance | |
| Frequency Range (-10 dB) | 28 Hz-125 Hz |
| Maximum Peak SPL at 1 m | 143 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power (continuous) | 2 x 1700 W |
| Nominal Amplifier Power (peak) | 2 x 3400 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 4.9 V (+16 dBu) |
| Audio Signal Input Connector | 1 x Female XLR |
| Audio Signal Loop Thru Connector | 1 x Male XLR |
| Audio/Data Input Connector | etherCON |
| Control | DASnet™ |
| Audio + Data Loop Thru Connector | etherCON |
| AC Output Connector | powerCON TRUE1 |
| Current Draw 230 V / 115 V | 4.5 A/9.0 A |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Rectangular |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
| Dimensions ( H x W x D ) | 515 x 955 x 1.005 mm 20,3 x 37,6 x 39,6 in |
| Net Weight | 87,5 kg ( 192,9 lb ) |
| Components | |
| LF Driver | 18UXN4 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 560 x 1.020 x 1.055 mm 22,0 x 40,2 x 41,5 in |
| Shipping Weight | 96,0 kg ( 211,6 lb ) |
