Performance | |
Frequency Range (-10 dB) | 60 Hz – 20 kHz |
Horizontal Coverage (-6 dB) | 90º |

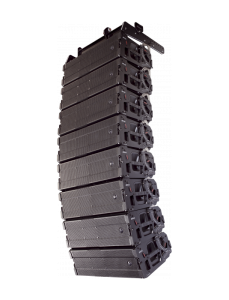

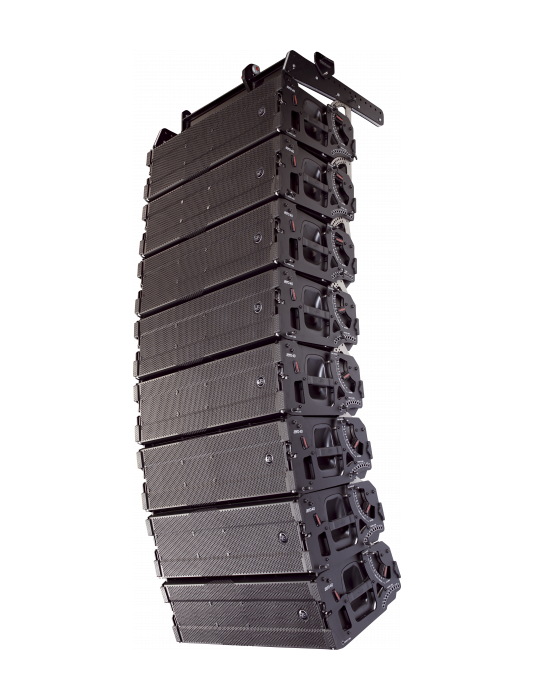

Vertical Coverage | Splay Dependent |
Maximum Peak SPL at 1 m | 138 db |
Electronics and Connectors | |
Nominal Amplifier Power LF (continuous) | 1000 W |
Nominal Amplifier Power LF (peak) | 2000 W |
Nominal Amplifier Power MF (continuous) | 500 W |
Nominal Amplifier Power MF (peak) | 1000 W |
Nominal Amplifier Power HF (continuous) | 500 W |
Nominal Amplifier Power HF (peak) | 1000 W |
Input Type | Balanced |
Input Impeadance | 20 kohms |
Input Sensitivity | 6.2 V (+18 dBu) |

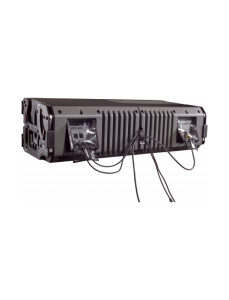

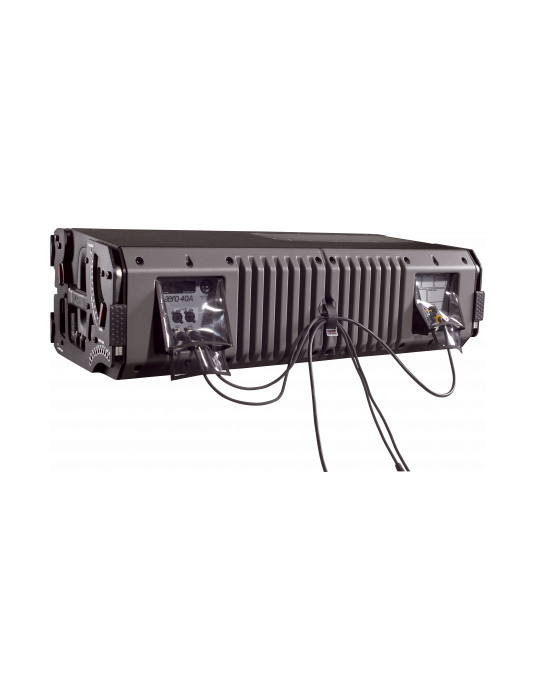

Audio Signal Input Connector | 1 x Female XLR |
Audio Signal Loop Thru Connector | 1 x Male XLR |
Audio/Data Input Connector | etherCON |
Control | DASnet™ |
Audio + Data Loop Thru Connector | etherCON |
AC Output Connector | powerCON TRUE1 |
Current Draw 230 V / 115 V | 3.0 A/6.0 A |
Enclosure | |
Enclosure Construction | Birch Plywood |
Enclosure Geometry | Trapezoidal 3.5º |
Rigging | Captive Rigging System |
Finish | ISO-flex Paint |
Color | Black |
Dimensions ( H x W x D ) | 320 x 1.012 x 520 mm 12,6 x 39,8 x 20,5 in |
Net Weight | 78,0 kg ( 172,0 lb ) |
Components | |
LF Driver | 8AN4 |
MF Driver | 12GNRC |
HF Driver | M-75N |
Horn/Waveguide | BM-8905 |
Shipping | |
Carton Dimensions ( H x W x D ) | 1.111 x 391 x 746 mm 43,7 x 15,4 x 29,4 in |
Shipping Weight | 84,0 kg ( 185,2 lb ) |
