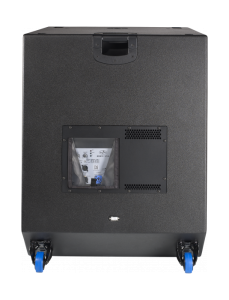

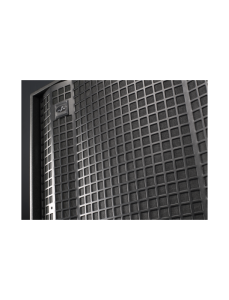

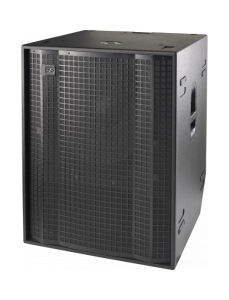

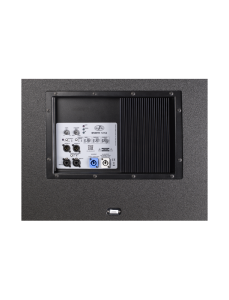

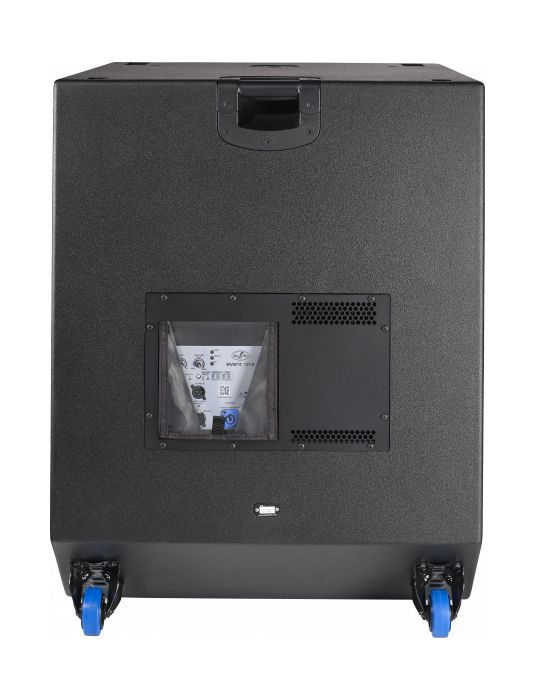

EVENT-121A
Features
Active direct radiating rear-loaded subwoofer system
1 x 21″ DAS 21LFN neodymium loudspeaker
3200Wpeak – 1600 Wcontinuous
Class D amplifier and digital signal processing (DSP)
Two balanced inputs with stereo filtered output connections
Variable low-pass filter 63 Hz-100 Hz
Top located pole mount socket for TRD-6 optional pole mount
Rear located wheels to ease transport
Top grade Birch cabinet construction
Durable ISO-flex finish
Applications
House of worship
Theatres, auditoria and performing arts centers
Live music clubs
Corporate A/V
Live sound touring/Rental services
| Performance | |
| Frequency Range (-10 dB) | 30 Hz – 125 Hz |
| Maximum Peak SPL at 1 m | 141 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power (continuous) | 1600 W |
| Nominal Amplifier Power (peak) | 3200 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 6.2 V (+18 dBu) |
| Audio Signal Input Connector | 2 x Female XLR |
| Audio Signal Loop Thru Connector | 2 x Male XLR |
| AC Output Connector | powerCON NAC3FCB |
| Current Draw 230 V / 115 V | 3.6 A/7.2 A |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Rectangular |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
| Dimensions ( H x W x D ) | 965 x 740 x 755 mm 38,0 x 29,1 x 29,7 in |
| Net Weight | 78,5 kg ( 173,1 lb ) |
| Components | |
| LF Driver | 21LFN |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 1.060 x 790 x 820 mm 41,7 x 31,1 x 32,3 in |
| Shipping Weight | 83,5 kg ( 184,1 lb ) |
Related products

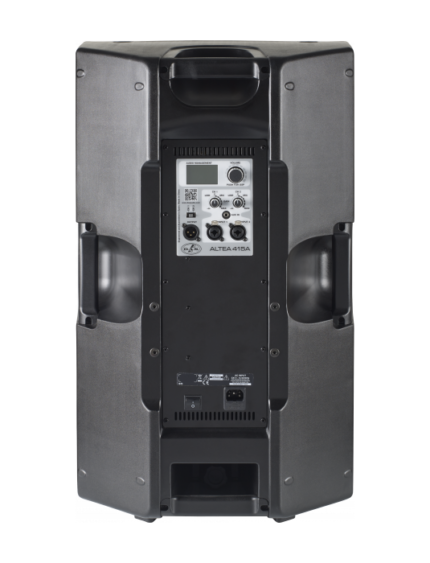

ALTEA 415A
Features
Lightweight multi-purpose system
Ultra lightweight Class D amplifier with SMPS
User definable 24-bit DSP with LCD screen
Presets: Live, Dance, Vocals, Bass Boost, Vocals & Mode
Stackable 3-band EQ
Standby Mode
Rigging points
Applications
Live sound reinforcement
Speech and vocals
Music playback in entertainment
A/V, and institutional venues
ARTEC-306
Features
1 x 6B low frequency loudspeaker
1 x M-26 compression driverRotatable 90º x 60º hornVertical or horizontal positioningVESA75/VESA100 standard threaded mounting points
AXU-A306 U-Bracket included
Applications
A/V systems and corporate events
Meeting rooms, classrooms, and exhibit areas
Installations in bars and clubs

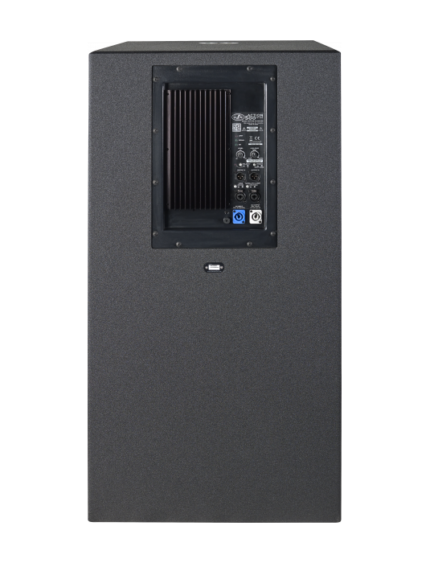

VANTEC-18A
