ACTION 525
Features
Passive two-way system
Birch plywood enclosure
Durable ISO-flex paint
Recommended processor: DSP-226
Recommended amplifier: PA series
Applications
Live sound reinforcement
Bands, DJ´s and performers
Speech and vocals
Music playback in entertainment
A/V, conferences and presentations
| Performance | |
| Frequency Range (-10 dB) | 47 Hz – 20 kHz |
| Horizontal Coverage (-6 dB) | 90º |
| Vertical Coverage | 60º |
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 700 W |
| Peak Power Handling | 2800 W |
| On-axis Sensitivity 1W/1 m | 99 dB SPL |
| Maximum Peak SPL at 1 m | 134 dB |
| Recommended Amplifier | PA-1500 |
| Connectors | |
| Audio Input Connector | 1 x speakON NL4 |
| Audio Output Connector | 1 x speakON NL4 |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
| Depth | 515 mm (20,3 in) |
| Dimensions ( H x W x D ) | 1.090 x 445 x 515 mm 42,9 x 17,5 x 20,3 in |
| Net Weight | 38,5 kg ( 84,9 lb ) |
| Components | |
| LF Driver | 15MI |
| HF Driver | M-44 |
| Horn/Waveguide | BC-916 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 1.165 x 515 x 560 mm 45,9 x 20,3 x 22,1 in |
| Shipping Weight | 41,5 kg ( 91,5 lb ) |
Related products

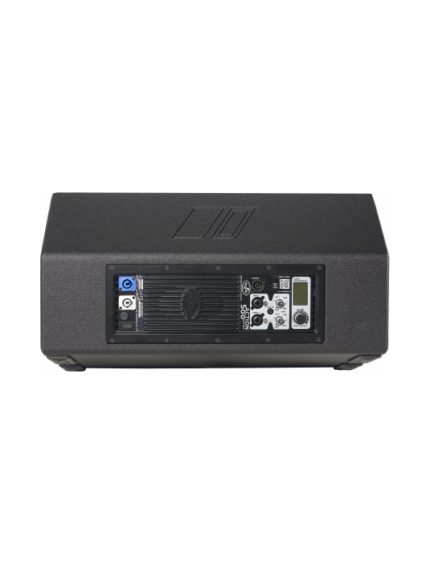

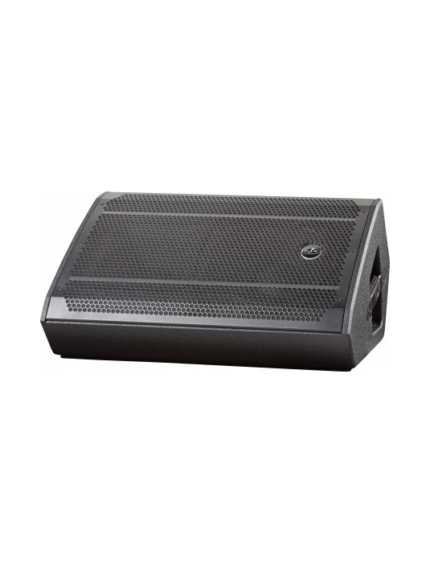

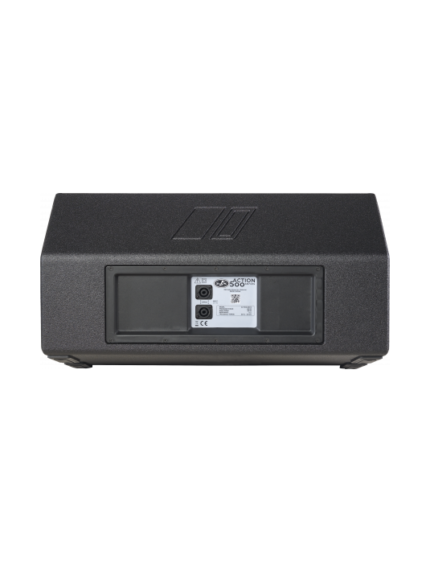

ACTION M512A
Features
Active monitor biamp system
Dual-channel 1000 Wpeak Class D amplifier
Birch plywood enclosure
Durable ISO-flex paint
DAScontrol™ interface for easy setup and adjustment
DSP with presets and LCD screen
Applications
Live sound reinforcement
Bands, DJ´s and performers
Speech and vocals
Music playback in entertainment
A/V, conferences and presentations

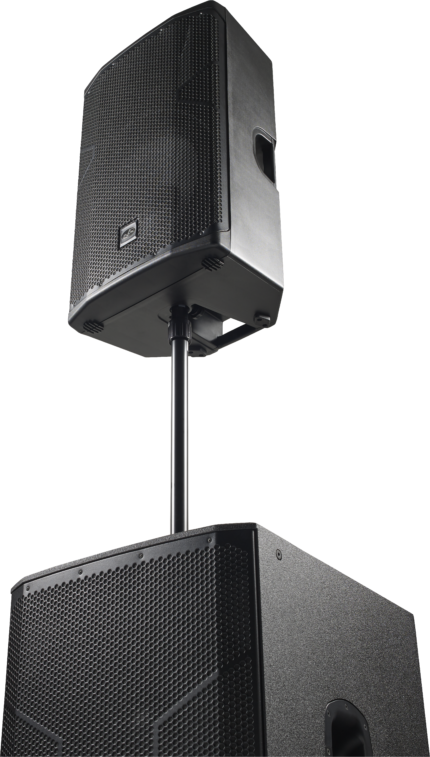

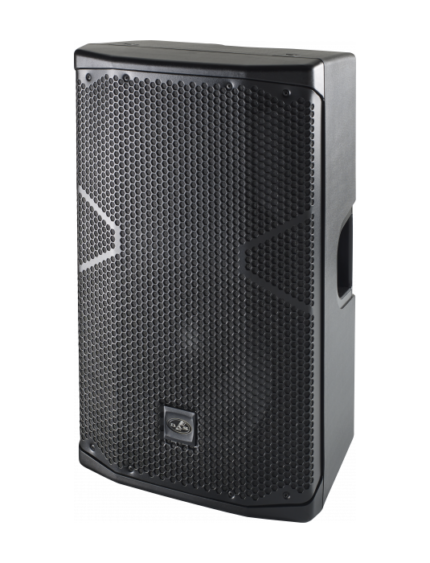

ALTEA 412A
Features
Lightweight multi-purpose system with monitor position
Ultra lightweight Class D amplifier with SMPS
User definable 24-bit DSP with LCD screen
Presets: Live, Dance, Vocals, Bass Boost, Vocals & Mode
Stackable 3-band EQ
Standby Mode
Rigging points
Applications
Live sound reinforcement
Speech and vocals
Music playback in entertainment
A/V, and institutional venues

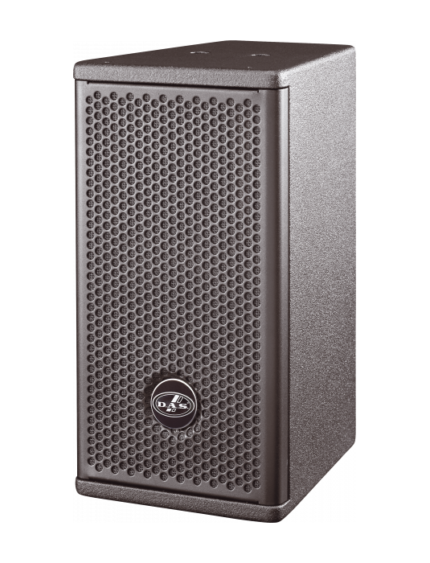

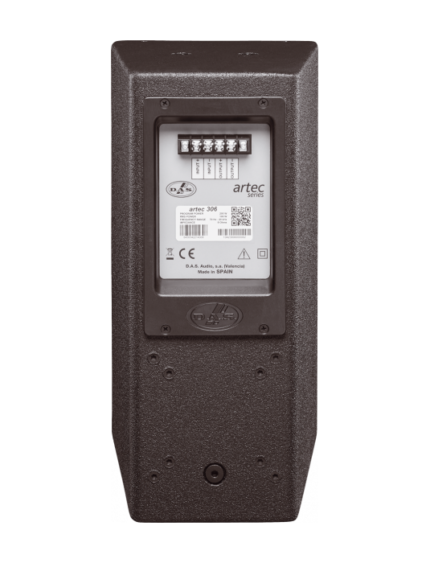

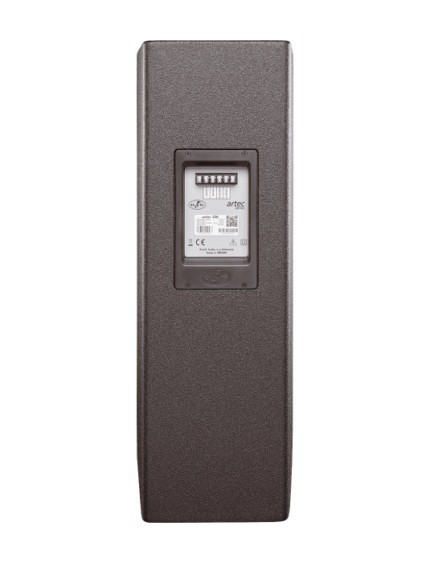

ARTEC-306
Features
1 x 6B low frequency loudspeaker
1 x M-26 compression driverRotatable 90º x 60º hornVertical or horizontal positioningVESA75/VESA100 standard threaded mounting points
AXU-A306 U-Bracket included
Applications
A/V systems and corporate events
Meeting rooms, classrooms, and exhibit areas
Installations in bars and clubs

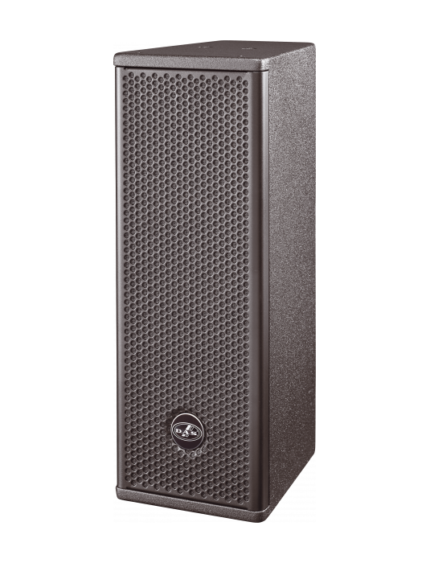

ARTEC-326
Features
2 x 6B low frequency loudspeakers
1 x M-26 compression driver
Rotatable 90º x 60º horn
Vertical or horizontal positioning
VESA75/VESA100 standard threaded mounting points
AXU-A326 U-Bracket included
Applications
A/V systems and corporate events
Meeting rooms, classrooms, and exhibit areas
Installations in bars and clubs

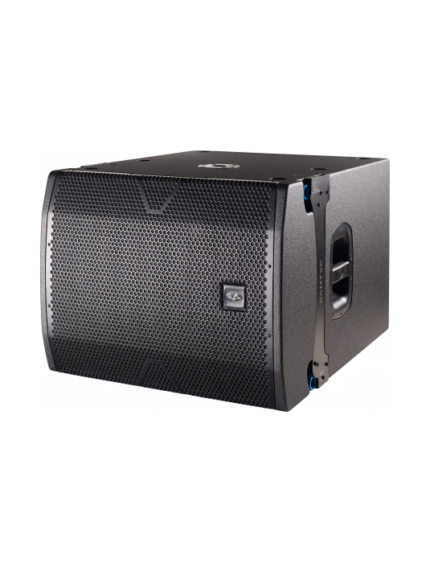

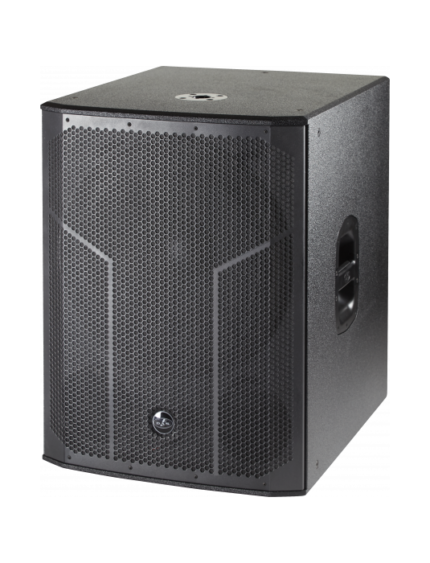

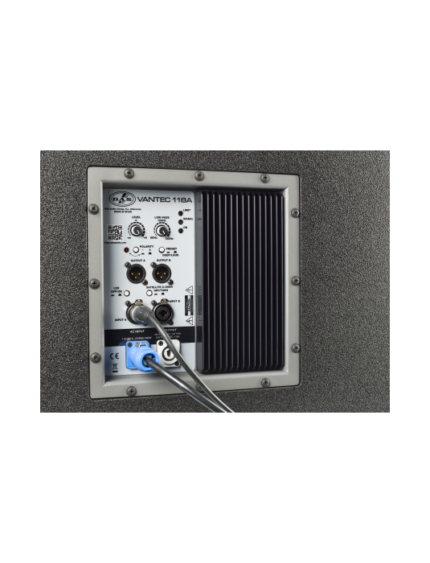

VANTEC-118A
Features
Active front-loaded subwoofer system
1 x 18″ DAS 18FW loudspeaker
Class D amplifier 2000 Wpeak
Digital signal processing (DSP)
Unique “Deep-Loud” bass EQ switch
Variable low-pass filter 80 Hz-125 Hz
LED ON/OFF switch on backplate
Rigging compatible with VANTEC-20A
Top located pole mount socket
Applications
Concerts and corporate A/V
Portable and live clubs
Concert halls, theaters and auditoriums
Houses of worship

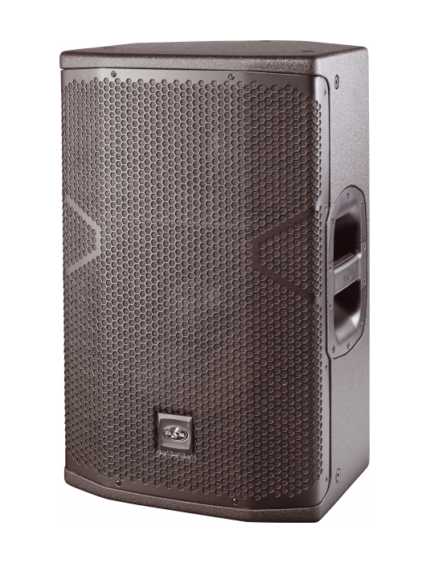

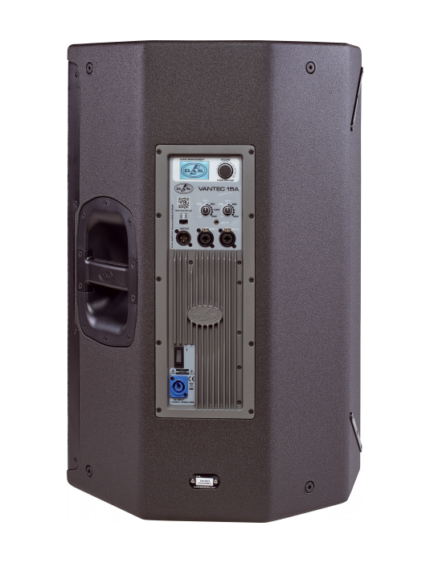

VANTEC-15A
