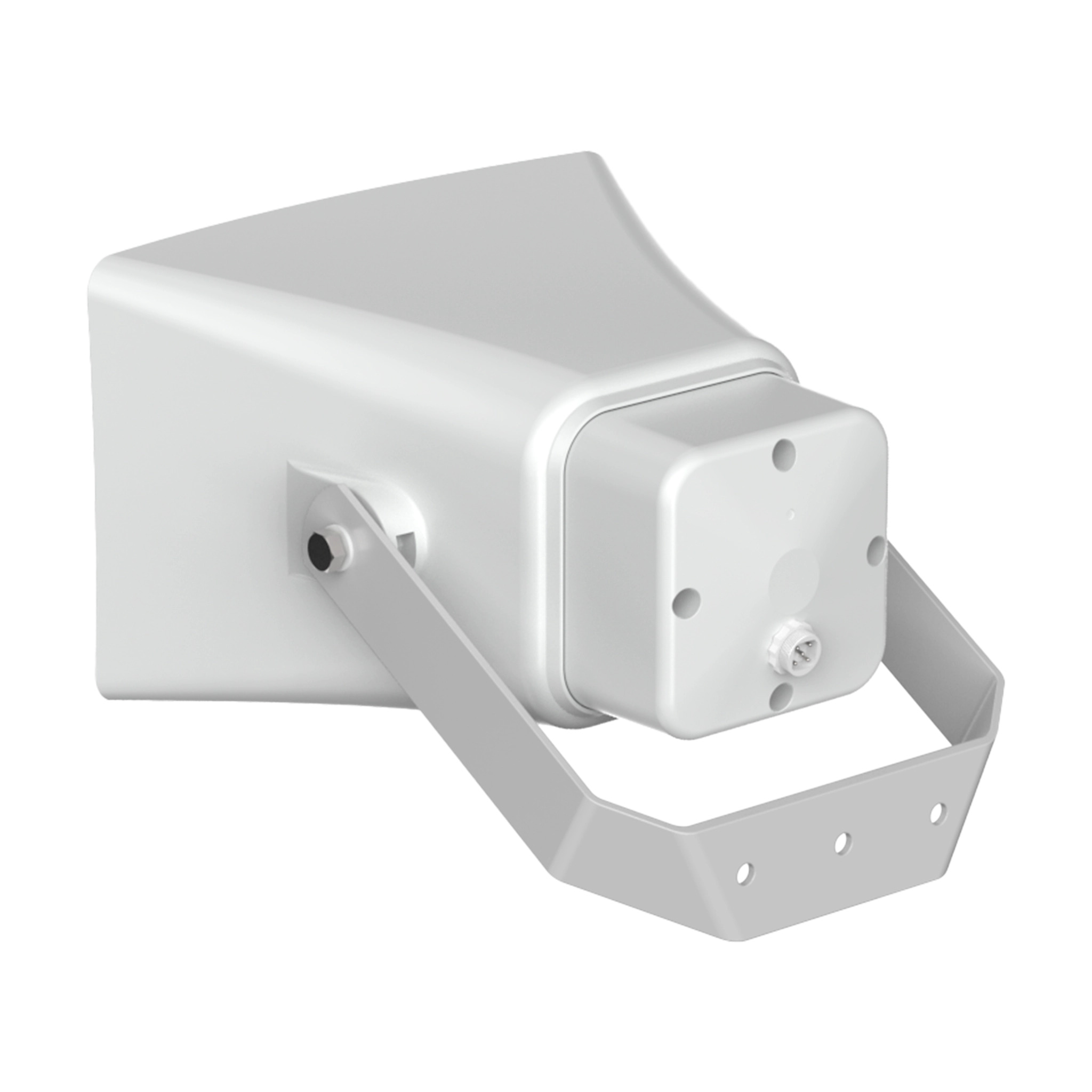

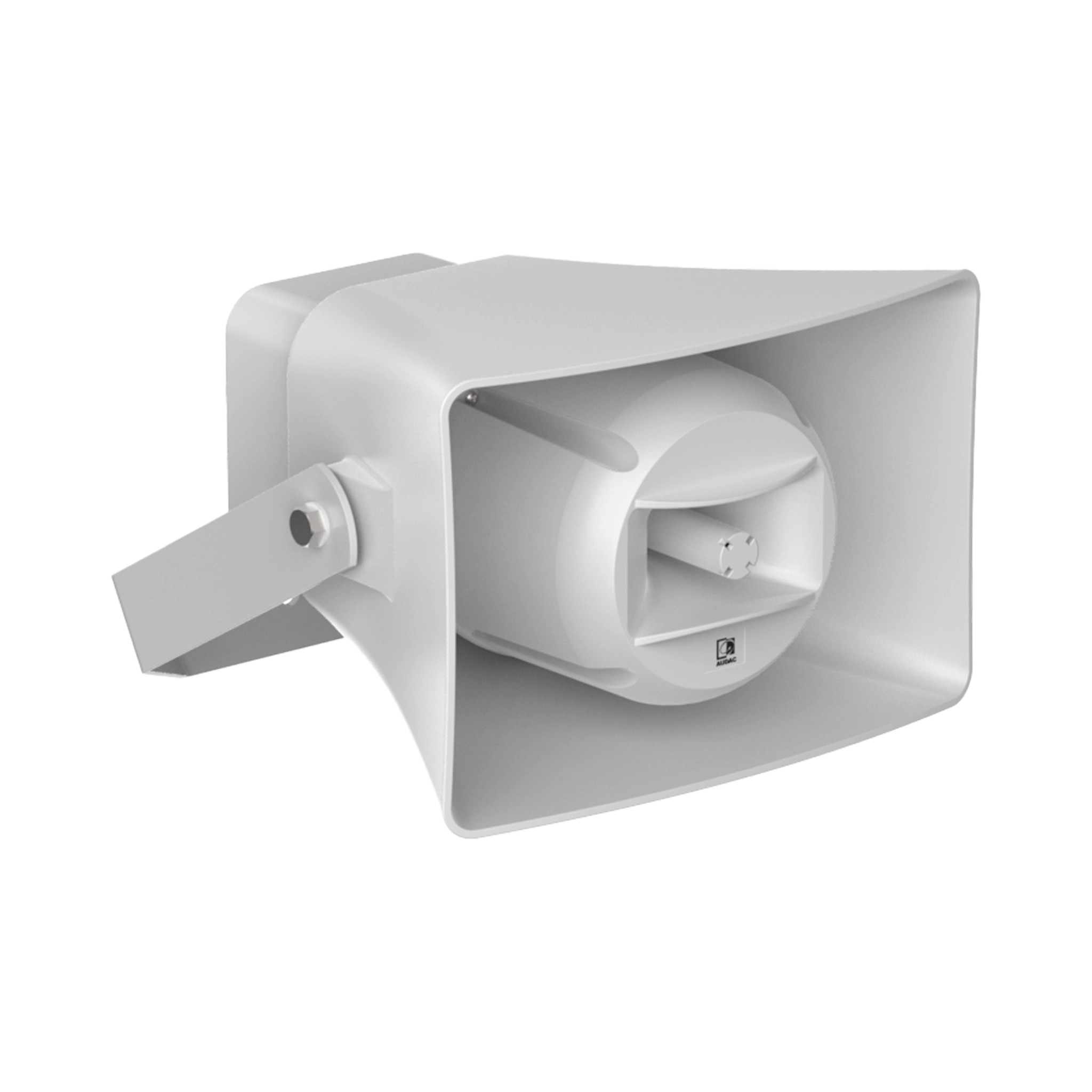

CHA530

2-Way horn loudspeaker 5″

System specifications

Speaker type		2-way horn speaker
Peak power handling		120 W
Program power handling		60 W
RMS/AES power handling		30 W
Inputs	Connector	-pin Euro Terminal block (Balanced)
Sensitivity (1W/1m)		98 dB
Line Transformer Tappings	1	167 Ω – 100 V / Not used – 70 V / 30 W
	2	333 Ω – 100 V / 30 W – 70 V / 15 W
	3	667 Ω – 100 V / 15 W – 70 V / 7.5 W
	4	1333 Ω – 100 V / 7.5 W – 70 V / 3.75 W
Sound Pressure (Max. W/1m)	@ 100 V	113 dB
Frequency	Response (± 3 dB)	110 Hz – 16 kHz
Crossover	Type	Passive built-in
Dispersion	Horizontal	110°
	Vertical	60°
Drivers	HF	1″ HF Horn tweeter
		5” MF / LF Woofer
Ingress Protection rating		IP66
Connection		AWX5™ waterproof

Product Features

Recommended applications

Museums & Themeparks

Events

Corporate

Sporting facilities

Retail
