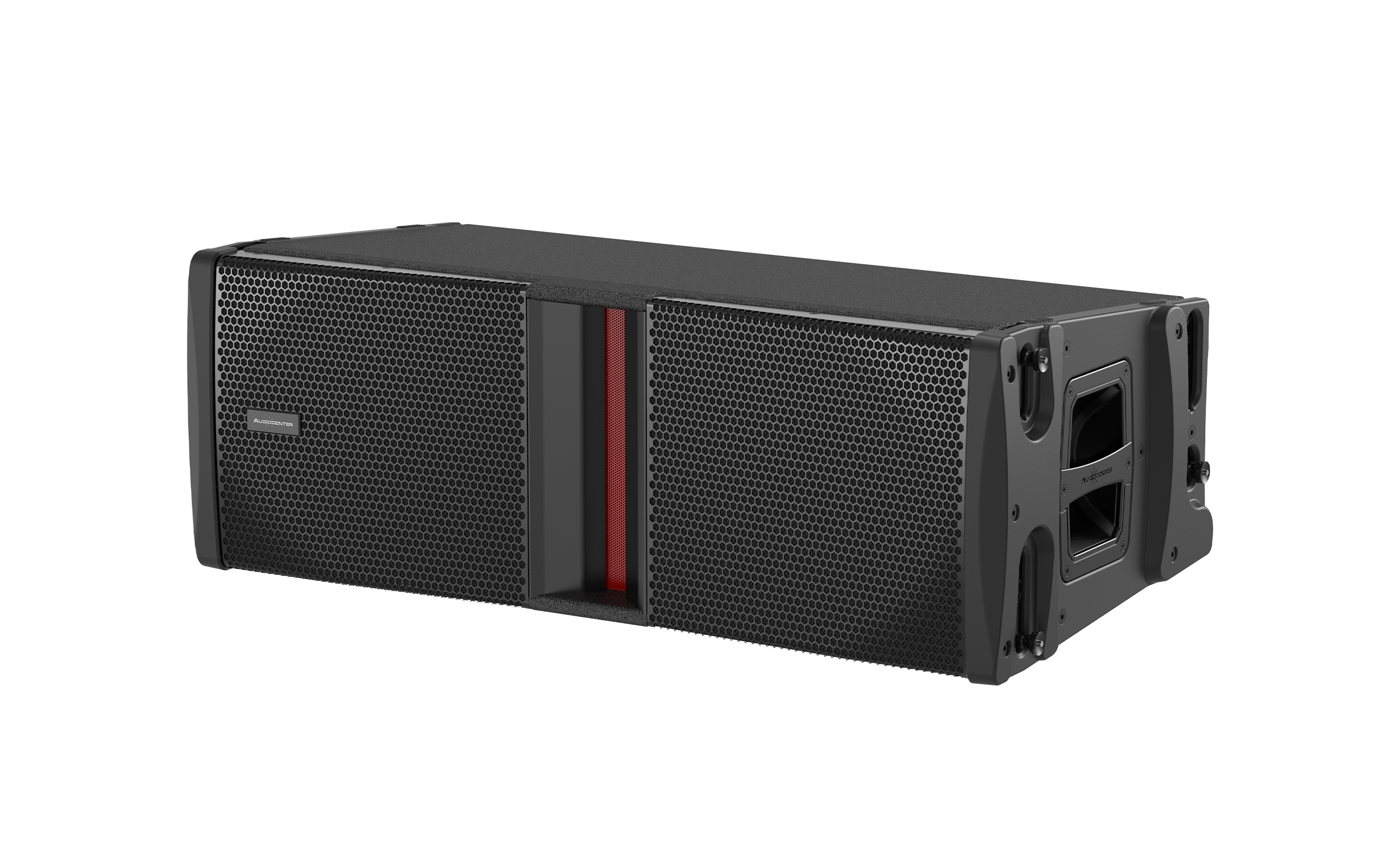

AVANDA 210A
Dual 10” two-way active DSP controlled line array loudspeaker
AVANDA 210A is a dual 10” two-way active DSP controlled line array loudspeaker. Designed for medium to large-scale sound reinforcement applications and mid-to-high-end fixed installations
Description
| Type | Dual 10” two-way active DSP controlled line array loudspeaker |
| Frequency Response(-10dB) | 67Hz-20kHz |
| Horizontal Coverage | 90° |
| Vertical Coverage | Splay angle dependent |
| Maximum Calculated SPL/1M (Continuous/Peak) | 132dB/138dB |
| HF | Customized Neodymium driver, 2×3” voice coil,1.4” exit |
| MF | / |
| LF | Customized 2×10” driver, 2.5”voice coil |
| DSP | |
| Processor | 96kHz signal sampling frequency, FIR filtering |
| Presets | 4 Units,8 Units,12 Units |
| AMPLIFIER | |
| Amplifier Circuitry | Class D |
| Power(RMS standards) | 1600W |
| Peak Power | 3200W |
| Frequency Response(1W 8Ω 2ch) | 20Hz-20kHz(±0.5dB) |
| Intermodulation Distortion (20Hz-20kHz, half power) | ＜0.05% |
| Total Harmonic Distortion (20Hz-20kHz，half power) | ＜0.05% |
| Cooling System | Cooling with fans, air convection |
| Protection | DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection |
| Signal Input Connectors | Female XLR |
| Signal Output Connectors | Male XLR |
| Power Input Connectors | Power connector |
| Power Output Connectors | Power connector |
| AC Power Operating Range | 100V-130V~ or 220V-240V~(±10%,50/60Hz) |
| Power consumption(1/8 output power) | 142W |
| CABINET | |
| Cabinet Material | Russian birch plywood |
| Angle Adjustment | 0°, 1°, 2°, 4°, 6°, 8°, 10° |
| Coating | Durable Polyurea Coating |
| Cabinet Color | Black is the default color. Contact Audiocenter for customization |
| Grille | Iron mesh |
| Handles | 2 side |
| Optional Accessories | Frame for flying and ground stacking / Flightcase with 100mm wheels / Rain bag / Dolly |
| Speaker Dimension(W×H×D) | 830×293×420mm |
| Carton Dimensions (W×H×D) | 936×526×393mm |
| Net Weight | 39.0kg |
| Shipping Weight | 42.0kg |
| Technical Support and After-sales Service | Global application support team，EASE GLL files available |
