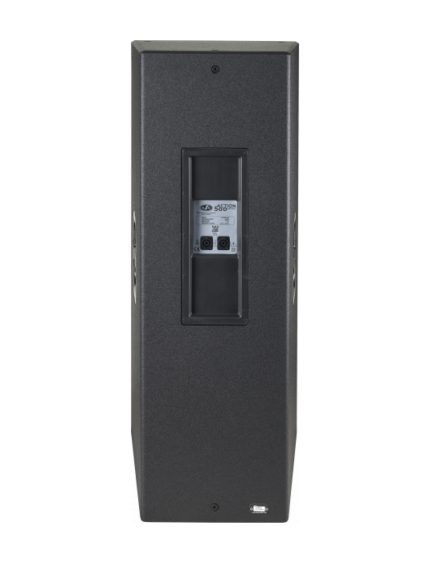

ALTEA 712A
Features
Multi-purpose system with monitor position
Ultra lightweight Class D amplifier with SMPS
Stereo music streaming in high definition
User definable 24-bit DSP with LCD screen
5 voicing presets
User-defineable memories
Stackable 3-band EQ
Standby Mode
Rigging points
Applications
Concerts and corporate A/V
Portable and live clubs
Theaters and auditoriums
Houses of worship
| Performance | |
| Frequency Range (-10 dB) | 60 Hz – 20 kHz |
| Horizontal Coverage (-6 dB) | 90º |
| Vertical Coverage | 60º |
| Maximum Peak SPL at 1 m | 130 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power (continuous) | 750 W |
| Nominal Amplifier Power (peak) | 1500 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 1.95 V (+8 dBu) |
| Audio Signal Input Connector | 2 x Female XLR |
| AUX Input | 1 x 3.5 mm Mini Jack |
| Audio Signal Loop Thru Connector | 1 x Male XLR |
| Control | DASlink™ DAScontrol™ |
| Current Draw 230 V / 115 V | 1.5 A/3.0 A |
| Enclosure | |
| Enclosure Construction | Polypropylene |
| Enclosure Geometry | Trapezoidal |
| Rigging | M8 Rigging Points |
| Color | Black |
| Dimensions ( H x W x D ) | 655 x 380 x 350 mm 25,8 x 15,0 x 13,8 in |
| Net Weight | 17,5 kg ( 38,6 lb ) |
| Components | |
| LF Driver | 12F4 |
| HF Driver | M-28 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 740 x 450 x 415 mm 29,1 x 17,7 x 16,3 in |
| Shipping Weight | 20,5 kg ( 45,2 lb ) |
