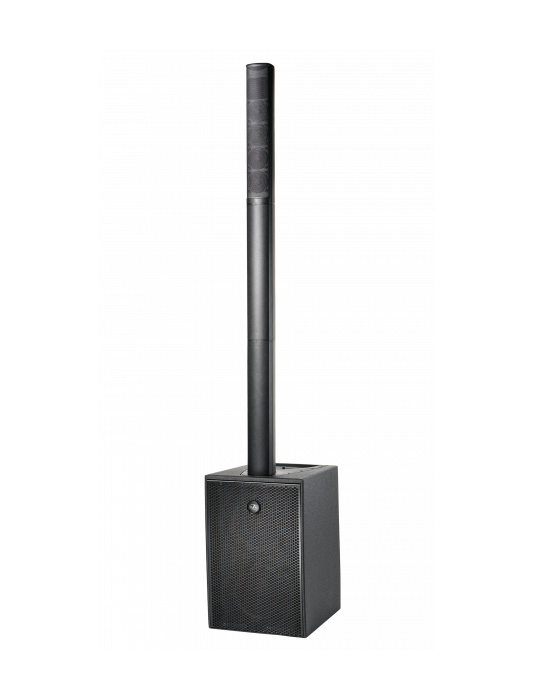

ALTEA DUO 20A
Features
3-Way Powered portable column system
2000W peak
127 dB max peak SPL
2 x 10” compact subwoofer
4 x 3” + 1 x 1″ Neodymium Compression driver
Ultra lightweight Class D 2CH amplifier with SMPS
Stereo music streaming in high definition, DASLink GM
User definable 24-bit DSP with LCD screen, DAScontrol
3 voicing presets, 3 Band EQ
Ultra-Low Power consumption 1.5A at 230V
Applications
Corporate A/V
Conferencing
Portable and live clubs
Houses of worship
DJ mobile parties
| Performance | |
| Frequency Range (-10 dB) | 37 Hz – 20 kHz |
| Horizontal Coverage (-6 dB) | 100º |
| Vertical Coverage | 50º |
| Maximum Peak SPL at 1 m | 127 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power (continuous) | 1000 W |
| Nominal Amplifier Power (peak) | 2000 W |
| Nominal Amplifier Power LF (continuous) | 500 W |
| Nominal Amplifier Power LF (peak) | 1000 W |
| Nominal Amplifier Power HF (continuous) | 500 W |
| Nominal Amplifier Power HF (peak) | 1000 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 1.95 V (+8 dBu) |
| Audio Signal Input Connector | 2 x XLR/TRS Combo Jack Line/Mic 1 x Wireless Stereo Bluetooth 1 x 1/4 TRS HI-Z Instrument |
| AUX Input | 1 x 3.5 mm Mini Jack |
| Audio Signal Loop Thru Connector | 1 x Male XLR |
| Control | DAScontrol™ DASlink GM™ |
| Current Draw 230 V / 115 V | 1.5 A/3.0 A |
| Enclosure | |
| Enclosure Construction | Polypropylene + Birch Plywood |
| Finish | Textured |
| Color | Black |
| Dimensions ( H x W x D ) | 2.000 x 360 x 445 mm 78,0 x 14,2 x 17,5 in |
| Net Weight | 31,0 kg ( 68,3 lb ) |
| Components | |
| LF Driver | 10MG |
| MF Driver | 3PN |
| HF Driver | M-27N |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 678 x 565 x 708 mm 26,7 x 22,2 x 27,9 in |
| Shipping Weight | 39,0 kg ( 85,9 lb ) |
Related products
ACTION S118A
Features
Active horn-loaded subwoofer system
3200 Wpeak Class D amplifier
63 Hz – 100 Hz variable LPF
Deep – Loud EQ switch
Birch plywood enclosure
Durable ISO-flex paint
Applications
Live sound reinforcement
Bands, DJ´s and performers
Speech and vocals
Music playback in entertainment
A/V, conferences and presentations

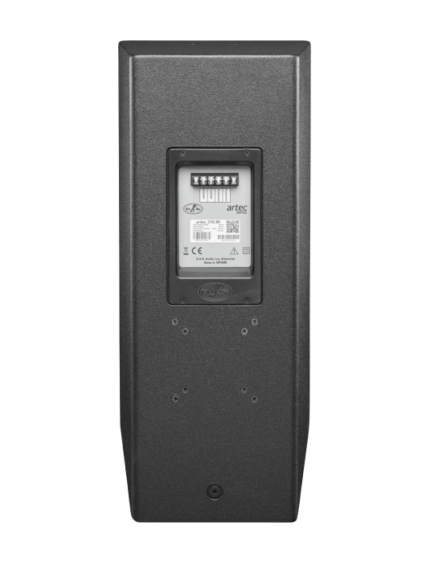

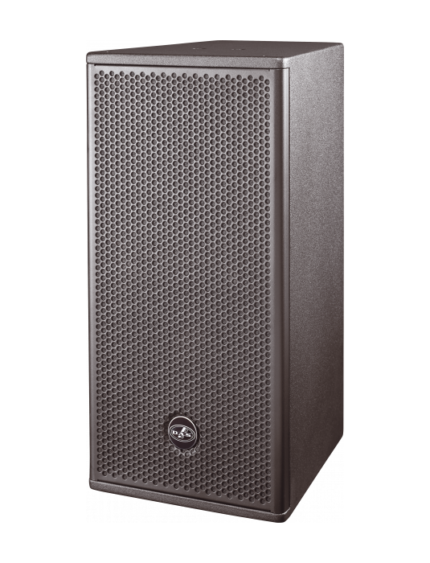

ARTEC-310.96
