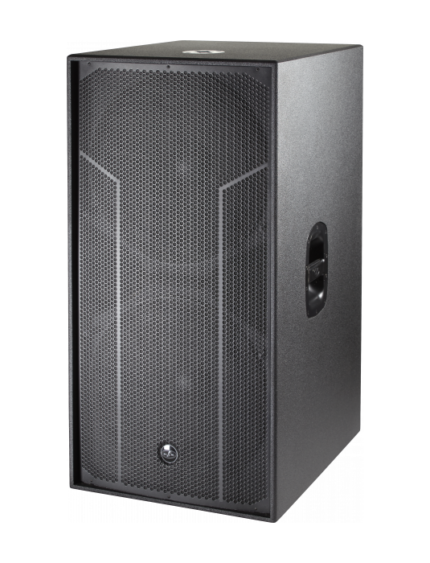

ACTION 525A
Features
Active biamp system
Dual-channel 1000 Wpeak Class D amplifier
Birch plywood enclosure
Durable ISO-flex paint
DAScontrol™ interface for easy setup and adjustment
DSP with presets and LCD screen
Applications
Live sound reinforcement
Bands, DJ´s and performers
Speech and vocals
Music playback in entertainment
A/V, conferences and presentations
| Performance | |
| Frequency Range (-10 dB) | 45 Hz – 20 kHz |
| Horizontal Coverage (-6 dB) | 90º |
| Vertical Coverage | 60º |
| Maximum Peak SPL at 1 m | 134 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power (continuous) | 500 W |
| Nominal Amplifier Power (peak) | 1000 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 1.95 V (+8 dBu) |
| Audio Signal Input Connector | 2 x Female XLR |
| AUX Input | 1 x 3.5 mm Mini Jack |
| Audio Signal Loop Thru Connector | 1 x Male XLR |
| Control | DAScontrol™ |
| Current Draw 230 V / 115 V | 1.1 A/2.2 A |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
| Dimensions ( H x W x D ) | 1.090 x 445 x 515 mm 42,9 x 17,5 x 20,3 in |
| Net Weight | 39,5 kg ( 87,1 lb ) |
| Components | |
| LF Driver | 15MI |
| HF Driver | M-44 |
| Horn/Waveguide | BC-916 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 1.165 x 515 x 560 mm 45,9 x 20,3 x 22,1 in |
| Shipping Weight | 43,5 kg ( 95,9 lb ) |
Related products
ACTION M512A
Features
Active monitor biamp system
Dual-channel 1000 Wpeak Class D amplifier
Birch plywood enclosure
Durable ISO-flex paint
DAScontrol™ interface for easy setup and adjustment
DSP with presets and LCD screen
Applications
Live sound reinforcement
Bands, DJ´s and performers
Speech and vocals
Music playback in entertainment
A/V, conferences and presentations

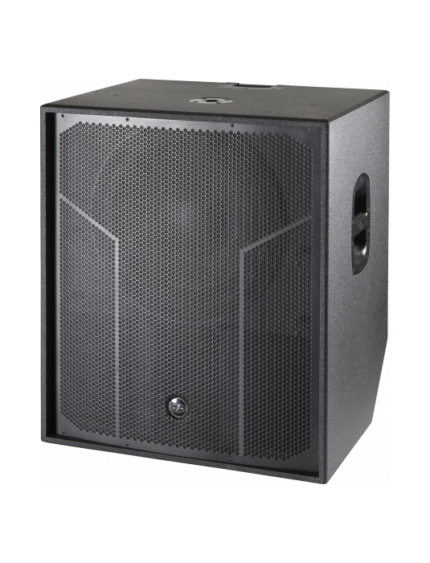

ACTION S118A
Features
Active horn-loaded subwoofer system
3200 Wpeak Class D amplifier
63 Hz – 100 Hz variable LPF
Deep – Loud EQ switch
Birch plywood enclosure
Durable ISO-flex paint
Applications
Live sound reinforcement
Bands, DJ´s and performers
Speech and vocals
Music playback in entertainment
A/V, conferences and presentations

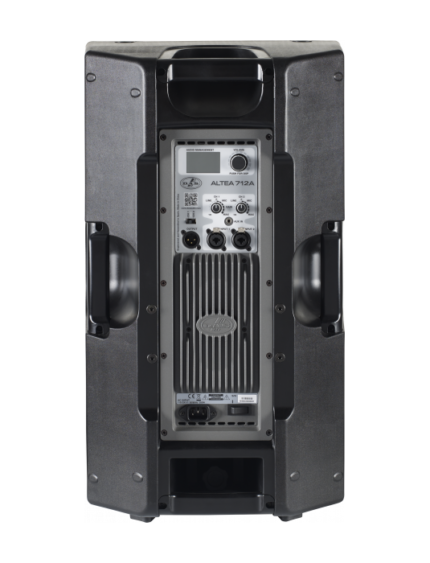

ALTEA 712A
Features
Multi-purpose system with monitor position
Ultra lightweight Class D amplifier with SMPS
Stereo music streaming in high definition
User definable 24-bit DSP with LCD screen
5 voicing presets
User-defineable memories
Stackable 3-band EQ
Standby Mode
Rigging points
Applications
Concerts and corporate A/V
Portable and live clubs
Theaters and auditoriums
Houses of worship

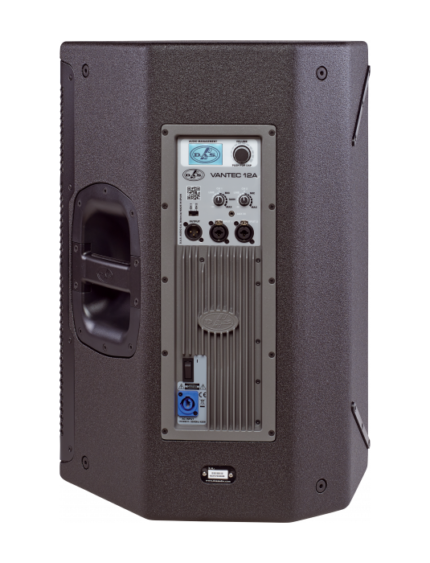

VANTEC-12A
Features
Compact multi-purpose system with monitor position
Ultra lightweight Class D amplifier with SMPS
User definable 24-bit DSP with LCD screen
Presets: Live, Dance, Vocals, Bass Boost, Vocals & Mode
Stackable 3-band EQ
High-Definition wireless streaming of music in stereo
Pole mount socket with dual angles 0º/10º
Rigging points
Applications
Concerts and corporate A/V
Portable and live clubs
Theaters and auditoriums
Houses of worship
VANTEC-15A
Features
Compact multi-purpose system with monitor position
Ultra lightweight Class D amplifier with SMPS
User definable 24-bit DSP with LCD screen
Presets: Live, Dance, Vocals, Bass Boost, Vocals & Mode
Stackable 3-band EQ
High-Definition wireless streaming of music in stereo
Pole mount socket with dual angles 0º/10º
Rigging points
Applications
Concerts and corporate A/V
Portable and live clubs
Theaters and auditoriums
Houses of worship

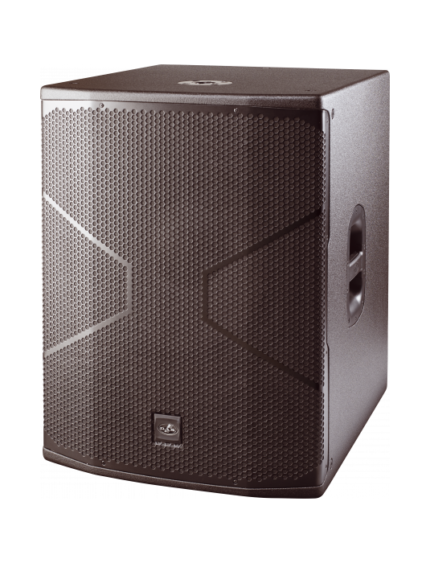

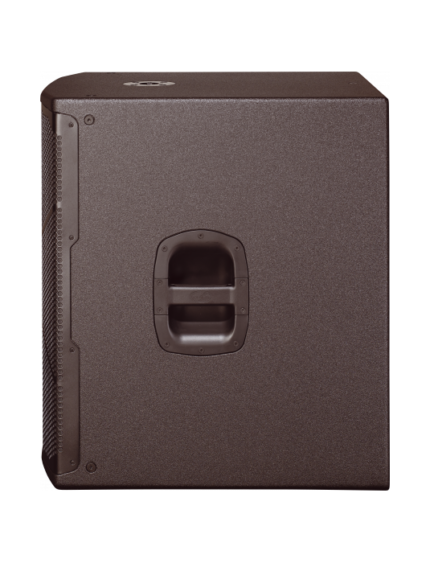

VANTEC-18A
