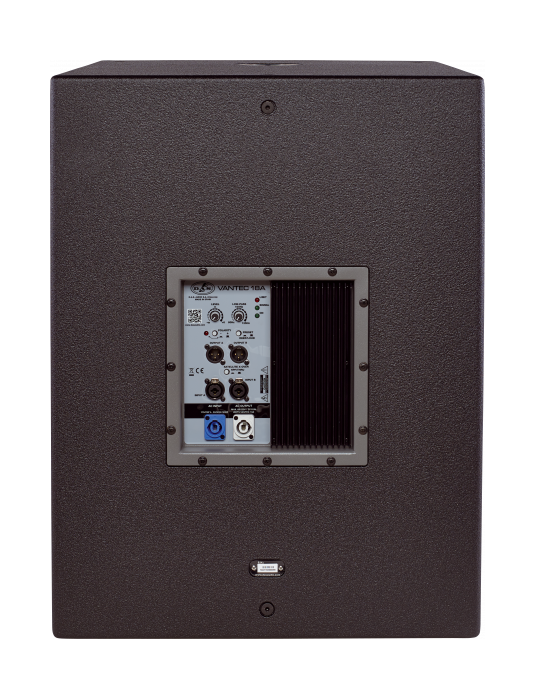

VANTEC-18A
Features
Powered subwoofer system
High output 18LX loudspeaker
Polarity switch (0º180º)
Filtered output defeat switch
Variable 80-125 Hz lowpass filter
Gain control
Rigging points
Applications
Concerts and corporate A/V
Portable and live clubs
Concert halls, theaters and auditoriums
Houses of worship
| Performance | |
| Frequency Range (-10 dB) | Loud: 35 Hz – 125 Hz – Deep: 30 Hz – 125 Hz |
| Maximum Peak SPL at 1 m | 134 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power (continuous) | 1000 W |
| Nominal Amplifier Power (peak) | 2000 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 3 V (+12 dBu) |
| Audio Signal Input Connector | 2 x Female XLR |
| Audio Signal Loop Thru Connector | 2 x Male XLR |
| AC Output Connector | powerCON NAC3FCB |
| Current Draw 230 V / 115 V | 1.5 A/3.0 A |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Rectangular |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
| Dimensions ( H x W x D ) | 720 x 545 x 655 mm 28,3 x 21,5 x 25,8 in |
| Net Weight | 40,5 kg ( 89,2 lb ) |
| Components | |
| LF Driver | 18LX |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 820 x 616 x 726 mm 32,3 x 24,3 x 28,6 in |
| Shipping Weight | 44,0 kg ( 97,0 lb ) |
