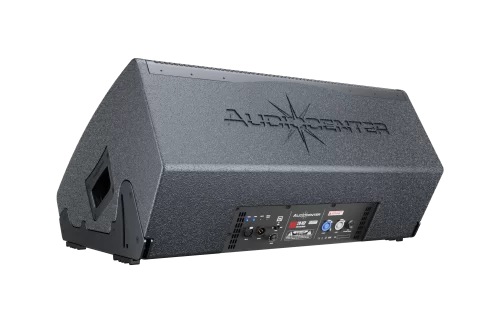

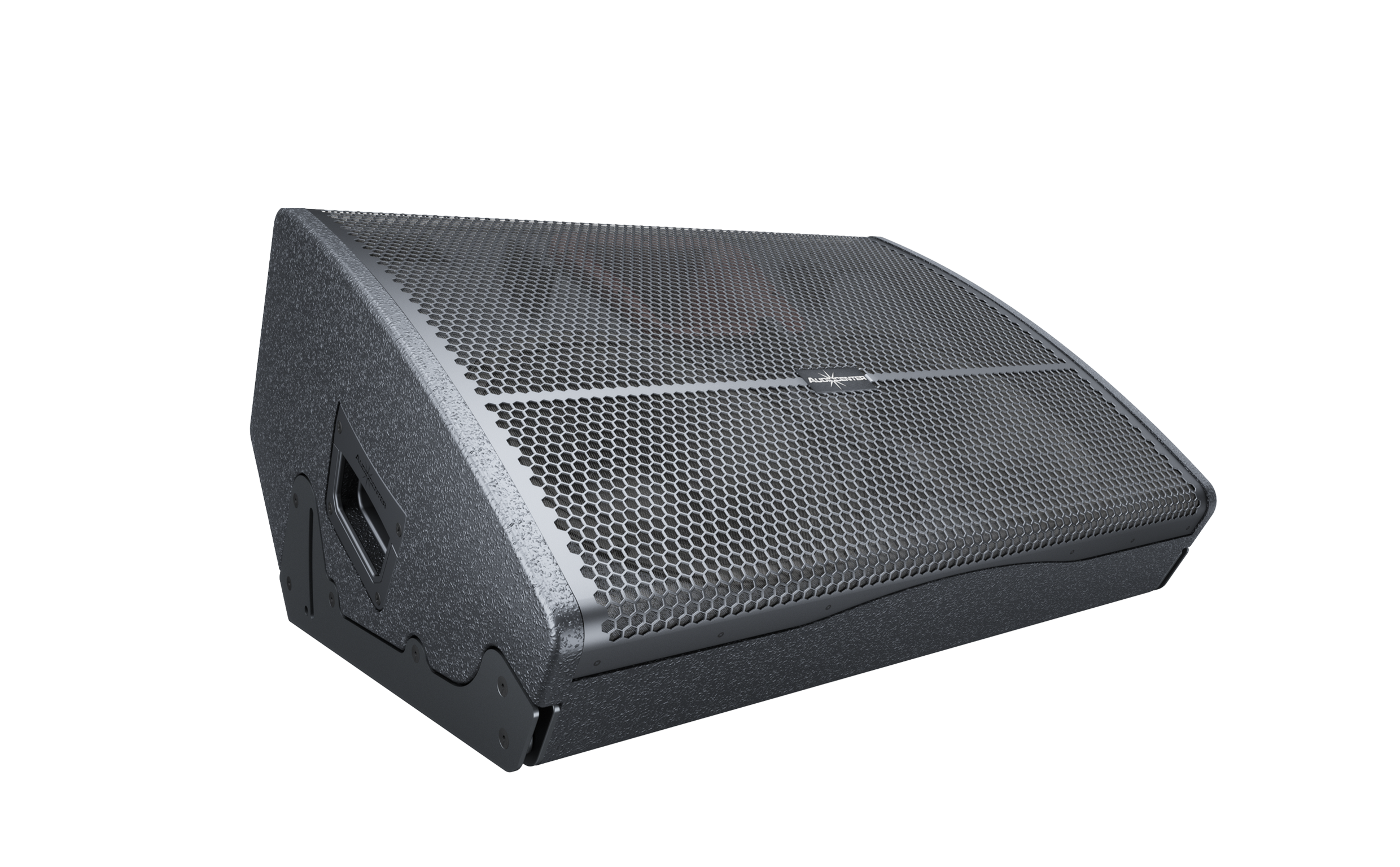

WM210-DSP
Active DSP wedge monitor
WM-DSP series is Audiocenter’s latest active DSP controlled wedge monitor speaker with high-output, reliability and supreme performance.
Type
Active DSP-controlled Wedge Monitor loudspeaker
Frequency Response(-10dB)
55Hz-20kHz
Horizontal Coverage
60° x 40°（Live band），60° x 60°（Stage）
Maximum Calculated SPL/1M (Continuous/Peak)
126dB/132dB
HF Driver
Customized driver, 3” voice coil and 1.4”exit
LF Driver
Customized 2×10” driver, 2.5” voice coil
DSP
Processor
96kHz signal sampling frequency
Presets
FLAT, VOCAL, DRUM
AMPLIFIER
Amplifier Circuitry
Class D
Power(RMS standards）
1600W
Peak Power
3200W
Frequency Response(1W 8Ω 2ch)
20Hz-20kHz(±0.5dB)
Intermodulation Distortion (20Hz-20kHz, half power)
＜0.05%
Total Harmonic Distortion (20Hz-20kHz, Rated power 8Ω)
＜0.05%
Cooling System
Cooling with fans, air convection
Protection
DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection
Signal Input
Female XLR
Signal Output
Male XLR
Power Input
Power connector
Power Output
Power connector
Working Voltage
100V-130V~ or 220V-240V~ (±10%,50/60Hz)
Power consumption(1/8 output power)
117W
Cabinet
Cabinet Material
CNC made of Russian birch plywood
Cabinet Color
Black is the default color. Contact Audiocenter for customization
Grille
Iron mesh
Handles
2 side
Cabinet monitoring Angle
30°/35°/40°/45°
Optional Accessories
Cover / Flightcase
Speaker Dimension(W×H×D)
620x338x465mm
Carton Dimensions(W×H×D)
466x725x542mm
Net Weight
33.0 kg
Shipping Weight
35.0 kg
