Article number: | HI-X3CM-V |
---|---|
EAN: | 4049371808613 |
Brand: | HICON |
Application: | audio |
Colour: | nickel |
Model: | XLR BASIC |
Style variant: | straight |
Gender: | male |
Material: | metal |
Coding: | transparent |
Codable: | yes |
Pole number: | 3-pole |
Connector / Socket: | male connector |
Type of contact: | Soldering |
Contact coating: | silver plated |
Mounting: | Cable |
Cable diameter min. [mm]: | 3,5 |
Cable diameter min. [“]: | 0.1378 |
Max. cable diameter [mm]: | 7 |
Max. cable diameter [“]: | 0.2756 |
HI-X3CM-V

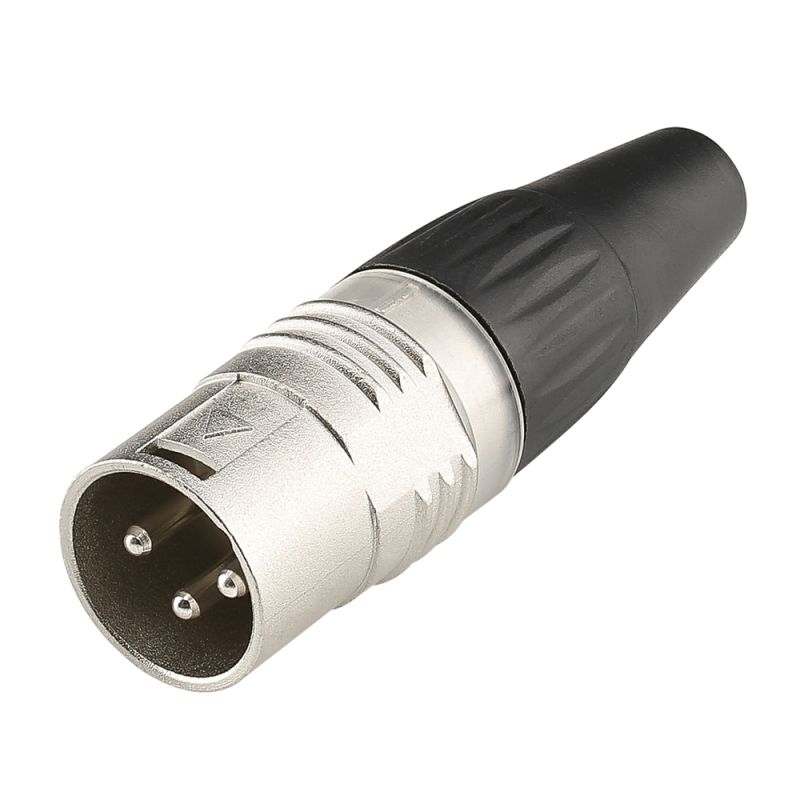

HICON XLR BASIC, 3-pole male, silver-plated contacts, nickel-plated metal housing, conductive surface, black plastic cap, 3-chuck collet strain relief
Miscellaneous:
- With transparent code ring for your individuals labels!
- Cap: plastic
Categories: HICON, XLR CONNECTOR
Description
Reviews (0)
Be the first to review “HI-X3CM-V” Cancel reply
Shipping & Delivery
Related products
HI-J35S02
HICON Mini-jack (3,5mm), 3-pole , metal-, Soldering-male connector, gold plated contact(s), straight, black
Little big man
The 3.5 mm (1/8“) mini jack connectors can be used on countless compact devices like MP3 players, sound cards, bodypacks etc. Here the HICON range offers a wide array of special features such as those versions
• HI-J35S-SCREW-M/-Fwith screw lock for mobile applications (e.g. bodypacks)
• HI-J35S02/T02 with big cable holder (for twin cables, thick cables)
• HI-J35S03 with compact design
• HI-J35M04/S04 with chuck strain relief (for high tensile forces)
• HI-J3563S with 6.3 mm (1/4“) screw adapter (for headphones etc.)
• HI-J35SA, 90° angled
All variants have genuine gold-plated solid pins and come with a 5-year warranty.
HI-J63MP
HI-LK085MP
HICON Round LK, arrangement 40-56, size 16, 85-pole , metal-, Panel connector, Bajonet, black
Technical Data: - Colour: black - Colour detailed: black - Style variant: Panel connector - Gender: male - Material: metal - Pole number: 85-pole - Cable outlet: straight - Closure: Bajonet - Design size: Round LK, arrangement 40-56, size 16HI-LKPIN-F18G
HI-X3CF
HI-X3CF-B
HI-X3CM-B
HICON XLR, water- and dustproof IP67 while connected , 3-pole , metal-male connector, gold plated contact(s), straight, black
A true all-rounder...
is the new HICON XLR connector HI-MARLIN. This connector does not only look good and lies ergonomically in the hand; due to its special design it also solves many problems an installation or event technician might be faced with.
These HICON HI-MARLIN XLR connectors, which are water- and dustproof according to IP67, repel a direct water jet or infiltrating moisture and may even be put under water without impairing its function.
Many new cables of the professional audio technology sector have a gas-injected foam insulation, which is why standard chuck strain reliefs are not ideal. They would squash the delicate wire insulations, thereby affecting the electrical values. Here the lamellar seal with internal grommet offers the perfect solution. The pressure of the strain relief is evenly spread over the entire cable diameter and squeezes no bumps into the jacket and insulation material. Special emphasis is placed on the locking device, which is very convenient and extremely durable. It has no long spring travels and the pressure spring-loaded mechanism is located in the locking knob instead of the contact base, as is usually the case. This also guarantees an easy and fuss-free mounting or cable assembly.
These connectors are loyal companions in particularly wet situations such as the installation in leisure parks, near the coast, in ship and boat building, with outdoor festivities like Christmas markets, funfairs, skiing events, in sediment technology etc.
The HICON HI-MARLIN XLR connectors are salt water and UV resistant.
Advantages:
- No infiltration of water, dirt, moisture, sand
- Water- and dustproof according to IP67 while connected
- Very good handling with pleasant plug-in sensation
- AES/EBU conform (no vibration sensor)
- Especially cable-protecting strain relief
- High mating cycles due to intelligent, zero-wear locking mechanism
- Easy and fast assemble
Application:
- Installation at outdoor events, in ship and boat building, skiing events etc.
- Permanent connections in coastal areas
