Article number: | HI-J35S02 |
---|---|
EAN: | 4049371803458 |
Brand: | HICON |
Application: | audio |
Colour: | black |
Model: | Mini-jack (3,5mm) |
Style variant: | straight |
Gender: | male |
Material: | metal |
Coding: | none |
Codable: | yes |
Pole number: | 3-pole |
Connector / Socket: | male connector |
Type of contact: | Soldering |
Contact coating: | gold plated |
Mounting: | Cable |
Max. cable diameter [mm]: | 8,4 |
Max. cable diameter [“]: | 0.3307 |

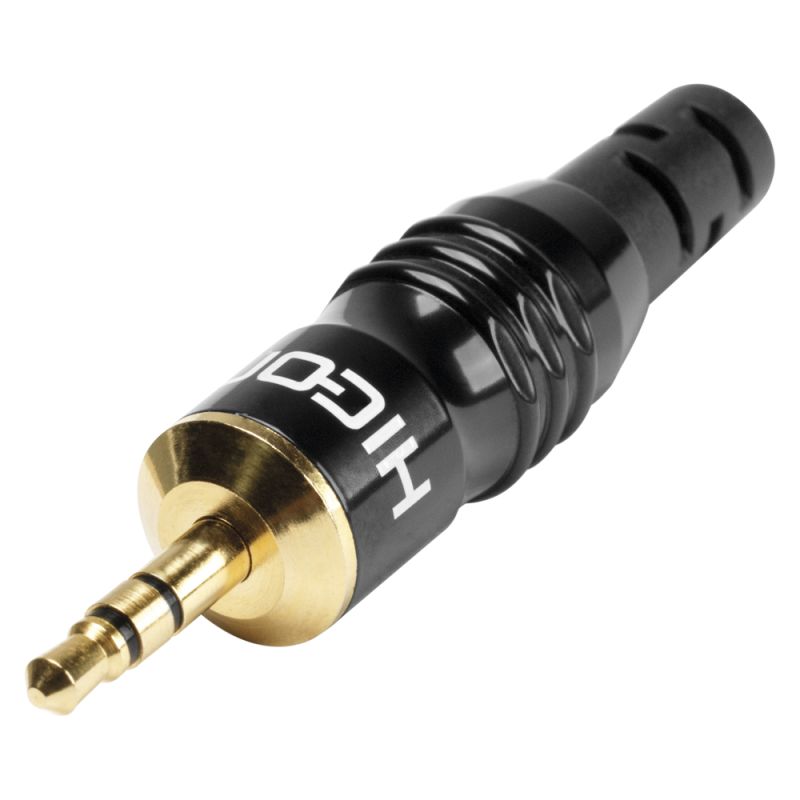

HI-J35S02
HICON Mini-jack (3,5mm), 3-pole , metal-, Soldering-male connector, gold plated contact(s), straight, black
Little big man
The 3.5 mm (1/8“) mini jack connectors can be used on countless compact devices like MP3 players, sound cards, bodypacks etc. Here the HICON range offers a wide array of special features such as those versions
• HI-J35S-SCREW-M/-Fwith screw lock for mobile applications (e.g. bodypacks)
• HI-J35S02/T02 with big cable holder (for twin cables, thick cables)
• HI-J35S03 with compact design
• HI-J35M04/S04 with chuck strain relief (for high tensile forces)
• HI-J3563S with 6.3 mm (1/4“) screw adapter (for headphones etc.)
• HI-J35SA, 90° angled
All variants have genuine gold-plated solid pins and come with a 5-year warranty.
