EVENT-210A
Features
Powered 3-way system
Light-weight Class D amplifier topology
Easy-DSP™ Interface
Durable ISO-flex finish

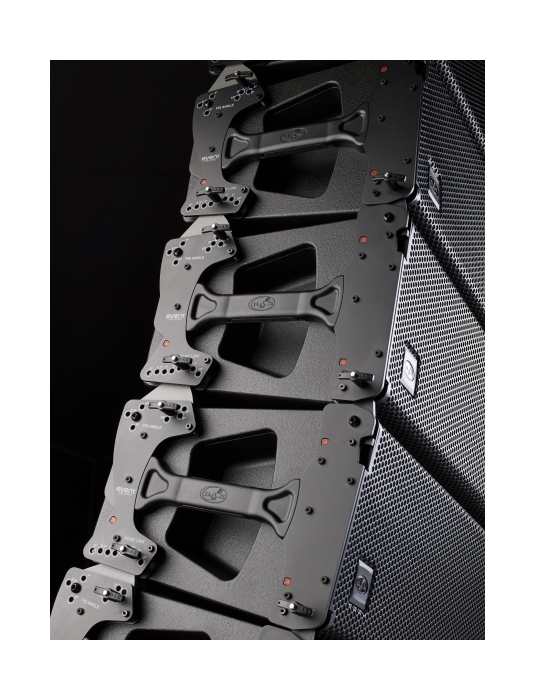

Robust “quick-rig” professional rigging hardware
Proprietary injected aluminium HF waveguide
DAS M-75 compression driver and cone transducers
Applications
House of worship
Theatres, auditoria and performing arts centers
Live music clubs
Live sound touring/Rental services
| Performance | |
| Frequency Range (-10 dB) | 70 Hz – 20 kHz |
| Horizontal Coverage (-6 dB) | 90º |
| Vertical Coverage | Splay Dependent |
| Maximum Peak SPL at 1 m | 134 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power LF (continuous) | 180 W |
| Nominal Amplifier Power LF (peak) | 360 W |
| Nominal Amplifier Power MF (continuous) | 180 W |
| Nominal Amplifier Power MF (peak) | 360 W |
| Nominal Amplifier Power HF (continuous) | 180 W |
| Nominal Amplifier Power HF (peak) | 360 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 6.2 V (+18 dBu) |
| Audio Signal Input Connector | 1 x Female XLR |
| Audio Signal Loop Thru Connector | 1 x Male XLR |
| AC Output Connector | powerCON NAC3FCB |
| Current Draw 230 V / 115 V | 1.5 A/- |
| Certification Number | NRTL US&CA SGSNA/19/SUW/00109 |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | Captive Rigging System |
| Finish | ISO-flex Paint |
| Color | Black |
| Dimensions ( H x W x D ) | 275 x 735 x 370 mm 10,8 x 28,9 x 14,6 in |
| Net Weight | 32,5 kg ( 71,7 lb ) |
| Components | |
| LF Driver | 10MI4 |
| MF Driver | 10MI4 |
| HF Driver | M-75 |
| Horn/Waveguide | BPS-90AR |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 800 x 320 x 410 mm 31,5 x 12,6 x 16,1 in |
| Shipping Weight | 34,5 kg ( 76,1 lb ) |
