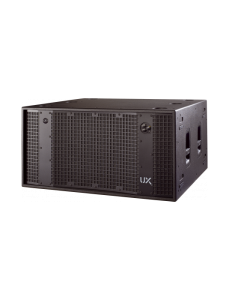

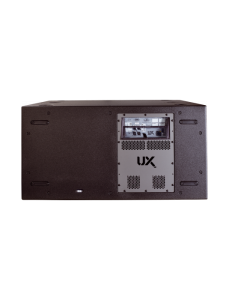

UX-221A

Features

Powered ultra low frequency subwoofer system
2 x 3400 W Class D amplifier
DASnet™ remote monitoring and control capable
Twin 21″ Neodymium loudspeakers with 6″ voice coils
Solid 21 mm Birch plywood construction
Impressive 60 mm peak-to-peak excursion

Applications

House of worship
Theatres, auditoria and performing arts centers
Live music clubs
Corporate A/V
Live sound touring/Rental services

Performance
Frequency Range (-10 dB)	28 Hz – 125 Hz
Maximum Peak SPL at 1 m	145 dB

Electronics and Connectors
Nominal Amplifier Power (continuous)	2 x 3400 W
Nominal Amplifier Power (peak)	2 x 6800 W
Input Type	Balanced
Input Impeadance	20 kohms
Input Sensitivity	4.9 V (+16 dBu)
Audio Signal Input Connector	1 x Female XLR
Audio Signal Loop Thru Connector	1 x Male XLR
Audio/Data Input Connector	etherCON
Control	DASnet™
Audio + Data Loop Thru Connector	etherCON
Current Draw 230 V / 115 V	9.2 A/18.4 A
Enclosure
Enclosure Construction	Birch Plywood
Enclosure Geometry	Rectangular
Rigging	M10 Rigging Points
Finish	ISO-flex Paint
Color	Black
Dimensions ( H x W x D )	615 x 1.195 x 1.100 mm 24,2 x 47,0 x 43,3 in
Net Weight	133,0 kg ( 293,3 lb )
Components
LF Driver	21UXN
Shipping
Carton Dimensions ( H x W x D )	800 x 1.260 x 1.200 mm 31,5 x 49,6 x 47,2 in
Shipping Weight	142,5 kg ( 314,1 lb )
