| Article number: | 200-0401F |
|---|---|
| Name: | SC-Isopod SO-F22 |
| EAN: | 4049371004497 |
| Properties: | Analog, OFC oxygen free copper |
| Application area: | Installation |
| Application: | Patch cable |
| Colour: | black |
| Signal transmission: | symmetrical |
| Construction: | (2LI2Y0,22mm²)(ST)Y |
| Jacket material: | FRNC |
| Jacket Ø [mm]: | 3,30 |
| Jacket Ø [“]: | 0.1299 |
| Number of Channels (audio): | 1 |
| Inner conductor (audio): | 2 |
| Inner conductor (audio) [mm²]: | 0,22 |
| Inner conductor (audio) [sqin]: | 0.0003 |
| Inner conductor Ø (audio) [mm]: | 0,53 |
| Inner conductor Ø (audio) [“]: | 0.0209 |
| AWG (audio): | 24 |
| Shielding: | AL / PT foil + AL / PT foil + filler strand, tin-plated |
| Shielding factor [%]: | 100 |
| Copper strands (audio): | 7 |
| Copper strand Ø (audio) [mm]: | 0,20 |
| Copper strand Ø (audio) [“]: | 0.0079 |
| Conductor insulation material: | PE |
| Conductor insulation Ø [mm]: | 1,12 |
| Conductor insulation Ø [“]: | 0.0441 |
| Weight per 1 m [g]: | 16 |
| Weight at 1000 ft. [lbs]: | 10.7667 |
| UV-resistant: | yes |
| Fire load per m [kWh]: | 0,05 |
| Style variant: | round |
| Packing: | 200 m spool |
| Temperature min. [°C]: | -25 |
| Temperature max. [°C]: | 70 |
| Width [mm]: | 3,3 |
| Width [“]: | 0.1299 |
| Height [mm]: | 3,3 |
| Height [“]: | 0.1299 |
| Capac. cond./cond. per 1 m (audio) [pF]: | 74 |
| Capacity wire/wire at 1 ft. (audio) [pF]: | 22.5552 |
| Capac. cond./shield. per 1 m (audio) [pF]: | 143 |
| Capacity wire/electic screen at 1 ft. (audio) [pF]: | 43.5864 |
| Insulation resist. per 1 km [GΩ]: | 0,2 |
| Insulation resist. per 1000 feet [GΩ]: | 0.061 |
| Insulation resist. per 1 km (audio) [GΩ]: | 0,2 |
| Insulation resist. per 1000 feet (audio) [GΩ]: | 0.061 |
| Conductor resistance per 1 km [Ω]: | 88 |
| Conductor resistance per 1000 ft. [Ω]: | 26.8224 |
| Shield. resistance per 1 km [Ω]: | 75 |
| Shield. resistance per 1000 ft. [Ω]: | 22.86 |
| BPVo-Euroclass: | Fca |

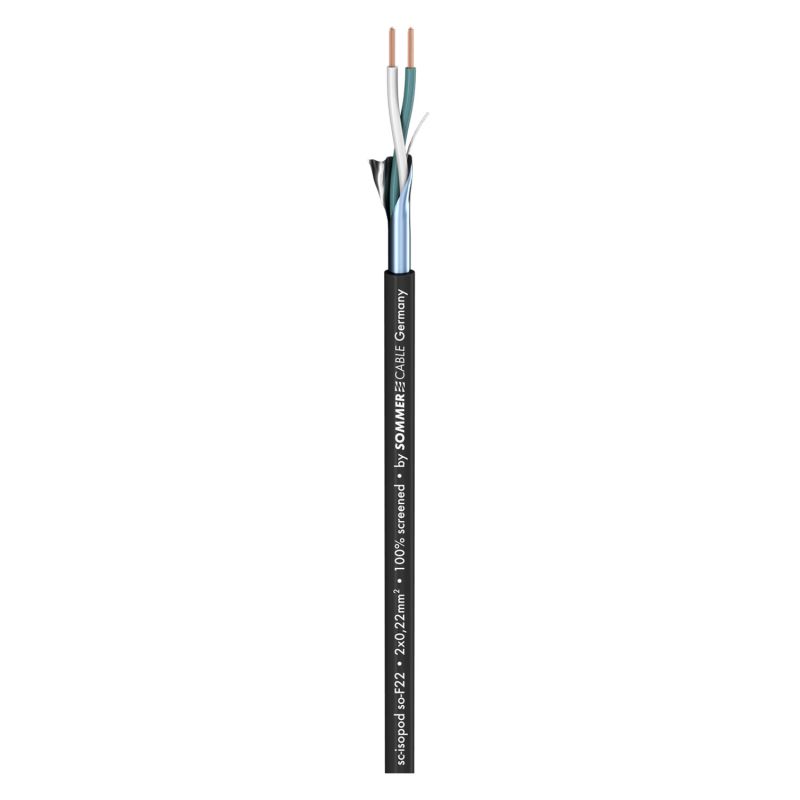

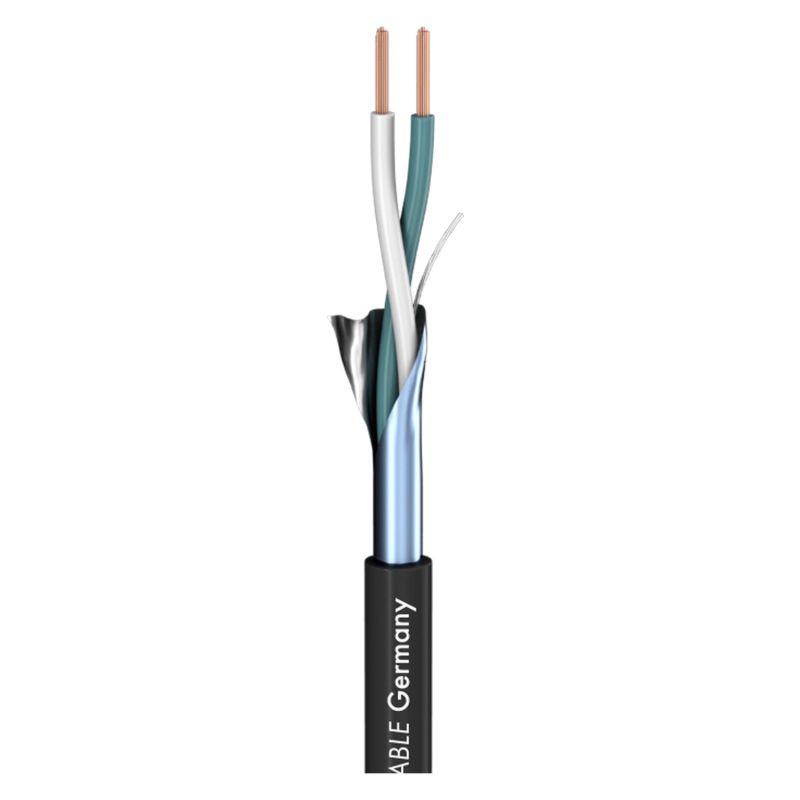

SC-Isopod SO-F22 9 ( black )
The memory cable…
Will get things in order. In switching cabinets and racks it often looks like on grandma’s knitting pattern. Tidiness is indispensable. The SC-Isopod SO-F22 is a 2-wire, foil-shielded cable with a compact outer diameter of 3,30 mm. The cable is primarily used for the internal wiring in audio and hi-fi components. It has a “memory effect“ and can be laid “around the corner“ easily. The Cu wires of the individual wire pairs are already pre-stranded and very easy to strip. For a simpler assembly, the cable has an additional pre-stranded, tin-plated drain wire. It is shielded by an AL/PT foil that will automatically stick on the jacket when stripping it.
Advantages:
- Quick and easy to handle
- Robust plastic jacket for long life
- Easy to lay thanks to “memory effect”
Application:
- Internal wiring of racks, audio and hifi components
