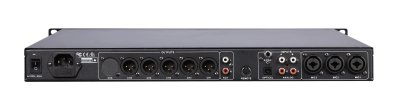

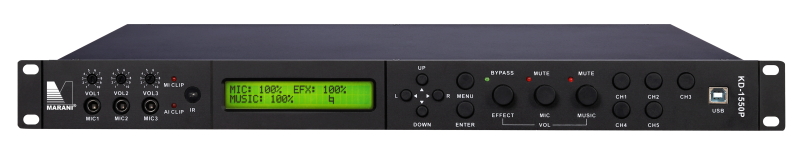

KD1550P
Digital Karaoke Processor
KD1550P is a high performance digital karaoke processor that allows independent control of audio processing on music sources, microphones and digital effects applied to the voice. It provides several inputs including 3 MICs, 2 stereo analog and 1 digital S/PDIF-Optical in addition to 5 outputs and 2 auxiliary outputs. All of these are managed by powerful MARANI® DSP. The microphone input section offers a complete set of functions for voice processing without modifying its original characteristics. It includes 10-band parametric EQ and Noise Gate in addition to Vocal Exciter function which provides amazing presence and brilliance to the singer’s voice.The input path also features a Feedback Eliminator with intensity adjustable to prevent feedback occuring during the performance.
For Microphone source, the KD1550P provides an effects section equipped with professional reverb and delay algorithms that allows the best effect/voice combination to be obtained through a full set of controls and mixing outputs. Furthermore, the delay section provides 3 independent delays selected as delay time and feedback in order to create particular effects. Looking at the Music input section, the KD1550P include 10-band Graphic Equalizer, Noise Gate and RMS Compressor. The output section provides 5 output, each of them include LP/HP, 4-band parametric equalizer, Peak Limiter and Delay up to 110ms. Furthermore, 2 auxiliary stereo outputs are used tomonitor either microphone signal from Pre/Post effects section or music signal from music input section. The KD1550P can be connected via USB by using the control remote PC SW setting all parameters and creating favorite presets. Moreover, it is equipped with wired and infrared remote control.
Audio

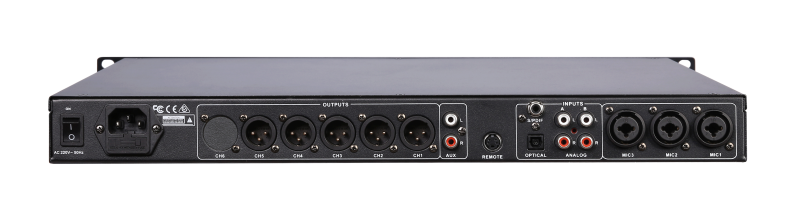

| Analog Input | Line A(L/R), Line B(L/R); Unbalanced RCA MIC 1, MIC 2; Balanced XLR |
| Analog Output | 5 x XLR male connector, balanced 1 x RCA connector for AUX 1; 1 x Optical Toslink for AUX 2 |
| Digital Input | S/PDIF, Optical Toslink |
| Maximum Input Level | Line: +9dBu; MIC: -27dB |
| Maximum Output Level | CH1-CH5: +15dBu; AUX 1/2: +15dBu |
| THD+N | 0.005% |
| S/N | >106dBA |
| AD & DA Converters | 24bit |
| Frequency Response (DSP) | 20Hz – 20kHz; +/-1dBu at 20Hz and 20kHz |
Outstanding Performance
3 MIC inputs, 2 stereo line inputs, 1 digital input, 5 outputs and 2 auxiliary output with full matrix mixing
Excellent sonic performance with 24bit high end converters coupled with 48kHz sample rate
Microphone Input Section
10-band Parametric equalization and Noise Gate per channel
Vocal Exciter function for amazing presence per channel
Feedback Eliminator function based on a power ‘Pitch Shifting’ algorithm per channel
HP/LP filter per channel
Music Source Input Section
10-band Graphic Equalizer, Noise Gate and RMS Compressor
Audio Effects Section
Professional reverb and delay algorithms for best effect/voice combination through a full set of controls and mixing options
3 Independent delays selected as delay time and feedback in order to get particular effects
