Available models

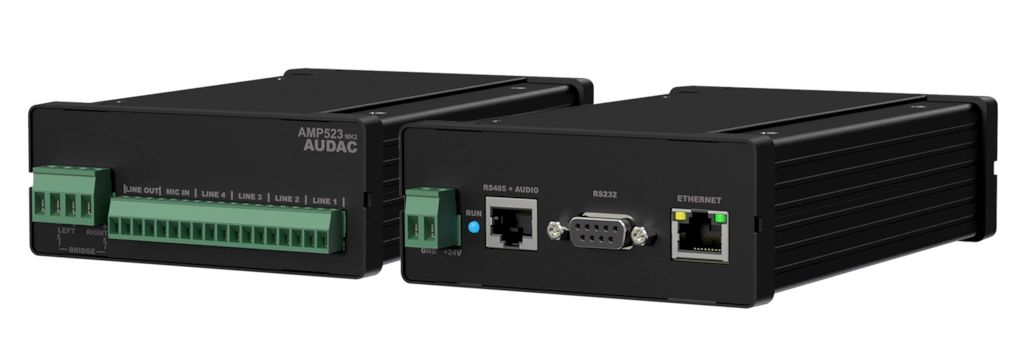

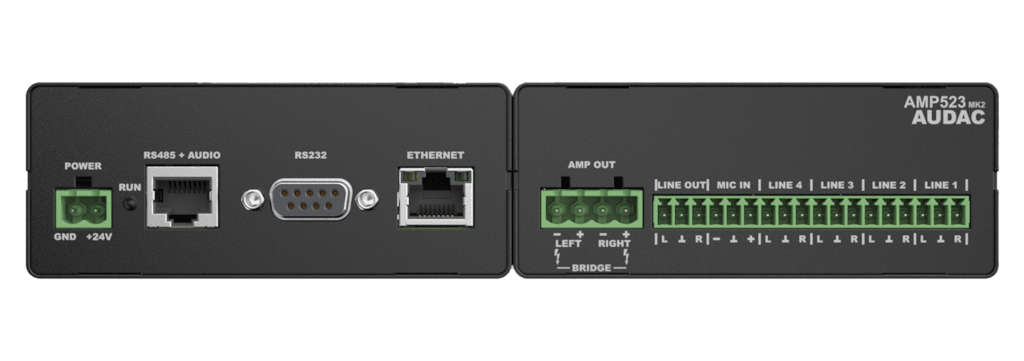

| AMP523MK2 | MK2 version |
System specifications
| RMS/AES power handling | @ 4 Ω Stereo | 2 x 15 W | |
| @ 8 Ω Stereo | 2 x 7.5 W | ||
| Satellite | @ 8 Ω Bridge | 30 W | |
| Inputs | Unbalanced Stereo | Type | 4 x Stereo Unbalanced Line |
| Balanced Stereo | Connector | 18-pin Euro Terminal Block (Pitch – 3.81 mm) | |
| Impedance | 20 kΩ | ||
| Sensitivity | -10 dBV ~ +4 dBV | ||
| Balanced Microphone | Type | 1 x Balanced Microphone | |
| Connector | 18-pin Euro Terminal Block (Pitch – 3.81 mm) | ||
| Impedance | 47 kΩ | ||
| Sensitivity | -45 dBV ~ -20 dBV | ||
| Other | Type | 1 x RS-485 + Differential audio | |
| Connector | RJ45 | ||
| Type | 1 x RS-232 | ||
| Connector | SUBD9 | ||
| Type | 1 x Ethernet | ||
| Connector | RJ45 | ||
| Outputs | Type | 1 x Stereo Loudspeaker | |
| Connector | 4-pin Euro Terminal Block (Pitch – 5.08 mm) | ||
| THD+N (@ 1 kHz) | < 0.1% | ||
| Crosstalk (@ 1 kHz) | < -75 dB | ||
| Signal / Noise | > 95 dB | ||
| Power | Consumption | Standby | < 3.0 W (PSD242 included) |
| Supply | 24V DC (PSD241 switching Power supply included 100 ~ 240V AC / 47 ~ 63 Hz) | ||
| Efficiency | 87% | ||
| Cooling | Passive | ||
| Protection | Over heating | ||
| DC Short circuit | |||
| Limiter | |||
| Control | RS-232 | ||
| TCP/IP | |||
| RS-485 | |||
| Socket Connections (AUDAC Touch™) | 2 sockets | ||
Product Features
| Dimensions | 108 x 44 x 165 mm (W x H x D) | |
| Weight | 0.81 kg | |
| Accessories | Included | PSD241 – Power supply 24V / 1.67 A (Efficiency Level V) |
| Optional | Wall Controller (MWX45) | |
| WMI18/22 & WLI18/22 Wall input unit | ||
| MBS1xx Wall mounting brackets | ||
| TR3030 100V Transformer 30 W | ||
| WP2xx Universal wall panel | ||
Recommended applications
|
Bars & Restaurants
|
|
Retail
|
|
Education
|
|
Corporate
|
|
Residential
|
