| Model | ACT-800T |
|---|---|
| Name | UHF Digital Wideband Bodypack Transmitter |
| Frequency Range | UHF 480 – 934 MHz (country dependent) |
| Bandwidth | 72 MHz |
| Display | Backlit LCD |
| Encryption | 256-bit |
| Mic. Capsule Modules | Work with all MIPRO’s lavalier and headworn mics |
| Input Connector | MIPRO 4-Pin Mini XLR |
| AF Sensitivity | Preset at 0 dB (equal to capsule sensitivity) 6 switchable levels: 18 dB, 12 dB, 6 dB, 0 dB, -6 dB, -12 dB |
| RF Power Output | 10 mW / 50 mW switchable (country dependent) |
| Battery Type | One 18500 Li-ion battery or two AA alkaline |
| Battery Charging | MP-800 / MP-820 charging station or USB Type-C |
| Dimensions | 63 × 80 × 25 mm (W × H × D) |
| Weight | Approx. 97 g |

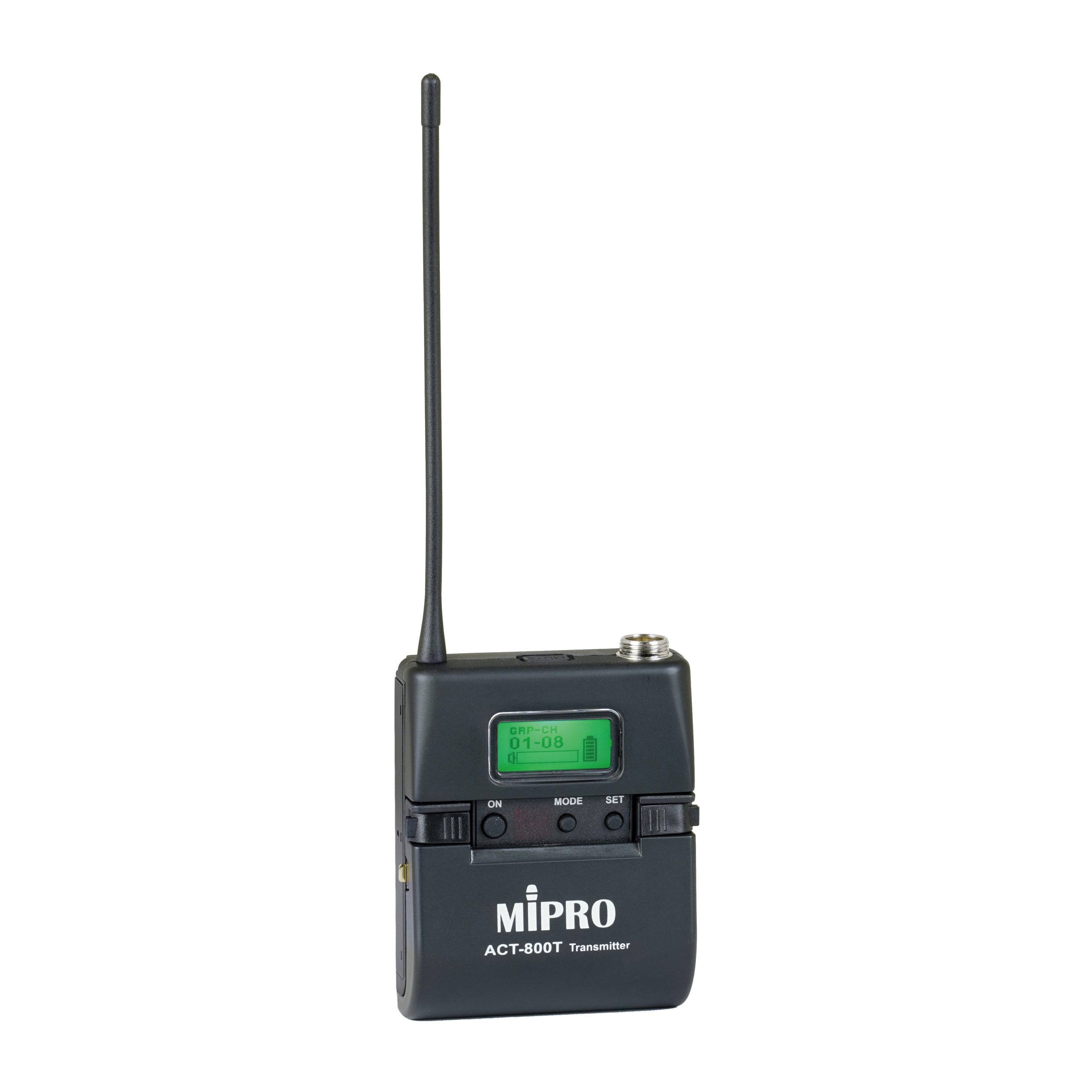

ACT-800T
UHF Digital Wideband Bodypack Transmitter
- Newly designed compact and lightweight housing for easy wearing.
- The panel integrates a backlit LCD and setup buttons for easy operation and view of all operating information. A lockable power switch prevents the power switch from accidental operation.
- In addition to the power switch and the mute button, functions such as input sensitivity, low frequency reduction, volume limit, power output, input polarization, and mute mode are also programmable.
- The world’s first ACT™ function provides precise and rapid frequency sync to the receiver.
- 6 switchable gain levels and the input polarization can be selected for matching various capsules.
- Mute button and remote-control jack allow quick setting of MUTE function.

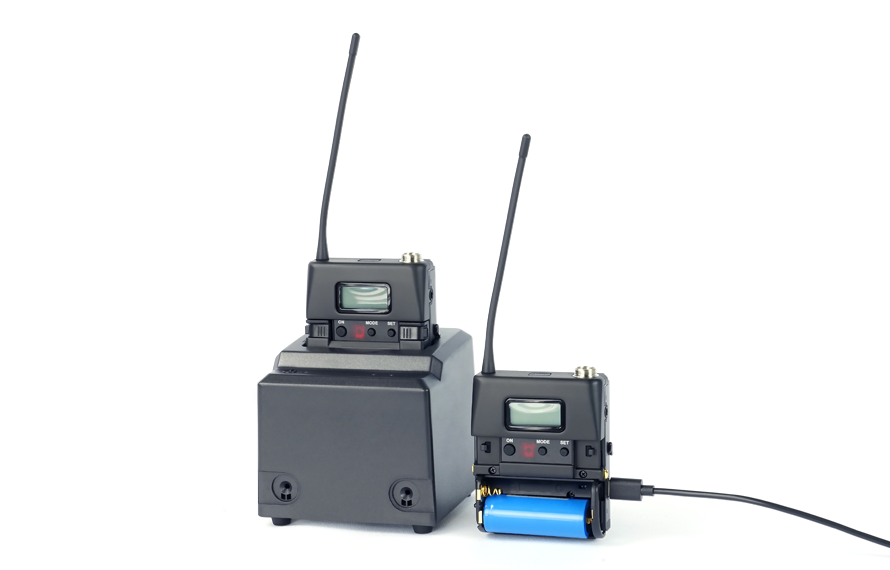

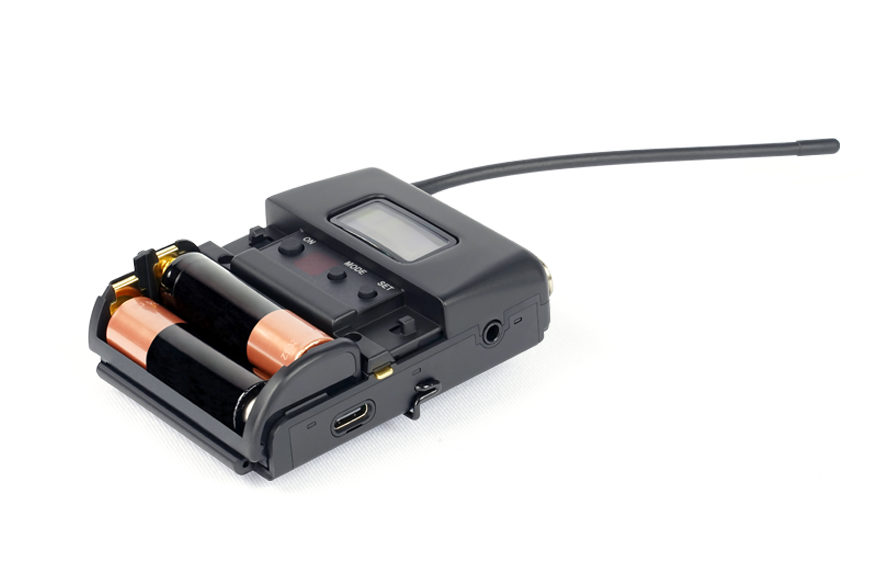

- The patented battery compartment can be inserted with two AA-type batteries or one rechargeable Li-ion battery, charging via USB Type-C with the foolproof and safe charging circuit. The second-generation ACT-800T features charging contacts and can also be placed on an optional single-slot or dual-slot charging station for charging.
- A belt clip for easy wearing.
Description
Reviews (0)
Shipping & Delivery
Related products
ACT-323
UHF Analog Dual-Channel Receiver
- EIA standard metal chassis equipped with a green backlit LCD screen and electronic buttons on the front panel. The LCD screen will automatically turn bright to identify “Working” or “Standby” mode.
- The most reliable 24 MHz narrowband high dynamic range receiving circuit greatly decreases intermodulation distortion and increases interference-free compatible channels.
- Industry’s first “PiloTone & NoiseLock” circuits and the RF interference warning indicator for proper adjustments of the SQ level to avoid interference.
- MIPRO Auto Scan and ACT™ function provides the transmitter’s frequency with precise and rapid sync to the receiver.
- There are 7 preset groups with a total of 80 pre-saved frequencies. The user-defined group allows users to choose 8 working channels from 961 available frequencies.
- Each channel has separate audio output and 3 switchable output gains, or mix signals from all channels with just one output jack. All is to ensure the microphone operates within proper sensitivity and dynamic range, free from distortion.
- Antenna connector provides bias for MIPRO antenna systems to boost reception distance and signal.
- External AC 100 – 240 V switching power supply to ensure stable operation of the system even under drastic voltage change.
- All are designed and made in Taiwan to ensure high quality and value.
ACT-32H
UHF Analog Handheld Transmitter
- Aesthetically designed rugged plastic housing features the most comfortable handheld size and presents MIPRO’s unique style.
- The unique metal grille of the microphone capsule module can be divided into the upper grille and the lower grille. The upper grille can be detached for cleaning; the lower grille is connected with the housing by an internal thread. The robust metal grille protects the capsule against impact, rolling and pop noise, and ensures clarity of sound.
- An LCD on the housing displays the working channel, battery status and operating information.
- Powered by two AA alkaline batteries.
- Pairs with MIPRO’s capsule modules featuring high dynamic range for loud singing without distortion. The patented capsule suspension design virtually eliminates vibration and handling noise
- A color-coded channel identification ring is put on the end of the housing which has a built-in high efficiency antenna.
ACT-515
UHF Analog Single-Channel Receiver
- EIA standard metal chassis, with a newly designed LCD, a rotary control knob and buttons equipped on the front panel. The LCD screen automatically shifts colors to identify “Working” or “Standby” mode. An optional Dante network interface is available.
- Inherited the most reliable 24 MHz narrowband true diversity receiving circuit from MIPRO typical professional ACT-7 Series, which ensures long-distance and stable reception without signal dropout, greatly decreases intermodulation distortion and increases interference-free compatible channels.
- Industry’s first “PiloTone & NoiseLock” circuits and the RF interference warning indicator for proper adjustments of the SQ level to avoid interference.
- MIPRO Auto Scan and ACT™ function provides the transmitter’s frequency with precise and rapid sync to the receiver.
- There are 7 preset groups with a total of 80 pre-saved frequencies. The user-defined group allows users to choose and save up to 16 channels from 961 available frequencies.
- Each channel has separate audio output and 3 switchable output gains, or mix signals from all channels with just one output jack. All is to ensure the microphone operates within proper sensitivity and dynamic range, free from distortion.
- Optional MIPRO RCS2.Net software allows real-time network remote-controlling and monitoring up to 64 channels. Additional FSA compatible channels calculator software allows users to manually set compatible channels of any frequency band.
- Antenna connector provides bias for MIPRO antenna systems to boost reception distance and signal.
- External AC 100 – 240 V switching power supply to ensure stable operation of the system even under drastic voltage change.
- Pairs with ACT-500H handheld and ACT-500T bodypack transmitter.
- All are designed and made in Taiwan to ensure high quality and value.
ACT-525
UHF Analog Dual-Channel Receiver
- EIA standard metal chassis, with a newly designed LCD, a rotary control knob and buttons equipped on the front panel. The LCD screen automatically shifts colors to identify “Working” or “Standby” mode. An optional Dante network interface is available.
- Inherited the most reliable 24 MHz narrowband true diversity receiving circuit from MIPRO typical professional ACT-7 Series, which ensures long-distance and stable reception without signal dropout, greatly decreases intermodulation distortion and increases interference-free compatible channels.
- Industry’s first “PiloTone & NoiseLock” circuits and the RF interference warning indicator for proper adjustments of the SQ level to avoid interference.
- MIPRO Auto Scan and ACT™ function provides the transmitter’s frequency with precise and rapid sync to the receiver.
- There are 7 preset groups with a total of 80 pre-saved frequencies. The user-defined group allows users to choose and save up to 16 channels from 961 available frequencies.
- Each channel has separate audio output and 3 switchable output gains, or mix signals from all channels with just one output jack. All is to ensure the microphone operates within proper sensitivity and dynamic range, free from distortion.
- Optional MIPRO RCS2.Net software allows real-time network remote-controlling and monitoring up to 64 channels. Additional FSA compatible channels calculator software allows users to manually set compatible channels of any frequency band.
- Antenna connector provides bias for MIPRO antenna systems to boost reception distance and signal.
- External AC 100 – 240 V switching power supply to ensure stable operation of the system even under drastic voltage change.
- Pairs with ACT-500H handheld and ACT-500T bodypack transmitter.
- All are designed and made in Taiwan to ensure high quality and value.
BC-100T
Gooseneck Microphone Transmitter Base
- BC-T Series encloses the transmitter PCB for wireless transmission and can also connect directly with MM-series 4-Pin gooseneck microphone for wired transmission.
- For wired transmission, the output jack requires phantom power from the mixer.
- For wireless transmission, the operational controls are the same as any ACT bodypack transmitter. A built-in 18500 Li-ion battery can be charged by an external charger or simply replace with another spare battery.
- Feature a TALK / MUTE button. When pushing the button to talk, the green indicator on the base and LED ring indicator on MM-206L / 205L / 204L will light up indicating the system in the state of speaking. Push the button again to mute the system and all indicators are off.
- A reinforced base and anti-slip pad for added stability.
MM-202J
Gooseneck Microphone
Key Features
Ultra slim profile design for podiums, pulpit and lectern applications.
Proprietary microphone mount design allows 110° up/down and 300° left/right angle adjustments.
Shock isolation mount design minimizes handling and vibration noise.
Multi-layered microphone grill minimizes pop noise.
Unmatched high fidelity sound reproduction.
