| Type | Active DSP-controlled Wedge Monitor loudspeaker |
| Frequency Response(-10dB) | 55Hz-20kHz |
| Horizontal Coverage | 60° x 90° |
| Maximum Calculated SPL/1M (Continuous/Peak) | 122dB/128dB |
| HF Driver | Customized driver, 1.75” voice coil and 1.0”exit |
| LF Driver | Customized 2×10” driver, 2.0” voice coil |
| DSP | |
| Processor | 48kHz signal sampling frequency, FIR filtering |
| Presets | FLAT, VOCAL, DRUM |
| AMPLIFIER | |
| Amplifier Circuitry | Class D |
| Power(RMS standards） | 1100W |
| Peak Power | 2200W |
| Frequency Response(1W 8Ω 2ch) | 20Hz-20kHz(±0.5dB) |
| Intermodulation Distortion (20Hz-20kHz, half power) | ＜0.05% |
| Total Harmonic Distortion (20Hz-20kHz, Rated power 8Ω) | ＜0.05% |
| Cooling System | Cooling with fans, air convection |
| Protection | DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection |
| Signal Input | Female XLR |
| Signal Output | Male XLR |
| Power Input | Power connector |
| Power Output | Power connector |
| Working Voltage | 100V~130V or 220V~240V(±10%,50/60Hz) |
| Power consumption(1/8 output power) | 82W |
| Cabinet | |
| Cabinet Material | CNC machined plywood |
| Cabinet Color | Black is the default color. Contact Audiocenter for customization |
| Grille | Iron mesh |
| Handles | 2 side |
| Cabinet monitoring Angle | 30° |
| Optional Accessories | Cover / Flightcase |
| Speaker Dimension(W×H×D) | 593×320×515mm |
| Carton Dimensions(W×H×D) | 571×684×418mm |
| Net Weight | 19.0 kg |
| Shipping Weight | 22.0 kg |

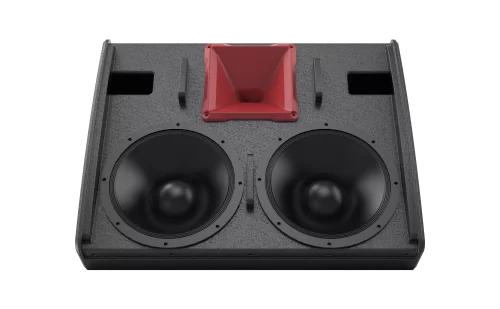

WM3210A
Active DSP controlled wedge monitor speaker
WM3210A is Audiocenter’s latest active DSP controlled wedge monitor speaker with high-output, reliability and supreme performance.
