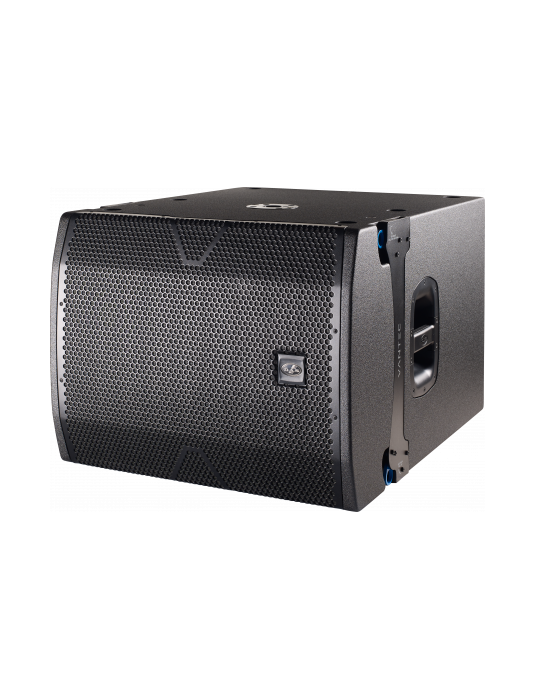

VANTEC-118A

Features

Active front-loaded subwoofer system
1 x 18″ DAS 18FW loudspeaker
Class D amplifier 2000 Wpeak
Digital signal processing (DSP)
Unique “Deep-Loud” bass EQ switch
Variable low-pass filter 80 Hz-125 Hz

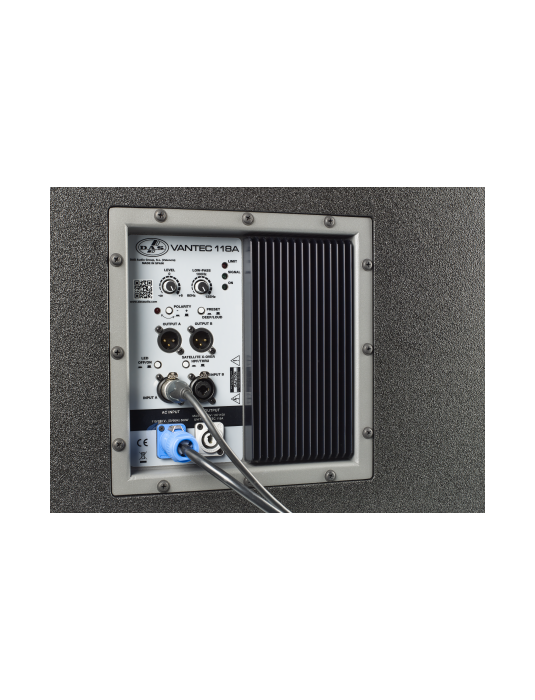

LED ON/OFF switch on backplate

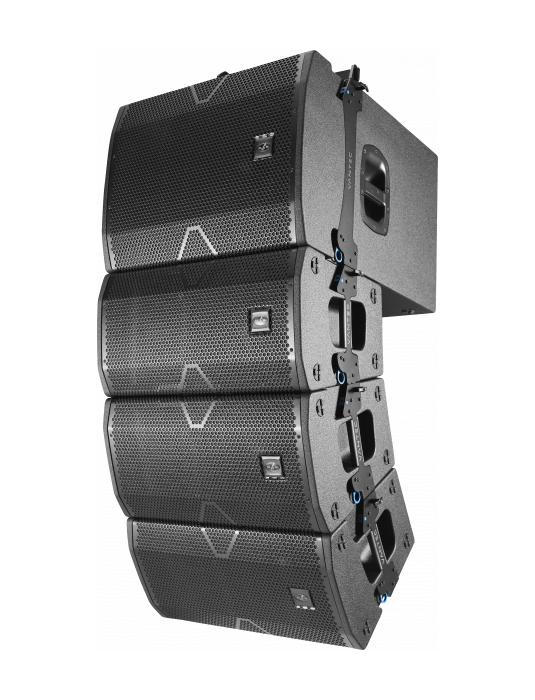

Rigging compatible with VANTEC-20A
Top located pole mount socket

Applications

Concerts and corporate A/V
Portable and live clubs
Concert halls, theaters and auditoriums
Houses of worship

Performance
Frequency Range (-10 dB)	35 Hz – 125 Hz
Maximum Peak SPL at 1 m	134 dB

Electronics and Connectors
Nominal Amplifier Power (continuous)	1000 W
Nominal Amplifier Power (peak)	2000 W
Input Type	Balanced
Input Impeadance	20 kohms
Input Sensitivity	3 V (+12 dBu)
Audio Signal Input Connector	2 x Female XLR
Audio Signal Loop Thru Connector	2 x Male XLR
AC Output Connector	powerCON NAC3FCB
Current Draw 230 V / 115 V	2.2 A/4.4 A
Enclosure
Enclosure Construction	Birch Plywood
Enclosure Geometry	Rectangular
Rigging	M10 Rigging Points
Finish	ISO-flex Paint
Color	Black
Dimensions ( H x W x D )	490 x 615 x 785 mm 19,3 x 24,2 x 30,9 in
Net Weight	44,0 kg ( 97,0 lb )
Components
LF Driver	18FW
Shipping
Carton Dimensions ( H x W x D )	730 x 660 x 880 mm 28,7 x 26,0 x 34,7 in
Shipping Weight	48,0 kg ( 105,6 lb )

VANTEC-118A
