| Model | TA-80 |
|---|---|
| Name | UHF Digital Plug-on Transmitter |
| Frequency Band | UHF 480 – 960 MHz |
| Bandwidth | 72 MHz |
| RF Power Output | 10 / 50 mW switchable (country dependent) |
| Gain Setting | -18 to 30 dB, 9 selectable settings |
| AF Input Level | 2 V max. @ 0 dB |
| Phantom Power | 12 V / 48 V @ 10 mA max. |
| Battery Type | One 18500 Li-ion battery |
| Battery Charging | MP-8T charging station |
| Dimensions | 44 × 114 × 39 mm (W × H × D) |
| Weight | Approx. 180 g |

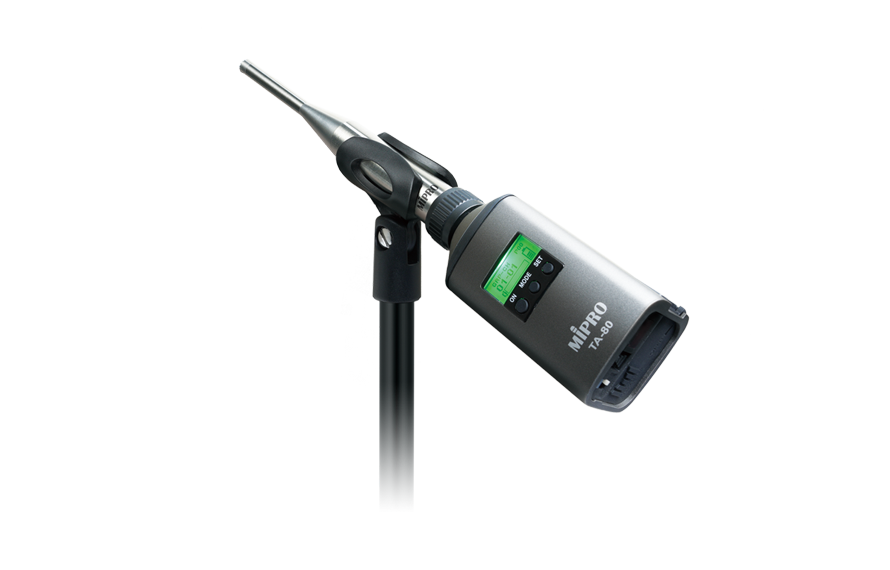

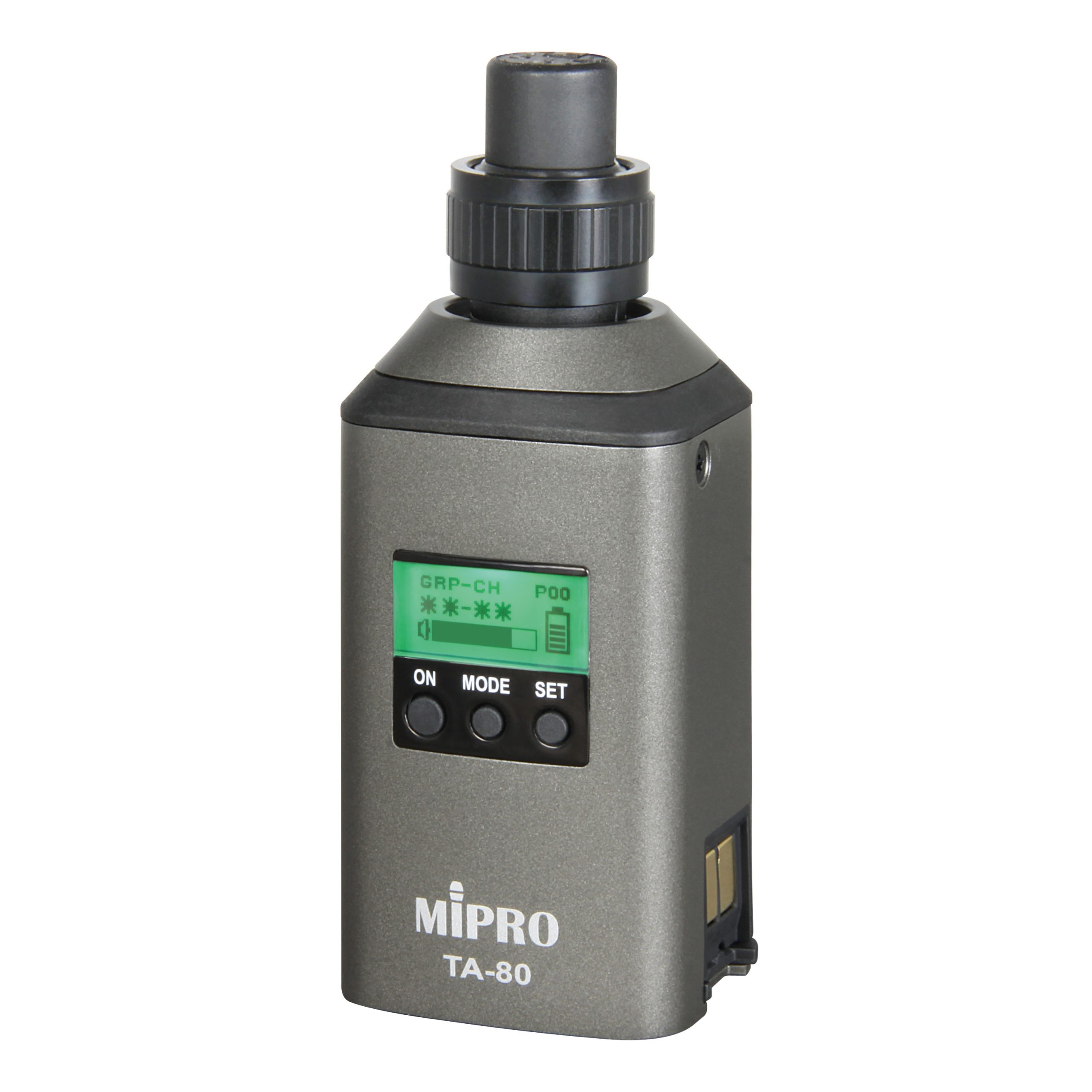

TA-80
UHF Digital Plug-on Transmitter
- The compact aluminum alloy housing that isolates RF spurious and noise interference, is equipped with a built-in high efficiency transmitting antenna and a green backlit LCD, which displays operation parameters.
- Features a flat and wide frequency response, ultra-low THD and noise floor, fast transient response, and high S/N ratio. It solves the problems of tangling microphone cables and defects of analog transmission. Thus, it is an ideal gear to reproduce the natural sound of any premium wired microphone.

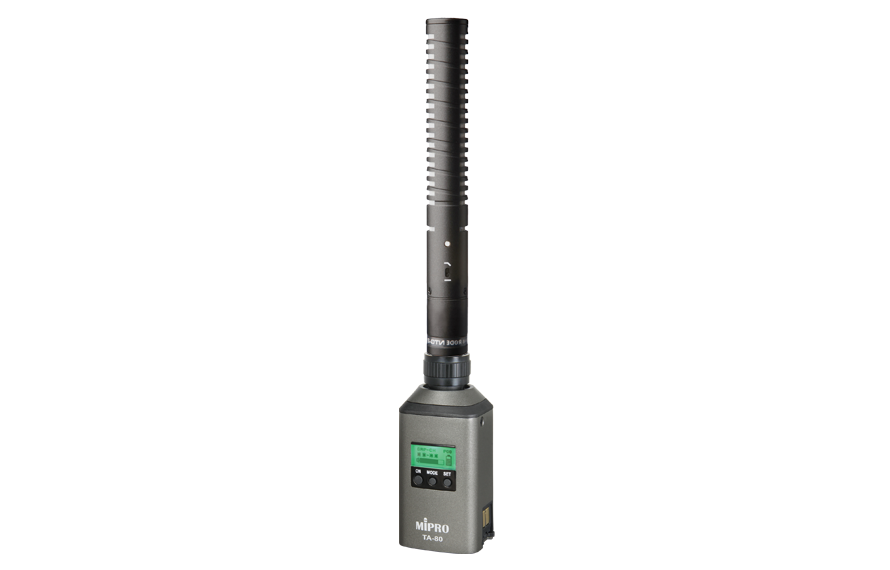

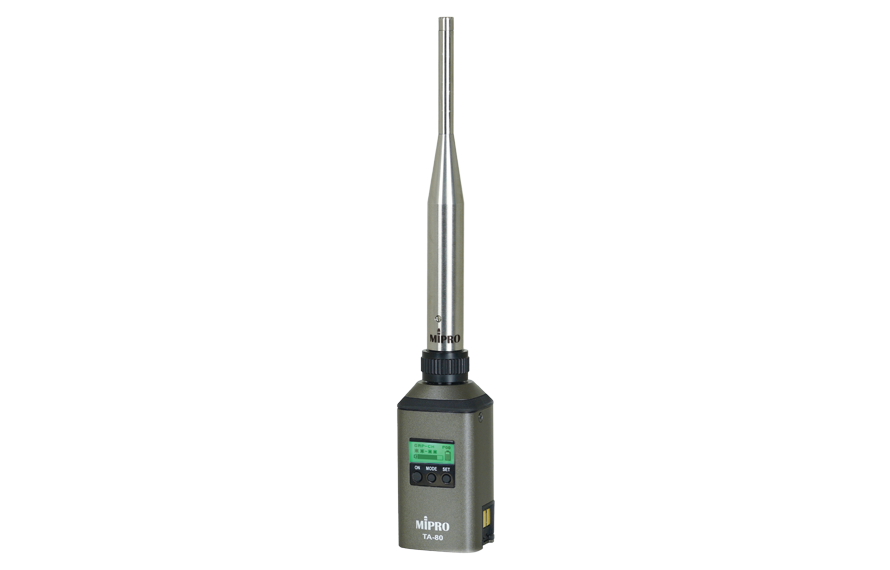

- A balanced XLR input jack for any condenser microphone to plug on.
- Supplies selectable 12 / 48 V phantom power at 10 mA for condenser microphones.
- A high-capacity lithium-ion battery that enables up to 8 hours of use per charge. After use, directly plug it into a charger to recharge or simply remove the battery.
