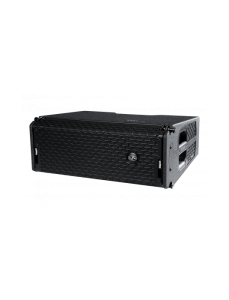

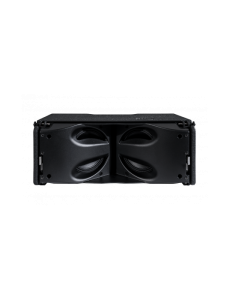

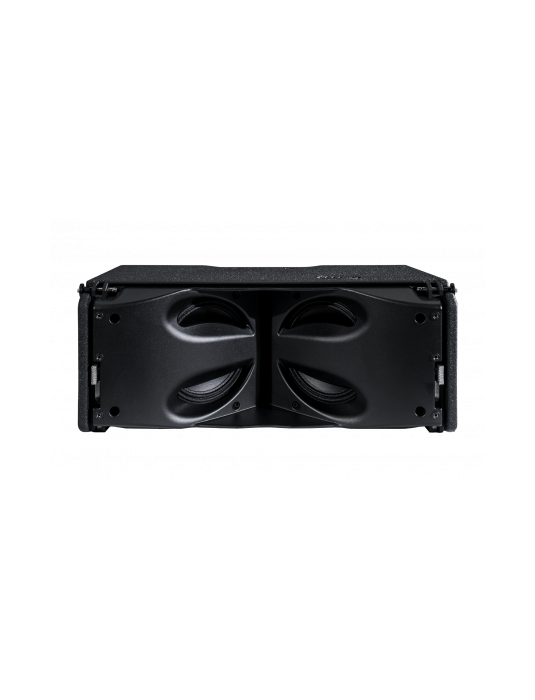

SARA-100

Features

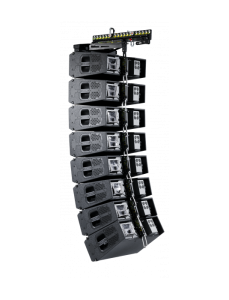

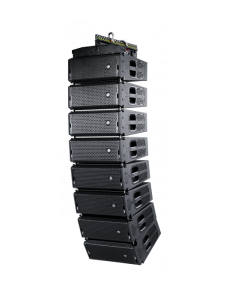

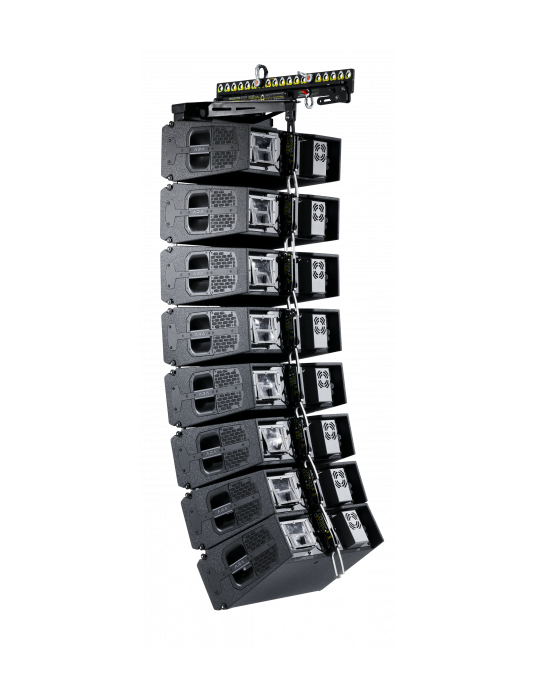

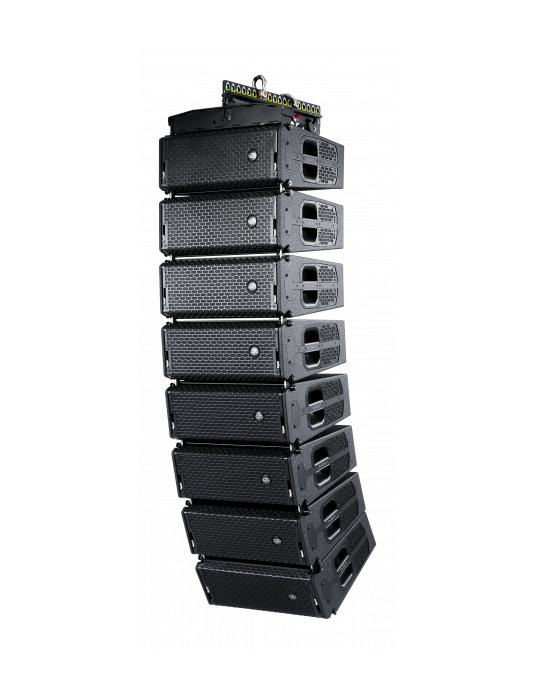

Powered compact line array system
100º horizontal coverage
Symmetric V-shaped configuration
4-channel, 3000 W_continuous Class D amplifier
FIR processing and digital steering via DASaim™
ALMA™ remote monitoring and control over IP
Fast Set Splay FSS™ for angle setting while stacked

Applications

Outdoor festivals and live concerts
Theatres, auditoria and performing arts centers
Large live music clubs
Live sound touring/Rental services

Performance
Frequency Range (-10 dB)	70 Hz – 17 kHz
Horizontal Coverage (-6 dB)	100º
Vertical Coverage	Splay Dependent
Maximum Linear SPL¹	138 dB
Maximum SPL²	142 dB
1. Measured Maximum Linear SPL at 1m according to AES75 standard using 18dB crest factor M-Noise. 2. Measured Maximum SPL at 1m using burst noise.

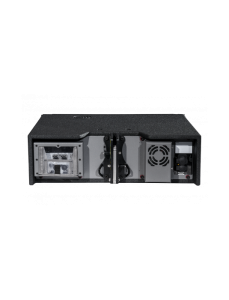

Electronics and Connectors
Nominal Amplifier Power (continuous)	3000 W
Input Type	Balanced Analog
Input Impeadance	20 kohms
Input Sensitivity	6.2 V (+18 dBu)
Audio Signal Input Connector	1 x Female XLR
Audio Signal Loop Thru Connector	1 x Male XLR
Audio/Data Input Connector	etherCON
Control	ALMA
Audio + Data Loop Thru Connector	etherCON
AC Output Connector	powerCON TRUE1
Current Draw 230 V / 115 V	4 A/8 A
Sampling Rate	96kHz
Enclosure
Enclosure Construction	Birch Plywood
Enclosure Geometry	Trapezoidal 10º
Rigging	Captive Rigging System
Finish	ISO-flex Paint
Color	Black
IP Rating	IP43
Dimensions ( H x W x D )	265 x 655 x 515 mm 10,5 x 26,0 x 20,3 in
Net Weight	34,0 kg ( 75,0 lb )
Components
MF Driver	8GXN4
HF Driver	M-78N
