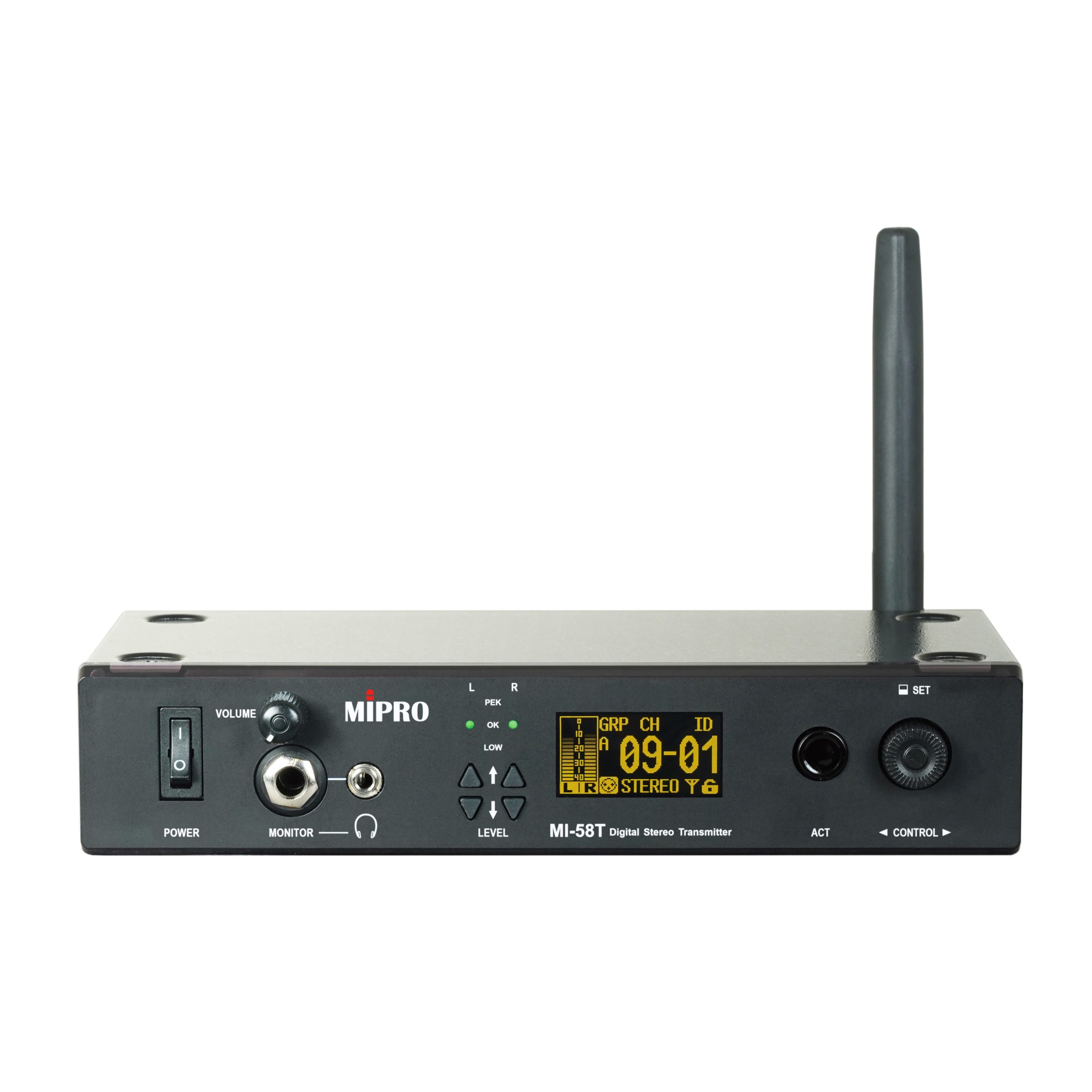

MI-58T

5 GHz Digital Stereo Transmitter

Equipped with a graphic OLED, a rotary knob, an ACT™ sync button, an audio input set button, and the industry’s first LED indicators for clear identification of the input volume to prevent the loudest peaks.
Ø 3.5 mm and Ø 6.3 mm dual earphone monitoring connectors and individual volume controls.
The rear panel is equipped with two XLR and Ø 6.3 mm input combo jacks, two Ø 6.3 mm phone jack loop outputs, an ACT-BUS networking interface, TNC RF output connectors, and a DC 12 V power supply.
Delivers < 25 mW output power (the maximum value depends on the telecom regulations of different countries) with an ON / OFF switch.
Presets several interference-free channels, and can ACT™ sync to the receiver.
With a high dynamic range stereo input combo jack, it can sustain the maximum output from any mixer.
The system offers Engineer Mode (ENG MODE) so the sound engineers have full control in any live performance.

Model	MI-58T
Name	5 GHz Digital Stereo Transmitter
Chassis	EIA standard half-rack (9.5″) metal case with a rotary control knob
Display	Graphic OLED displays all functions and settings. LED indicators for proper input stereo signals volume status adjustment
Frequency Band	ISM 5.8 GHz
Preset Channels	Group A & B. Presets 12 channels for interference-free operation in Group A, and 24 channels for interference-free operation in Group B1 & B2. 64 ID codes and 1 specific ID are allowed to be set for each channel to prevent the same channel being interfered in the same field.
Channel Setting	ACT™ sync
Audio Sampling	48 kHz / 24-bit
RF Power Output	< 25 mW (CE compliance) or country dependent
Audio Input	2 × XLR / 6.3 mm TRS combo socket
Audio Output	2 × 6.3 mm TRS (Loop Out)
Earphone Output	1 × 6.3 mm and 1 × 3.5 mm TRS with volume control
Networking Interface	2 × RJ-11 ACT-BUS
Dimensions	210 × 44 × 91 mm (W × H × D)
Weight	Approx. 570 g
Power Supply	DC 12 – 15 V, AC 100 – 240 V
