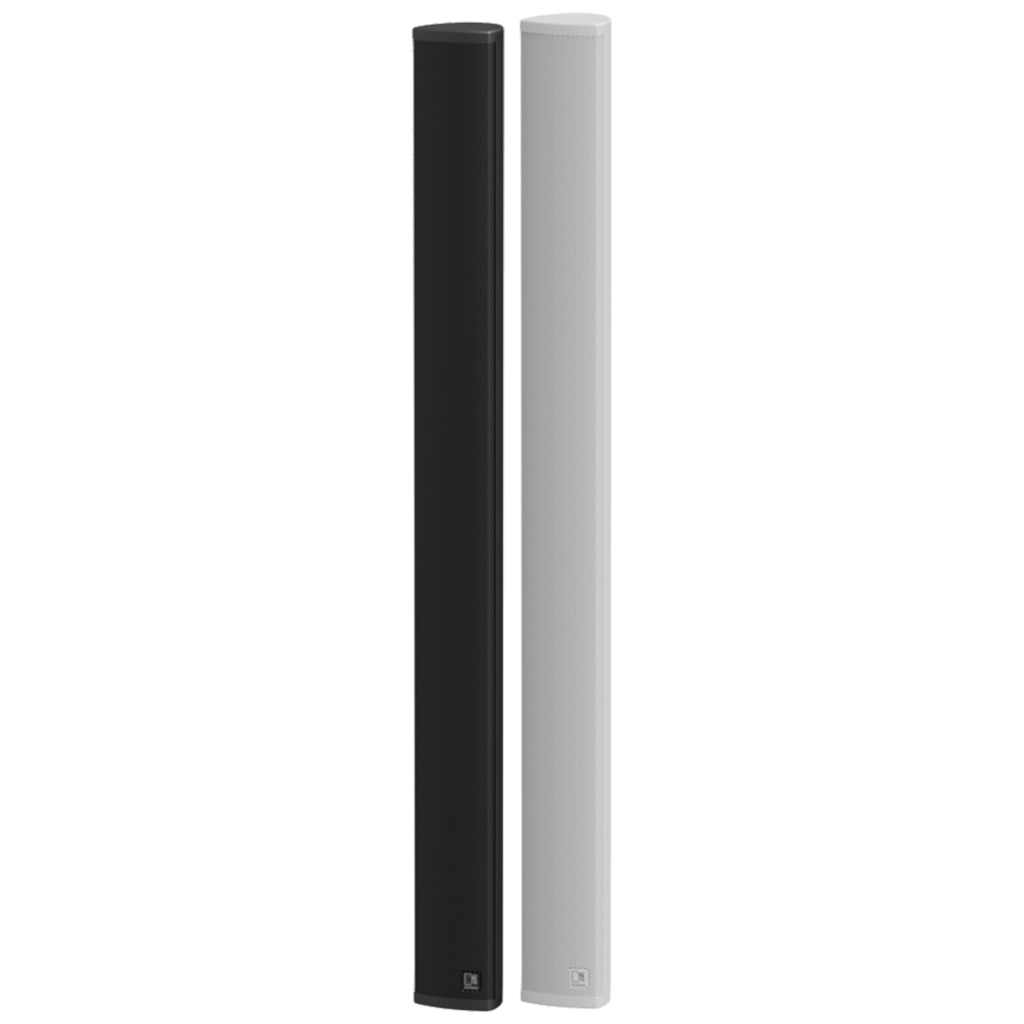

Available models

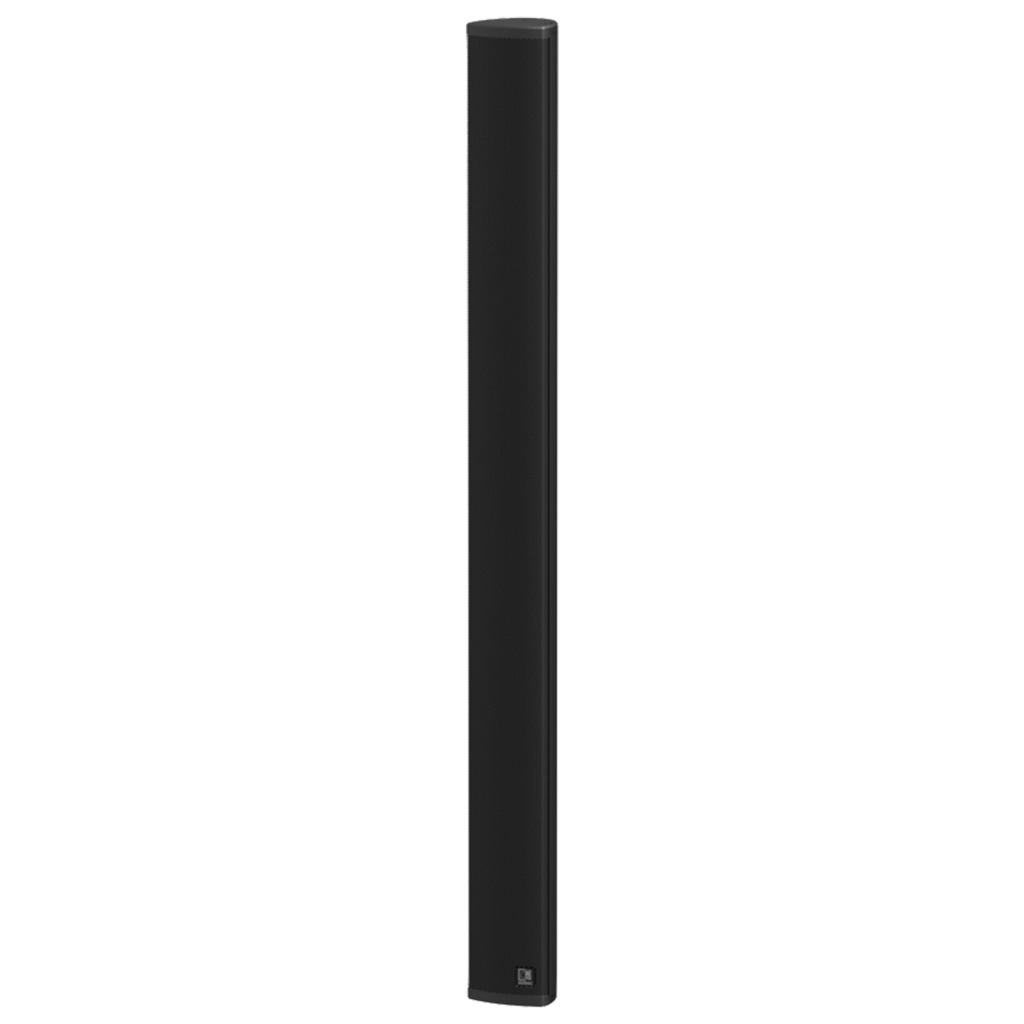

| LINO10/B | Black version |

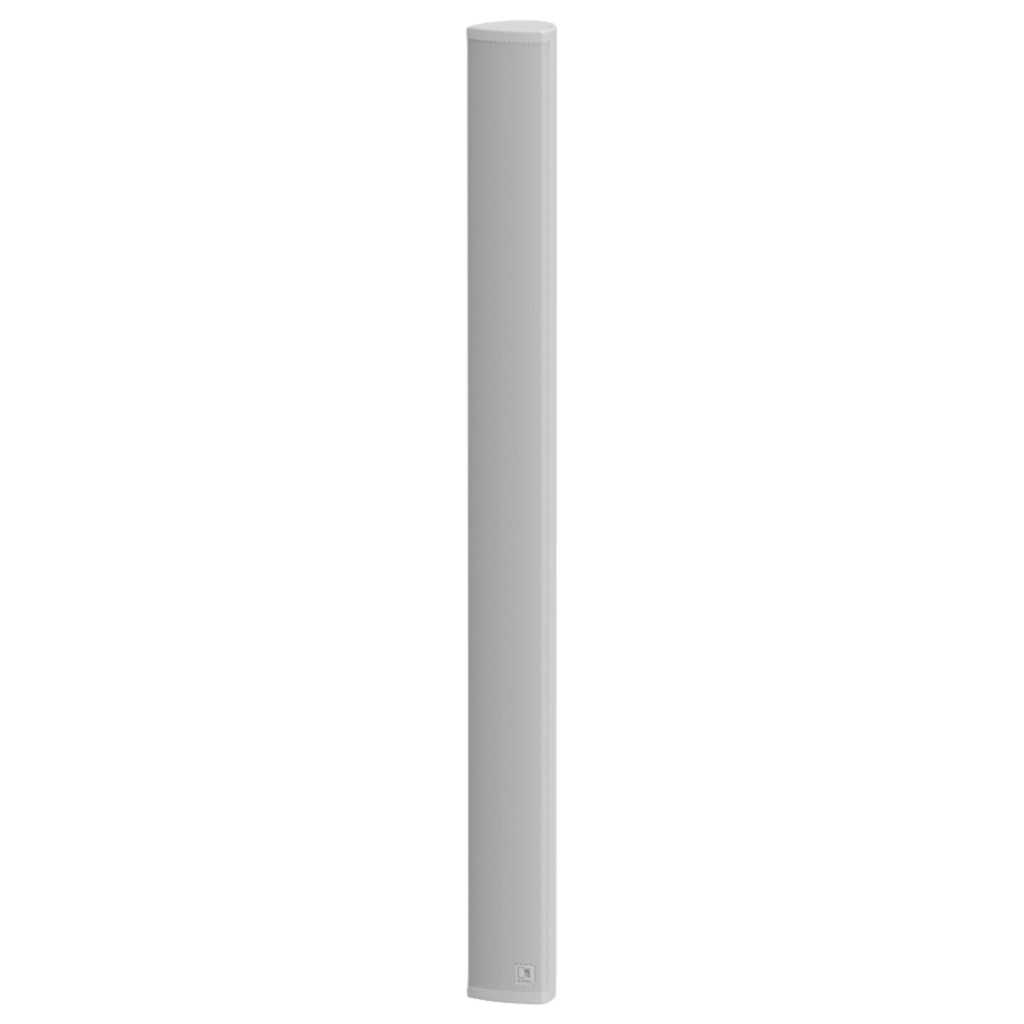

| LINO10/W | White version |
System specifications
| RMS/AES power handling | 40 W | |
| Peak power handling | 160 W | |
| Program power handling | 80 W | |
| Impedance | 20 Ω | |
| Sensitivity (1W/1m) | 90 dB | |
| Sound Pressure (Max. W/1m) | 107 dB | |
| Frequency | Range (-10 dB) | 120 Hz – 20 kHz |
| Response (± 3 dB) | 170 Hz – 15 kHz | |

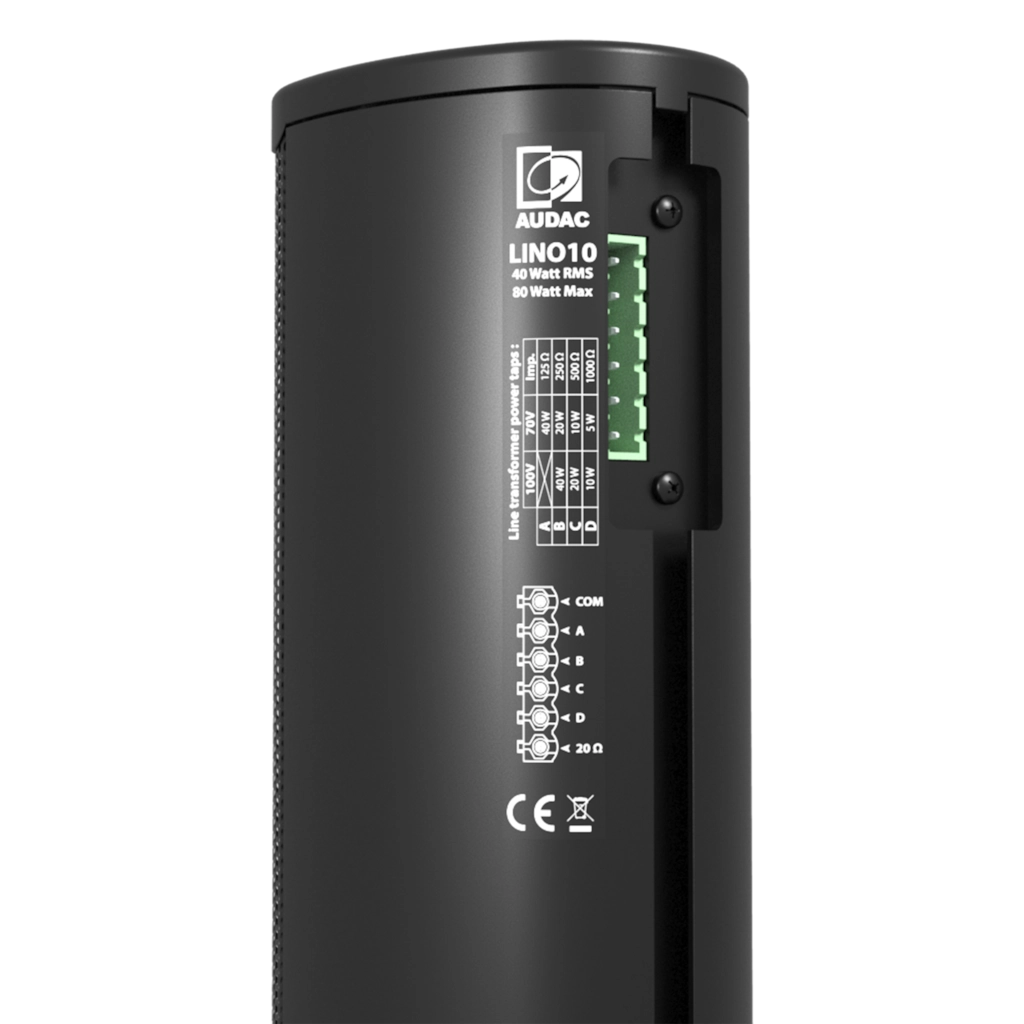

| Line Transformer Tappings | 1 | 125 Ω – 100 V / Not used – 70 V / 40 W |
| 2 | 250 Ω – 100 V / 40 W – 70 V / 20 W | |
| 3 | 500 Ω – 100 V / 20 W – 70 V / 10 W | |
| 4 | 1000 Ω – 100 V / 10 W – 70 V / 5 W | |
| Drivers | 10 x 2” | |
| HF | 1” | |
| Connectors | 6-pin Euro Terminal Block | |
| Temperature | Operating | -20 – 50 °C |
| Dispersion | Horizontal | 160° (-6 dB avg 1 kHz – 4 kHz) |
| Vertical | 15° (-6 dB avg 1 kHz – 4 kHz) | |
| Ingress Protection rating | IP3x | |
Product Features
| Colours | Black & White | |
| Construction | Aluminum | |
| Front finish | Aluminium grill | |
| Dimensions | 72 x 796 x 68.3 mm (W x H x D) | |
| Weight | 3.7 kg | |
| Accessories | Included | 1 x 6-pin Euro Terminal Block Input connectors |

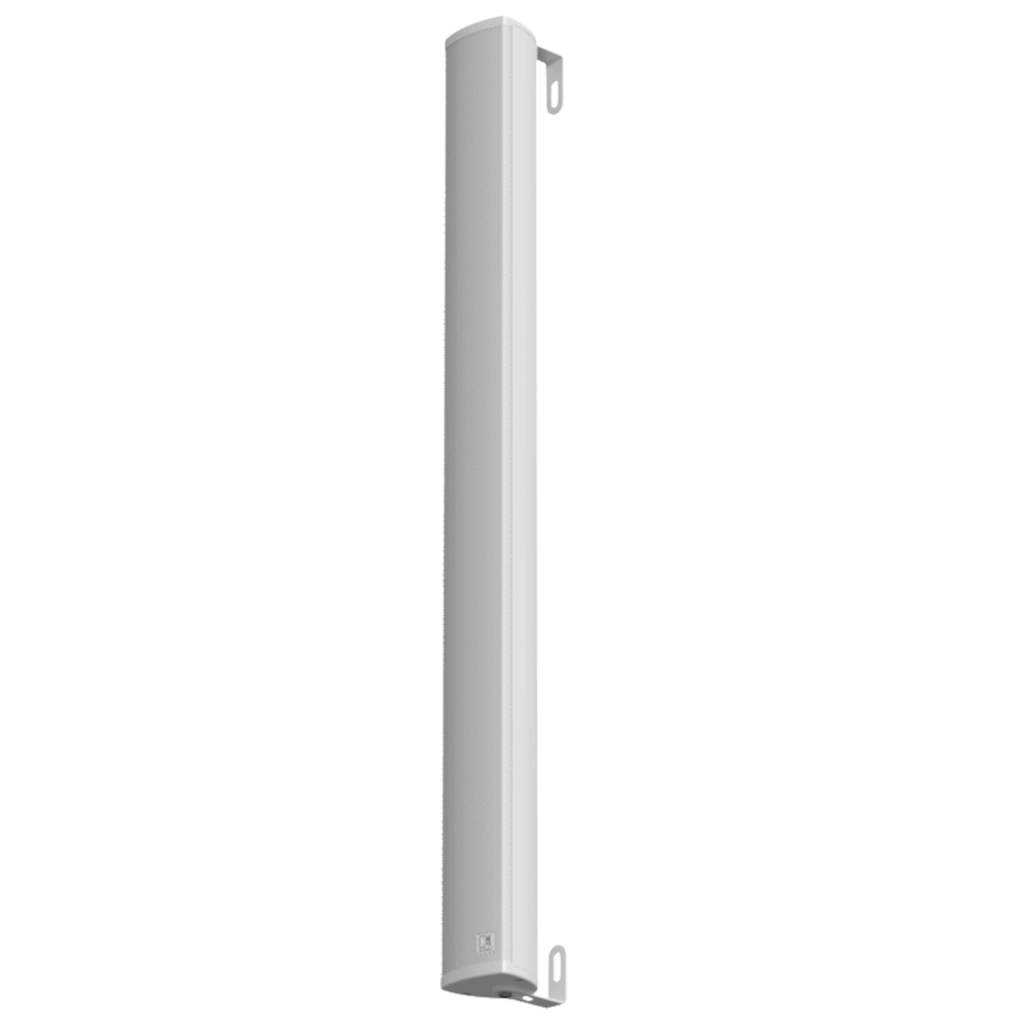

| Mounting bracket | ||
Recommended applications
|
Education
|
|
Corporate
|
|
Houses of worship
|
