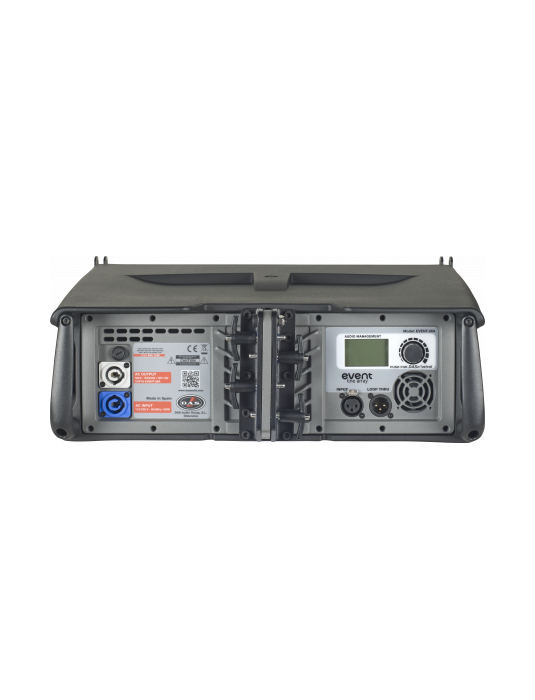

EVENT-26A

Features

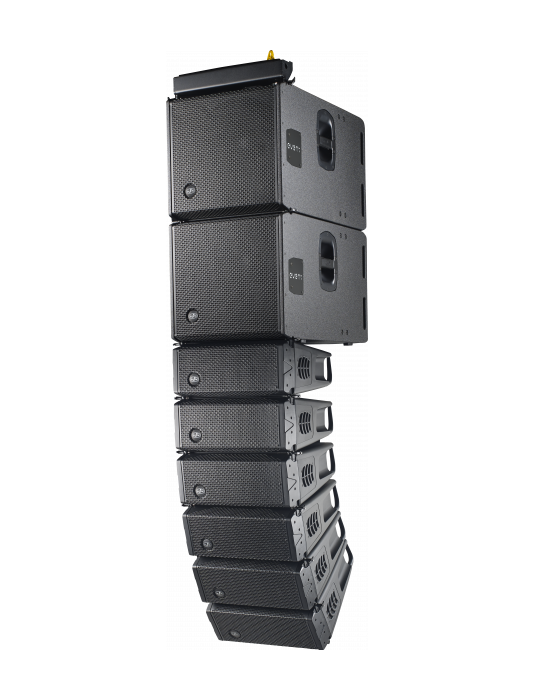

Ultra-compact, lightweight powered line array
High-efficiency Class D amplifier with SMPS
Dual voltage mains for use anywhere in the world
Easy system configuration thanks to DAScontrol^TM
High-end 24-bit DSP with LCD screen
FIR processing for constant phase response
FSS^TM Fast Set Splay rigging for quick deployment

Applications

House of worship
Theatres, auditoria and performing arts centers
Live music clubs
Corporate A/V
Live sound touring/Rental services

Performance
Frequency Range (-10 dB)	76 Hz – 19 kHz
Horizontal Coverage (-6 dB)	100º
Vertical Coverage	Splay Dependent
Maximum Peak SPL at 1 m	131 dB

Electronics and Connectors
Nominal Amplifier Power (continuous)	400 W
Nominal Amplifier Power (peak)	800 W
Input Type	Balanced
Input Impeadance	20 kohms
Input Sensitivity	6.2 V (+18 dBu)
Audio Signal Input Connector	1 x Female XLR
Audio Signal Loop Thru Connector	1 x Male XLR
AC Output Connector	powerCON NAC3MPB
Current Draw 230 V / 115 V	0.8 A/1.6 A
Enclosure
Enclosure Construction	Polypropylene
Enclosure Geometry	Trapezoidal
Rigging	Captive Rigging System
Color	Black
Dimensions ( H x W x D )	225 x 480 x 500 mm 8,9 x 18,9 x 19,1 in
Net Weight	16,5 kg ( 36,4 lb )
Components
LF Driver	6MI
HF Driver	M-60
Shipping
Carton Dimensions ( H x W x D )	565 x 565 x 290 mm 22,2 x 22,2 x 11,4 in
Shipping Weight	20,0 kg ( 44,0 lb )
