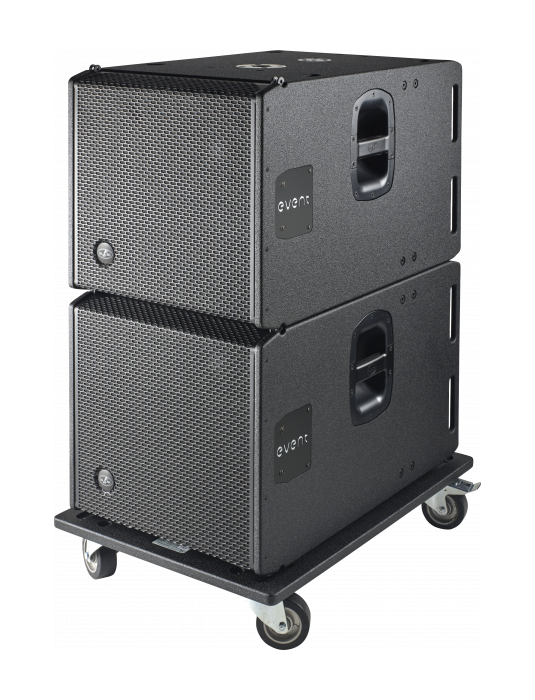

EVENT-115A

Features

Active front-loaded subwoofer system
1 x 15″ DAS 15FW4 loudspeaker
High-efficiency Class D amplifier with SMPS
Dual voltage mains for use anywhere in the world
Easy system configuration thanks to DAScontrol^TM
High-end 24-bit DSP with LCD screen
EVENT-26A compatible rigging hardware

Applications

House of worship
Theatres, auditoria and performing arts centers
Live music clubs
Corporate A/V
Live sound touring/Rental services

Performance
Frequency Range (-10 dB)	40 Hz – 125 Hz
Maximum Peak SPL at 1 m	131 dB

Electronics and Connectors
Nominal Amplifier Power (continuous)	600 W
Nominal Amplifier Power (peak)	1200 W
Input Type	Balanced
Input Impeadance	20 kohms
Input Sensitivity	1.95 V (+8 dBu)
Audio Signal Input Connector	2 x Female XLR
Audio Signal Loop Thru Connector	2 x Male XLR
Control	DAScontrol™
AC Output Connector	powerCON NAC3MPB
Current Draw 230 V / 115 V	1.4 A/2.8 A
Enclosure
Enclosure Construction	Birch Plywood
Enclosure Geometry	Rectangular
Rigging	Captive Rigging System
Finish	ISO-flex Paint
Color	Black
Dimensions ( H x W x D )	480 x 485 x 765 mm 18,9 x 19,1 x 30,3 in
Net Weight	37,0 kg ( 81,5 lb )
Components
LF Driver	15FW4
Shipping
Carton Dimensions ( H x W x D )	530 x 550 x 860 mm 20,9 x 21,7 x 33,9 in
Shipping Weight	40,5 kg ( 89,1 lb )
