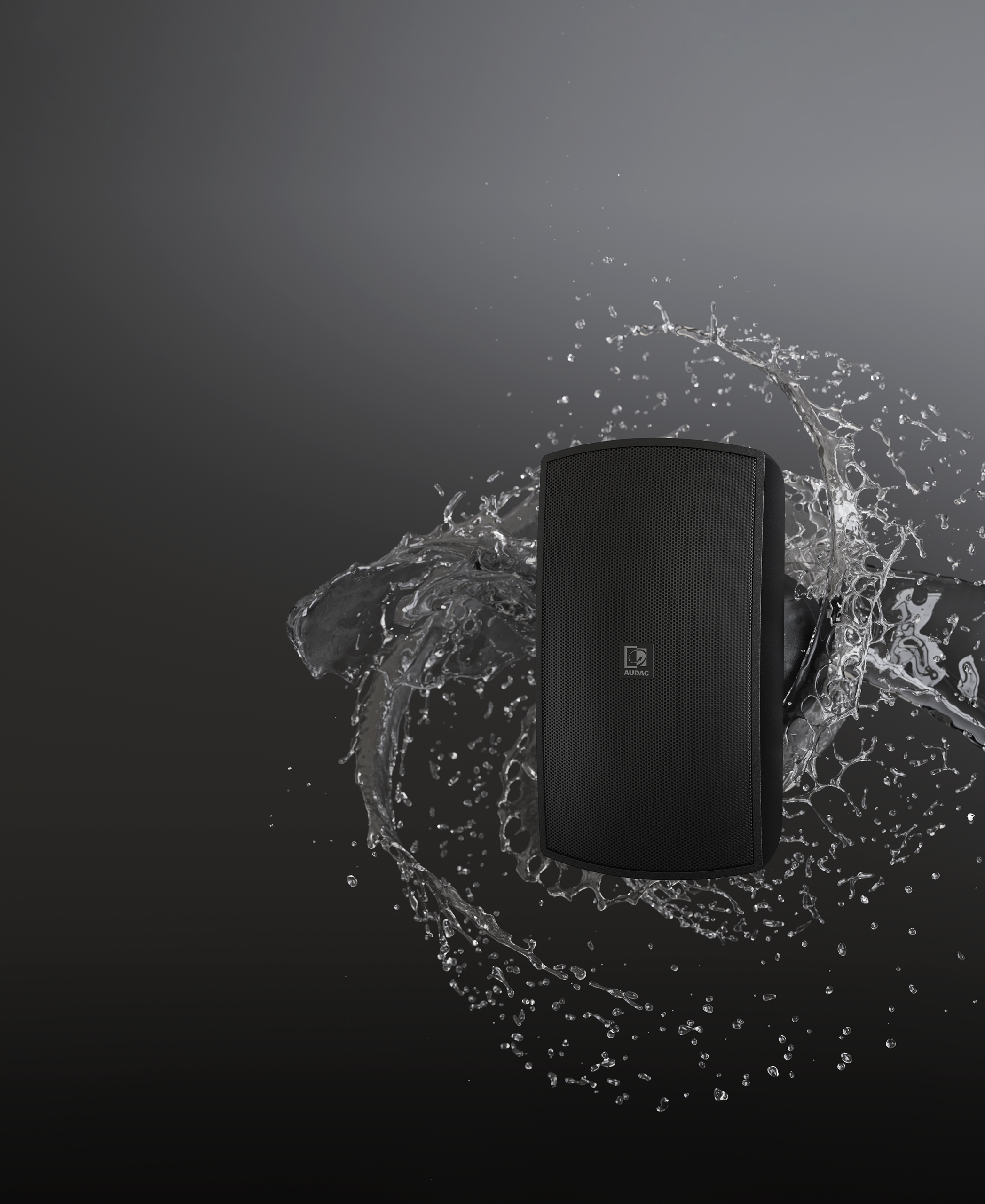

ATEO6M

In & outdoor surface mount loudspeaker with CleverMount+™

Ultra-flat frequency response
Weatherproof – IP66 rating
Hydrophobic cloth behind aluminum grill
Unmatched sonic brilliance
720 Hours salt spray test
Marine grade build quality & UV resistant
Save up to 50% installation time thanks to CleverMount™+
External power tap selection
Screwless WAGO connections for quick & safe connection with linktrough up to 4mm²
No wires or bracket visible from the back
Extremely firm fixation from front, allowing swift and accurate inclination
Optional mounts for inclination angle or light track mounting

Available models

System specifications

Speaker type		Full range
Peak power handling		240 W
Program power handling		120 W
RMS/AES power handling		60 W
Impedance		8 Ω (ATEO6M)
		16 Ω (ATEO6DM)
Incline angle	Left	30°
	Right	30°
	Bottom	30°
	Top	5°
Sensitivity (1W/1m)		89 dB
Sound Pressure (Max. W/1m)	@ 8 Ω	106 dB
	@ 100 V	105 dB
Frequency	Response (± 3 dB)	65 Hz – 20 kHz
	Range (-10 dB)	55 Hz – 20 kHz
Dispersion	Horizontal	120°
	Vertical	120°
Connectors		2 x WAGO terminal block connections
Drivers		1” Dome tweeter
		6” MF / LF Woofer
Line Transformer Tappings	1	100 Ω – 100 V / Not used – 70 V / 50 W
	2	200 Ω – 100 V / 50 W – 70 V / 25 W
	3	400 Ω – 100 V / 25 W – 70 V / 12.5 W
	4	800 Ω – 100 V / 12.5 W – 70 V / 6.25 W
Ingress Protection rating		IP66

Product Features

Dimensions		193.1 x 347.5 x 215.2 mm (W x H x D)
Weight		3.820 kg
Operating temperature		-20 °C ~ 60 °C
Accessories	Included	Allen-key wrench
Mounting		Weatherproof CleverMount+™
Construction		ABS
Front finish		Aluminium grill with hydrophobic cloth
Colours		Black (RAL9005) (ATEO6M/B, ATEO6DM/B)
		White (RAL9003) (ATEO6M/W, ATEO6DM/W)

Recommended applications

Bars & Restaurants

Retail

Education

Hotels

Corporate

Residential

Clubs
