| Output Power（1kHz 20ms Burst THD+N=1%） | 8Ω Stereo | 4x130W |
| 4Ω Stereo | 4x260W | |
| 8Ω Bridge | 2x520W | |
| Hi-Z(70V) | 2x520W | |
| Hi-Z(100V) | 2x520W | |
| Protection System | DC protection / Short circuit protection / Smart overheat management / Overheat protection / Input overload protection /Output overload protection / Soft startup protection / Limiter protection | |
| Working mode | Stereo,Parallel,Bridge,70V/100V | |
| Input Connectors | 2×6-pin Euroblock（3.81mm） | |
| Output Connectors | 2×4-pin Euroblock（5.08mm） | |
| Input Impedance | ≥20kΩ（Balanced），≥10kΩ（Unbalanced） | |
| Maximum input voltage | ≥15dBu | |
| Gain | Stereo：26dB； Bridge：32dB； 70V：34dB； 100V：37dB | |
| Frequency response(1W 8Ω stereo) | 20Hz-20kHz（±0.5dB） | |
| Crosstalk(1kHz, Rated power 8Ω, A weighted) | ≥70dB | |
| S/N Ratio(Rated power 8Ω, A weighted) | ≥100dB | |
| Damping Factor (1kHz&8Ω) | ≥200 | |
| Intermodulation Distortion(60Hz:7kHz=4:1, half power) | ≤0.05% | |
| Total Harmonic Distortion(1kHz, half power 8Ω, A weighted) | ≤0.05% | |
| Amplifier Type (Output Circuitry) | Class-D | |
| AC Power | 100-240V(±10%，50-60Hz) | |
| Power consumption（1/8 output power） | 160W | |
| Rack space | 1U design and half 19” rack space enclosure | |
| Cooling | Back to front venting,mandatory cooling | |
| Dimension(W×H×D) | 218×44×314mm | |
| Net Weight | 3.2kg | |

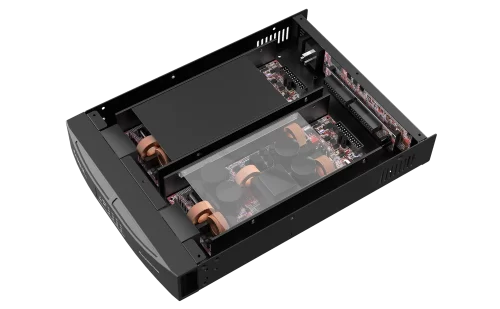

Artist T4.4V
Class D amplifier
Artist T4.4V is 4 channel Class D amplifier for commercial audio installation.
