Available models

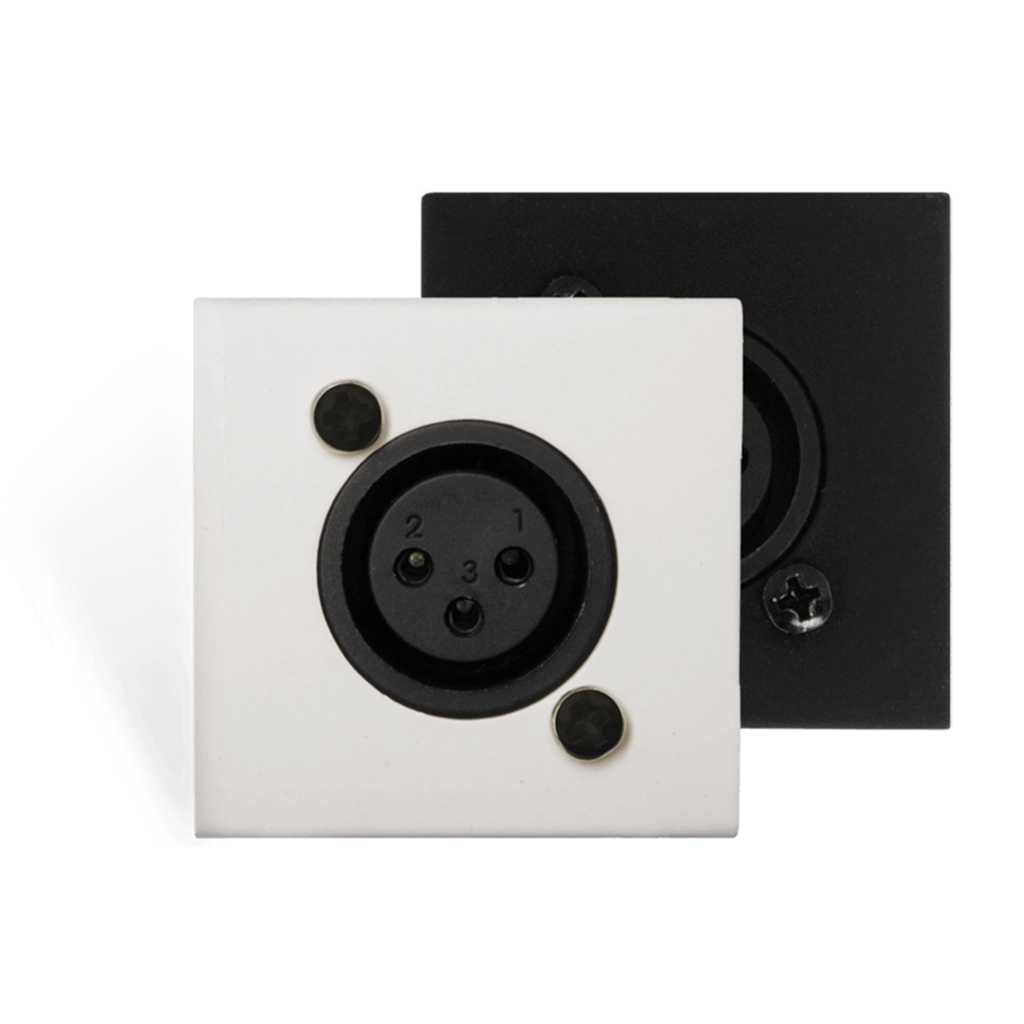

| WMI18/W | Wall microphone input unit (45 x 45 mm) |
System specifications
| Inputs | Connector | XLR female connector |
| Outputs | Type | 4-pin Euro Terminal Block (Pitch – 3.81 mm) |
| Signal | Mono audio transfer | |
| Level | Differential with increased Voltage levels | |
| Cabling | UTP CAT5E (or better) | |
| Max. cable length | 300 m | |
| Power | Consumption | 0.95 W – 40 mA / 24 V |
| Phantom Power | 12 V DC | |
Product Features
| Dimensions | 45 x 45 x 50 mm (W x H x D) | |
| Construction | ABS | |
| Mounting | 45 x 45 mm | |
| Colours | Black (RAL9005) (WMI18/B) | |
| White (RAL9010) (WMI18/W) | ||
| Accessories | Optional | CP45CF1 Cover frame |
| CP45CF2 Cover frame | ||
Recommended applications
|
Bars & Restaurants
|
|
Retail
|
|
Hotels
|
|
Corporate
|
|
Residential
|
