| Type | Active DSP-controlled full range loudspeaker |
| Frequency Response(-10dB) | 48Hz-20kHz |
| Horizontal Coverage | 60° |
| Vertical Coverage | 40° |
| Maximum Calculated SPL/1M (Continuous/Peak) | 126dB/132dB |
| HF Driver | Customized driver, 1.75” voice coil and 1.0”exit |
| LF Driver | Customized 12” driver, 2.5” voice coil |
| DSP | |
| Processor | 48kHz signal sampling frequency |
| AMPLIFIER | |
| Amplifier Circuitry | Class D |
| Power (RMS standards) | 800W |
| Peak Power | 1600W |
| Frequency Response(1W 8Ω 2ch) | 20Hz-20kHz(±0.5dB) |
| Intermodulation Distortion | ＜0.05% |
| Total Harmonic Distortion | ＜0.05% |
| Cooling System | Cooling with fans, air convection |
| Protection | DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection |
| Signal Input | 1x female XLR(Mono jack 6.35), 1x Mono jack 6.35, 1x RCA, 1x wireless bluetooth |
| Signal Output | 1× male XLR |
| Power Input | IEC power connector |
| Working Voltage | 100-240V~ (±10%,50/60Hz） |
| Power consumption (1/8 output power) | 55W |
| CABINET | |
| Cabinet Material | CNC machined plywood |
| Cabinet Color | Black is the default color. Contact Audiocenter for customization |
| Grille | Iron mesh |
| Handles | 2 side |
| Monitor Angle | Symmetrical 45° monitoring Angle |
| Hanging Hardwares | M8 screw |
| Pole Mount | Base hole Φ35mm |
| Speaker Dimension (W×H×D) | 356×608×372mm |
| Carton Dimension (W×H×D) | 442×703×458mm |
| Net Weight | 20.0kg |
| Shipping Weight | 22.0kg |
SA312
Active DSP-controlled full range loudspeaker

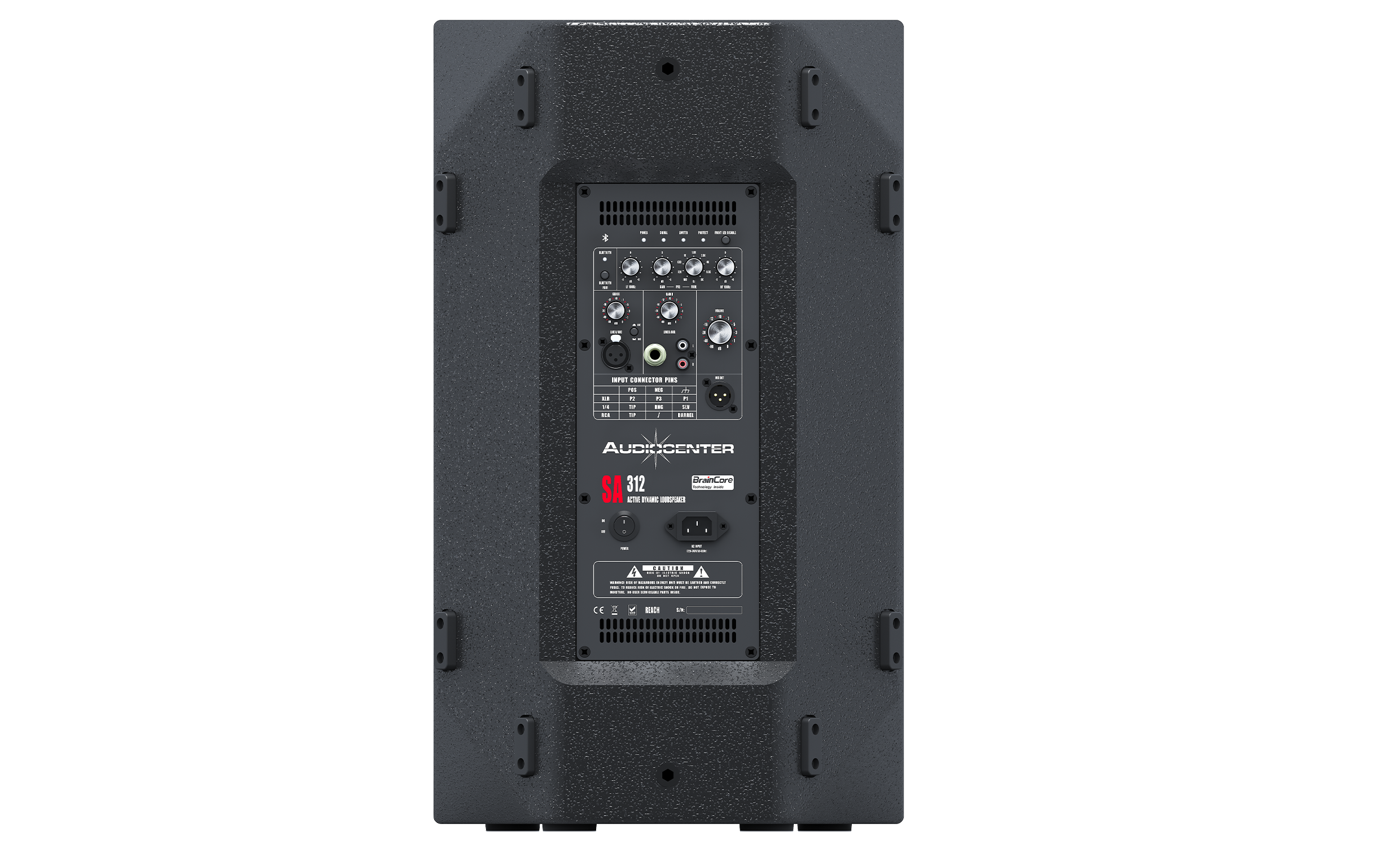

Two combo inputs CH A (1-way XLR and Mono jack 6.35) are available in SA312, which can be switched between line input and microphone input.
Description
Reviews (0)
Shipping & Delivery
Related products
K-LA212-DSP
Dual 12” two-way active DSP controlled line array loudspeaker
K-LA212-DSP is an active DSP-controlled line array loudspeaker. It can be compared to three-way systems for the sound performance, and with more compact size and lighter weight, K-LA212-DSP has more advantages for easier handling and transportation.
