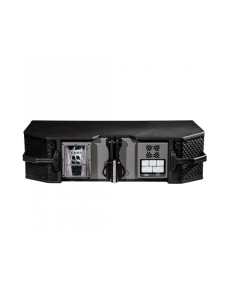

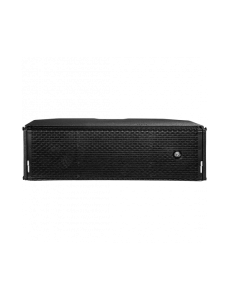

LARA-100

Features

Self-powered cardioid Line array
8 channel amplifier, Class D, 6000W_rmsControlled horizontal dispersion up to 100 Hz.
Cardioid attenuation of -15dB (63 Hz – 200 Hz)
IP control and monitoring through ALMA™
FIR processing and digital management via DASaim™

Applications

Outdoor festivals and live concerts
Theatres, auditoria and performing arts centers
Large live music clubs
Live sound touring/Rental services

Performance
Frequency Range (-10 dB)	63 Hz – 17 kHz
Horizontal Coverage (-6 dB)	100º
Vertical Coverage	Splay Dependent
Maximum Linear SPL¹	146 dB
Maximum SPL²	150 dB
1. Measured Maximum Linear SPL at 1m according to AES75 standard using 18dB crest factor M-Noise. 2. Measured Maximum SPL at 1m using burst noise.
Electronics and Connectors
Nominal Amplifier Power (continuous)	6000 W
Input Type	Balanced Analog
Input Impeadance	20 kohms
Input Sensitivity	6.2 V (+18 dBu)
Audio Signal Input Connector	1 x Female XLR
Audio Signal Loop Thru Connector	1 x Male XLR
Audio/Data Input Connector	etherCON
Control	ALMA
Audio + Data Loop Thru Connector	etherCON
AC Output Connector	powerCON TRUE1
Current Draw 230 V / 115 V	7.5 A/15 A
Sampling Rate	96kHz
Enclosure
Enclosure Construction	Birch Plywood
Enclosure Geometry	Trapezoidal 7º
Rigging	Captive Rigging System
Finish	ISO-flex Paint
Color	Black
IP Rating	IP43
Dimensions ( H x W x D )	355 x 1.170 x 645 mm 14,0 x 46,0 x 25,4 in
Net Weight	86,0 kg ( 189,6 lb )
Components
LF Driver	12GXNC
MF Driver	8MXN
LF Cardioid Driver	8GXN
HF Driver	M-78N
